  • Page 1 SNOW BLOWER RURIS PARANG 604...

  • Page 2: Table Of Contents

    CONTENT 1. Introduction ..................3 2. Warnings ...................4 2.1 Warnings on the machine ................... 4 3. General presentation of the machine ..........5 4. Safe operation ..................6 5. Safe operation ..................7 6. Assembly ..................9 7. Controls and Features ..............14 8. Handling the snowblower............... 15 8.1 Before starting the engine ................

  • Page 3: Introduction

    1. INTRODUCTION Dear Client! Thank you for your decision to purchase a RURIS product and for your trust in our company! RURIS has been on the market since 1993 and during all this time it has become a strong brand, which has built its reputation by keeping promises, but also by continuous investments aimed at helping customers with reliable, efficient and quality solutions.

  • Page 4: Warnings

    2. WARNINGS 2.1 WARNINGS ON THE MACHINE WARNING: Hot surface. Do not touch! Wear eye and ear protection! Read the instruction manual! Warning! Careful! Beware of ricocheting objects! Do not use the machine near fire! Protect your body from contact with the cutters! Do not put your hand in the gutter! Use protective equipment!

  • Page 5: General Presentation Of The Machine

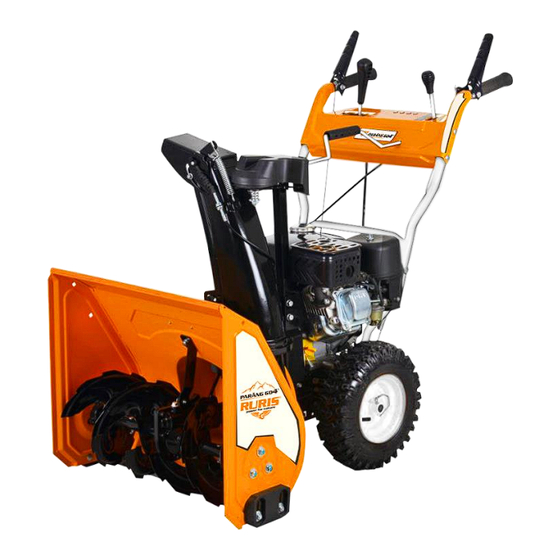

    3. GENERAL PRESENTATION OF THE MACHINE Travel speed control lever Cutter activation lever Discharge angle control lever Chute control lever Transmission activation lever Air filter trough Fuel tank cap carburettor 10. Muffler 11. Transport wheel 12. vat 13. Haircut...

  • Page 6: Safe Operation

    4. SAFE OPERATION DANGER : This machine was built to be operated according to the safety rules in this manual. Lack of equipment, carelessness or error on the part of the operator can lead to serious injury. This machine is capable of endangering your life and throwing objects.

  • Page 7: Safe Operation

    Carefully inspect the area where the equipment will be used. Remove all foreign objects that could trip you over or be thrown by the cutter. Wear protective equipment during operation and when making any adjustments or repairs to protect yourself. Thrown objects that ricochet can cause serious injury. Do not use the equipment if you are not wearing appropriate winter clothing.
  • Page 8 Use only accessories and spare parts approved by the manufacturer. (ex: wheels, cables, etc.). Never touch a hot engine. If your situation is not covered in this manual, contact an authorized RURIS service for assistance.

  • Page 9: Assembly

    CAREFUL! -The use of the snowblower is recommended when the snow layer is fresh and loose. - DO NOT use the upper speed gear if the snow cover is large and the cutter does not face the exhaust. The speed must be adapted according to the height of the snow cover. If the blower forces and pushes the snow instead of throwing it, then the friction piece that drives the wheels will wear out prematurely.
  • Page 10 • Mount the wheels, fixing them with the bolts on the axle. • Mount the upper part of the horns, fixing in the clamping screws.
  • Page 11 • Connect the cutter and wheel drive cables. • Install the exhaust chute, securing it to the mounting screws on the mechanical frame.
  • Page 12 • Install the chute control lever. • Connect the exhaust chute angle control cable. • The shifter rod is connected.
  • Page 13 • Mount the control lever handles.

  • Page 14: Controls And Features

    7. CONTROLS AND FEATURES Snow thrower gear shifter: R1 1 2 3 4 Parang 604 The gear shifter is positioned between the machine's horns. Place the shifter in any of the (5) positions to control the direction of travel and speed.

  • Page 15: Handling The Snowblower

    8. HANDLING THE SNOWBLOWER Cutter control The cutter control lever is located on the right hand grip. operate control lever on handle to start _ rotating burs and start _ the action of throwing snow . Release to stop . _ Steering control The transmission activation lever is positioned _ on HANDLE FROM left _...

  • Page 16: Before Starting The Engine

    forbidden ENGINE and stay in the the back the horns until all _ components have stopped before of a clean up Cleaning tool _ the gutter is fixed on GUARD burs in the part UPPER with a set of clamps .

  • Page 17: Starting The Engine

    Fill with oil up to the HIGH mark. Use only oil recommended by the manufacturer. Use RURIS 4T WINTER GT SAE 10W-40 oil. Combustible CAUTION: Be careful when handling the fuel, it is highly flammable and the vapors are explosive. Never fuel the machine in an enclosed space, when the engine is running or near flammable objects.

  • Page 18: Snowblower Operation

    NOTE : Allow the engine to warm up for a few minutes after starting. The engine will not operate at full power until it reaches the optimum temperature. Stopping the engine To stop the engine, turn the switch to the OFF position. Keep the engine running for a few minutes before turning it off to remove any moisture from the engine.
  • Page 19 Reattach the cleaning tool with the retaining clip and start the engine. While in the operator position (behind the machine), engage the cutter control for a few seconds to clear any remaining snow or ice from the chute assembly. Setting the direction of travel and the speed. Place the gear shifter in one of the forward or reverse positions.

  • Page 20: Maintenance

    9. MAINTENANCE Caution : Before lubricating, repairing or inspecting, release all controls, stop engine. Wait until all moving parts have stopped completely . Pinion shaft The pinion shaft must be lubricated once a season or after every 25 hours of operation.
  • Page 21 Milling spindle At least once a season, remove the safety pins from the tiller shaft. Apply lubricant inside the spindle around the spacers. Also lubricate the clamps at each end on the shaft. See Fig. 8. Fig. 8 reducer The cutter gear was filled with petroleum jelly. Before use, unscrew the power plug and insert approx.
  • Page 22 To remove and replace the snow blower drive belt, proceed as follows: Fig. 10 Remove the belt cover from the front of the engine by removing the two screws. See Fig. Carefully tilt the machine forward to rest on the cutter housing. Remove the cover from the bottom of the machine by removing the 4 sheet metal screws that secure it.
  • Page 23 Fig.12 Fig.13 Fig.14 NOTE : Remember to reinstall the step screw and reconnect the spring to the housing after installing a replacement belt. cutters ●The cutter is attached to the spiral spindle with two safety pins and a cotter pin. If the cutter hits a foreign object or ice build-up, the thrower is designed so that the pins rotate.
  • Page 24 • Remove and replace the belt in reverse order. Fig. 17 Fig. 18 Removing the friction wheel If the machine does not operate with the steering lever engaged and adjusting the steering control cable does not correct this problem, the friction wheel may need to be replaced.
  • Page 25 Repeat the process a few times to secure the plates with equal force. Attach the friction wheel back to the hex shaft and follow the above steps in reverse order to reassemble the components. This operation is performed in an authorized RURIS service.
  • Page 26 Engine oil check Unscrew the oil tank cap from the oil supply tube and clean the dipstick. See Fig. 2. 3. Put the cap back and secure it. Undo and remove the oil tank cap from the feed tube. Fig. 23 Check the oil level.
  • Page 27 Reattach the spark plug and secure it. carburettor If a carburetor adjustment is required, contact an authorized RURIS service. Engine performance should not be affected at altitudes up to 2134 m. For operation at higher altitudes, contact an authorized RURIS service.

  • Page 28: Service And Adjustment

    CAUTION : DO NOT modify the engine in any way. Altering factory settings may result in unsafe engine operation. 10. SERVICE AND ADJUSTMENT After a long period of use or when the belts are adjusted or replaced, the control cables should be adjusted as in Fig.

  • Page 29: Storage

    Tire pressure Before operation, check the pressure and adjust it between 1.5 and 2.0 bar. If the pressure is not equal in both tires, the equipment could pull in a direction other than intended. 11. STORAGE CAUTION : Never store the machine containing fuel in a poorly ventilated room where fuel vapors could reach an open flame, sparks.

  • Page 30: Technical Data

    12. TECHNICAL DATA Product name Parang 604 Motor Loncin Duty cycle 4 times Engine power 5.5 hp Cilindrical capacity 196 cc Oil bath capacity 0.6l Transmission Friction disc Ignition system Electronic Starting Manual Heated handles lighthouse Combustible Unleaded gasoline Tank capacity 3.6l...

  • Page 31: Declarations Of Conformity

    Start : Manual We, SC RURIS IMPEX SRL Craiova, producer , in in accordance with GD 1029/2008 - regarding conditions the introduction of machines on the market , Directive 2006/42/EC – machines ; safety requirements _ and security , Standard EN ISO 12100:2010 – Machinery.
  • Page 32 SR ISO 45001:2018 - Occupational Health and Safety Management System. MARKING AND LABELING OF ENGINES Spark ignition gasoline engines received and used on RURIS equipment and machines, according to EU Regulation 2016/1628 (amended by EU Regulation 2018/989) and HG 467/2018 are marked with: - Manufacturer's brand and name: ZKM&E Co.ltd .
  • Page 33 24.05.2021 in accordance with the provisions of Directive 2000/14/CE amended by Directive 2005/88/CE and SR EN ISO 3744:2011 We, SC RURIS IMPEX SRL Craiova as a manufacturer, in accordance with Directive 2000/14/EC (amended by Directive 2005/88/EC), HG 1756/2006 - on limiting the level of noise...
