OPERATION MANUAL FOR CHARGE STATION
MYCS-ID70+
MYCS-ID50+
ANLIDAR INDUSTRIAL CO., LTD.
http://www.anlidar.com
Y2F191-2E-001

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MYTORQ MYCS-ID70+ and is the answer not in the manual?

Questions and answers

Summary of Contents for ANLIDAR MYTORQ MYCS-ID70+

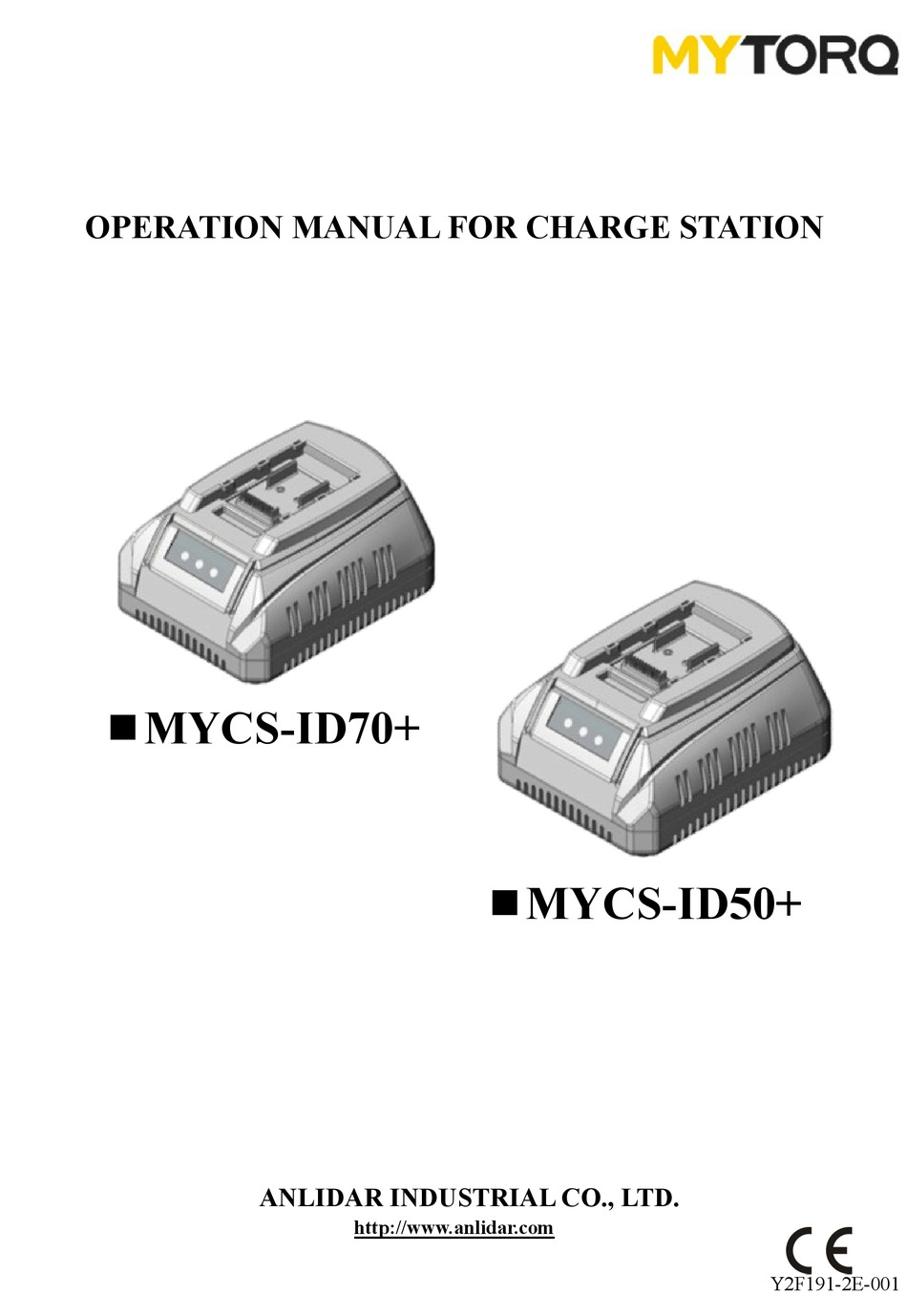

  • Page 1 OPERATION MANUAL FOR CHARGE STATION MYCS-ID70+ MYCS-ID50+ ANLIDAR INDUSTRIAL CO., LTD. http://www.anlidar.com Y2F191-2E-001...

  • Page 2: Icon Explanation

    Icon Explanation Read manual Caution Double insulation Indoor use only No humidity No fire No disassemble No disposal CE Certification ETL Certification Caution Please read all instructions carefully before operate the rechargeable battery and charger. Also please follow all the instructions and pay attention to all the warring. Important Notification Please operate under the correct voltage to the charger in according with the operation manual.
  • Page 3 Caution 1. Please match the correct Lithium-ion rechargeable battery for this charger, which is only manufacture by Kilews. Do not apply different type or brand of battery on this charger, otherwise may cause error or danger 2. Please match the charger with the battery models The use of other than genuine KILEWS replacement parts or battery may result in decreased tool performance and increased maintenance, and may invalidate all warranties.

  • Page 4: Display Description

    Charger stand 1 pcs Power cord 1 pcs Contents Operation manual 1 pcs Warranty certification 1 pcs Caution: Protection Functions 1. Over charged protection 2. Current protection 3. Shortage protection (fuse implement) 4. Battery reverse current protection 5. MYCS-ID70+/ MYCS-ID50+ Built-in ID recognition feature protection 6.

  • Page 5: Specification

    Specification Charger Station Model MYCS-ID70+ MYCS-ID50+ Battery Identification Input Voltage 100V–240V / 50-60Hz / 1.1A 100V–240V / 50-60Hz / 1A Output Voltage 16.8VDC 12.6VDC Output Current W ＊ L ＊ H 145mm＊115mm＊80mm Dimension Weight 460g Battery Type Li-ion Applicable Battery SKC-LB1425 (14.4V) SKC-LB1025M (10.8V) Models...
  • Page 7 MYCS-ID50+ MYCS-ID70+ NO PARTS NO PARTS NAME-E PARTS NAME-C Q'ty NO PARTS NO PARTS NAME-E PARTS NAME-C Q'ty 1 AA50002 America Plug 美式電源線 1 AA50002 America Plug 美式電源線 AA50002-1 Australia Plug 澳式電源線 AA50002-1 Australia Plug 澳式電源線 AA50002-2 Europe Plug 歐式電源線 AA50002-2 Europe Plug 歐式電源線...

This manual is also suitable for:

Mytorq mycs-id50+
