Summary of Contents for SHOWTEC MAT-350 Line Array Tower V2

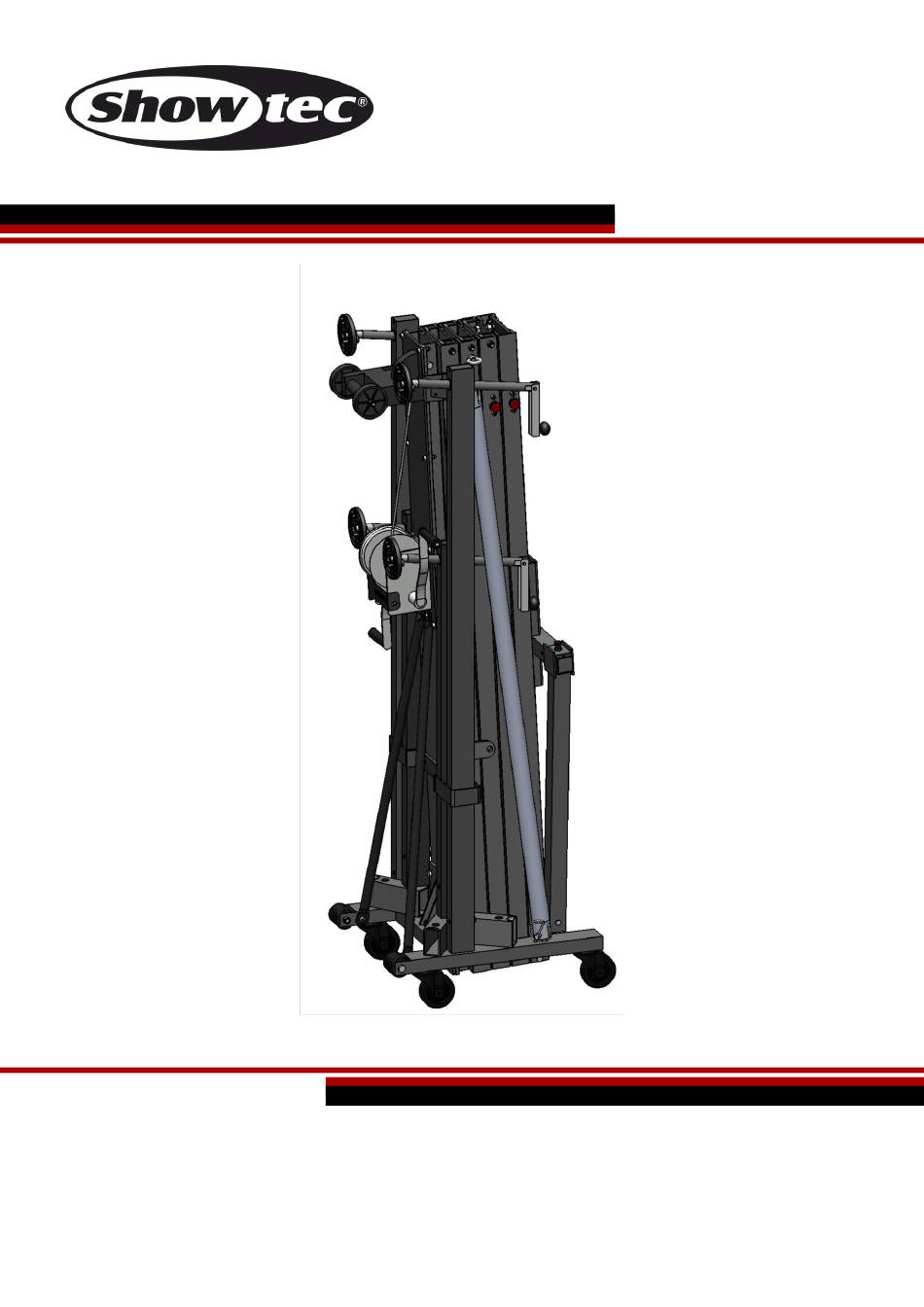

- Page 1 MANUAL ENGLISH MAT-350 Line Array Tower Ordercode: 70871 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
-
Page 2: Table Of Contents
MAT-350 Line Array Tower Table of contents Warning ....................................2 Safety Instructions ................................. 2 Rigging .................................... 4 Return Procedure ................................4 Claims ....................................4 Description of the device ..............................5 Overview ..................................5 Installation ................................... 6 Set Up and Operation ............................... 6 Winding Up .................................. -
Page 3: Warning
Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: ● Showtec MAT-350 Line Array Tower ● User manual Safety Instructions Every person involved with the installation, operation and maintenance of this device has to: ●... - Page 4 If device was dropped or struck. Have a qualified engineer inspect for safety before operating. ● If your Showtec device fails to work properly, discontinue the use immediately. Pack the unit securely (preferably in the original packing material), and return it to your Showtec dealer for service.
-
Page 5: Rigging
MAT-350 Line Array Tower Rigging Please follow the European and national guidelines concerning rigging, trussing and all other safety issues. Do not attempt the installation yourself ! Always let the installation be carried out by an authorized dealer ! Improper installation can cause serious injuries and/or damage of property! Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. -
Page 6: Description Of The Device
MAT-350 Line Array Tower Description of the device Features The Mammoth Series Stands are designed in the Netherlands and produced in Europe, ensuring the best price-performance ratio possible. All materials were carefully chosen to ensure a long lasting quality. ● Fixation of tower sections to working height by safety pins. -
Page 7: Installation
MAT-350 Line Array Tower 01) Two fixing side rings for attaching supporting cables in case of outdoor use. 02) Safety pin profiles 03) Support carriage 04) Forklifts 05) Transport support 06) Transport wheels 07) Winch handle 08) Outriggers 08a: Outrigger stabilizer 08b: Cranks 08c: Anchoring support 08d: Safety pins... -
Page 8: Elevating
MAT-350 Line Array Tower 07) To avoid accidents and dangerous situations, please follow the loading instructions (see fig.03). Place the load as close to the line array tower as possible. Fig. 03 Elevating 01) Turn the winch handle (07) clockwise to lift the load in the desired position. Make sure that the safety pins are in position (B) while lifting. -
Page 9: Lowering
Suspect three potential problem areas as: the winch handle, the steel cable, the forklifts. 01) The winch handle. Return the line array tower to your Showtec dealer. 02) The steel cable. Return the line array tower to your Showtec dealer. -
Page 10: Braking System Failure
● At least once a year, have the line array tower inspected by a professional, to eliminate any potential risks Product Specifications Model: Showtec MAT-350 Line Array Tower Maximum height: 6,5 m Maximum load @30 cm: 350 kg Maximum load @70 cm:... -
Page 11: Dimensions
MAT-350 Line Array Tower Dimensions Ordercode: 70871... - Page 12 ©2018 Showtec...
