spacer SPB-TOPPER User Manual

Features:

Compatible with A2DP, AVRCP
Hands-free
Three options for music playback: wireless BT,radio
FM,card microSD
Operating distance: max. 10m
Uptime: about 5 hr
Charge time: 2 hr
Dimensions: 60 x 60 x 50mm
Weight: 250g

Package contents

TOPPER wireless speaker, user manual, miniUSB charging cable
:

Operating instructions

Bluetooth playback mode

1.Slide the OFF button to the right side, you will hear the message "the device already ready to connect"(the device is ready for Bluetooth
connection).
2.Activate the Bluetooth function on the device from which you want to replay music (phone, tablet, etc.), look for the speaker in the device list
and connect.
3.Press the PLAY/PAUSE button to play/pause music.
4.Adjust the volume or skip to next/previous track with the help of the PLAY/PAUSE button by sliding it to the right, respectively to the left.
5.Short press the button to answer or close phone calls. The built in microphone allows for phone calls in hands-free state. The speaker will resume
music playback once the phone call is ended(if the audio source has not stopped or has exceeded Bluetooth range).

MicroSD playback mode

1.Turn on the speaker
2.Insert a microSD card (up to 32GB) in the dedicated port
3.During playback, press the Play/Pause button to play or stop the music
4. Slide the Play/Pause button to the right or left to increase or decrease the volume or change the desired track

AUX-IN Mode

1.Turn on the speaker by sliding the button to the right (MP3)

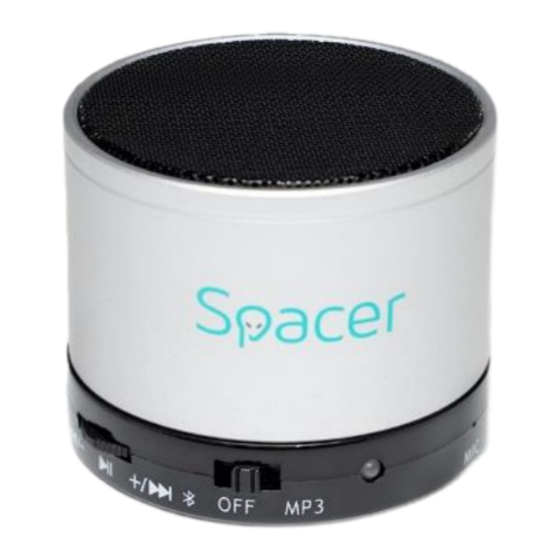

Wireless speaker
SPB-TOPPER
User manual

Technical details:

Speaker size:
Output Power RMS (W):
Impedance:
Frequency response:
Distortion
Battery capacity
Battery voltage
BT Version
Protection index
Φ45mm
3W
4 Ohm
180Hz – 16KHz
<5%
520mAh
5V
V4.2
IPx4
