interpret
Installation Guides
Section:
TABLES
Description:

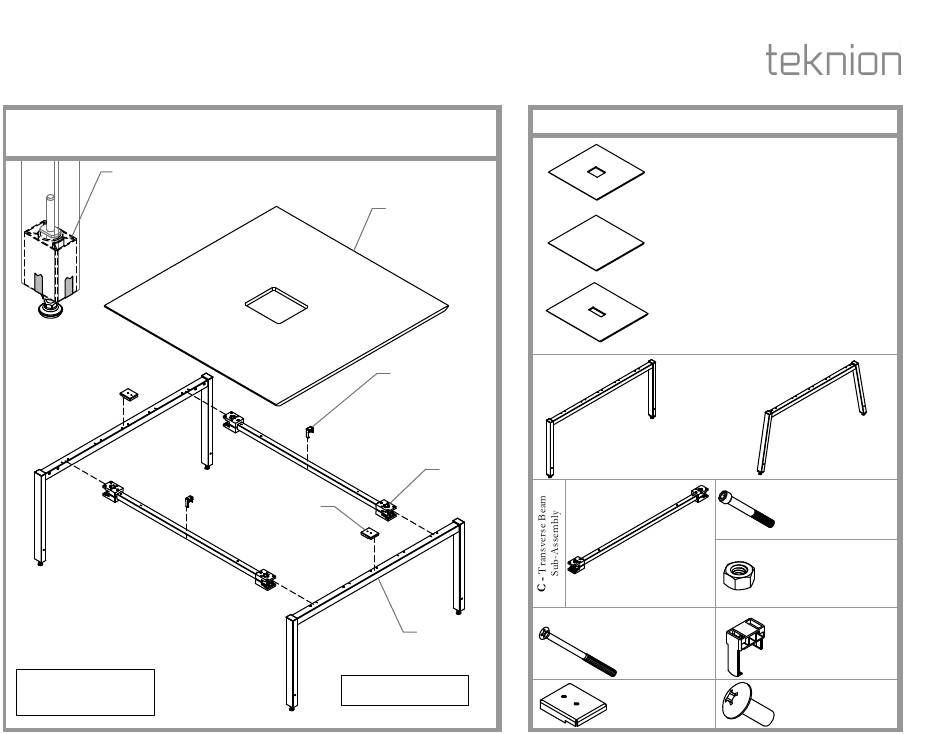

WORK TABLE 60" - 96" WIDTH
Work Table Straight Leg (WWTWKS)
Work Table Angled Leg (WWTWKA)
Leveler Cover is located inside Leg,
assembled and secured in place with tape.
Complete Table
Worksurface with cut-out
(WWTWKSC)
A
E
C
F
B
60" Straight Leg Frame
shown as example
Part and Product Identification
A - Worksurface for Complete
Table with Cut-out
(C05-7494) x 1
OR
Worksurface for Complete
Table without Cut-out
(C05-7493) x 1
OR
Worksurface for Complete
Table with CALA Cut-out
(C007-2683) x 1
OR
B - End Leg Assy
Straight
(N02-3686) x2
C1 - Transverse Beam
Sub-Assembly (N02-3688) x2
D - 1/4-20 x 3 -1/2
Flat Hd, Mach Sc.
(E01-0771) x4
F - Centre Spacer
(A16-1652) x2
Date:
Jan 2018
Page No:
1 of 6
INT_502a
Rev. No: 2
End Leg Assy
Angled
(N02-3687) x2
C2 - 5/16 - 18 x 2.5 Soc.
Head Cap Screw
(E01-0756) x8 per beam
C3 - 5/16-18 Hex Nut 1/2
A/F.265 Thick
(E01-0755) x8 per beam
E - Front Standoff
(B02-0658)
x2 for 60"-71"
x4 for 71"-96"
G - 1/4-20x5/8" Mach.
Screw (E01-0098) x4
Advertisement
Table of Contents
Summary of Contents for Teknion WWTWKS
- Page 1 1 of 6 Description: WORK TABLE 60" - 96" WIDTH INT_502a Rev. No: 2 Work Table Straight Leg (WWTWKS) Part and Product Identification Work Table Angled Leg (WWTWKA) A - Worksurface for Complete Table with Cut-out Leveler Cover is located inside Leg, (C05-7494) x 1 assembled and secured in place with tape.
- Page 2 interpret Installation Guides Section: TABLES Date: Jan 2018 Page No: 2 of 6 Description: WORK TABLE 60" - 96" WIDTH INT_502a REMOVE MOUNTING NUTS AND SCREWS Do Not Remove STEP 1: Remove Screw and Nut from Clamp as shown in the illustration.
- Page 3 interpret Installation Guides Section: TABLES Date: Jan 2018 Page No: 3 of 6 Description: WORK TABLE 60"- 96" WIDTH INT_502a DETAIL Clamps at End Gable Location Clamps at Mid Gable Location Clamp to be removed and repositioned to End Gable Postion Refer to highlighted holes to fasten Clamps for End Gable Position.
- Page 4 interpret Installation Guides Section: TABLES Date: Jan 2018 Page No: 4 of 6 Description: WORK TABLE 60"- 96" WIDTH INT_502a CONNECT BEAMS TO LEGS FASTEN AND LEVEL Side View of Standoff NOTE: Do not fully tighten until fully leveled. Remove tape so Leveler Cover can slide down.
- Page 5 interpret Installation Guides Section: TABLES Date: Jan 2018 Page No: 5 of 6 Description: WORK TABLE 60"- 96" WIDTH INT_502a INSTALL CENTRE SPACER NOTE: Ensure the Center Spacer is oriented as shown. Underside View STEP 5: Align Pilot holes from underside of Worksurface to holes of Spacer and fasten with screws provided. NOTE: Ensure the Center Spacer is oriented as shown.
- Page 6 interpret Installation Guides Section: TABLES Date: Jan 2018 Page No: 6 of 6 Description: WORK TABLE 60"- 96" WIDTH INT_502a LOWER WORKSURFACE TO FRAME INSTALL WORKSURFACE Pilot holes- End Gable Condition NOTE: For Middle Gable condition use pilot holes closer to the edge.
