Shield STEML-U9 Installation Manual

Installation manual
352mm
Warning note
Suitable for mounting on normally flammable surface. Green LED indicator indicates battery charging mode.
Safety and Performance are in accordance with UL924 Suitable for outdoor use, wall mounted.
If the external flexible cable or cord of this luminaire is damaged, it shall be exclusively replaced by the
manufacturer or his service agent or a similar qualified person in order to avoid a hazard. The battery is
non-replaceable.
Installation：The installation shall be done by a qualified person.
Model list:
Model No.
Rated voltage
Operating mode
Rated wattage
LED
Discharge duration
Battery
Battery life
Power factor
Operating Temp Range
IP degree
Protection class
Dimensions
Weight
Max. mounting height
STEML-U9
110mm
STEML-U9
AC120-277V~, 50/60Hz
Maintained/Non- Maintained
5W / 1.5W
27PCS SMD*0.2W LED / 5700-6700K
3h
Ni-Cd SC3,6V 1500mAh
up to 4 years
N/A
0℃-40℃
IP65
Class II
352mm×110mm×68mm
0.65kg
8.3ft (2.5m)
1

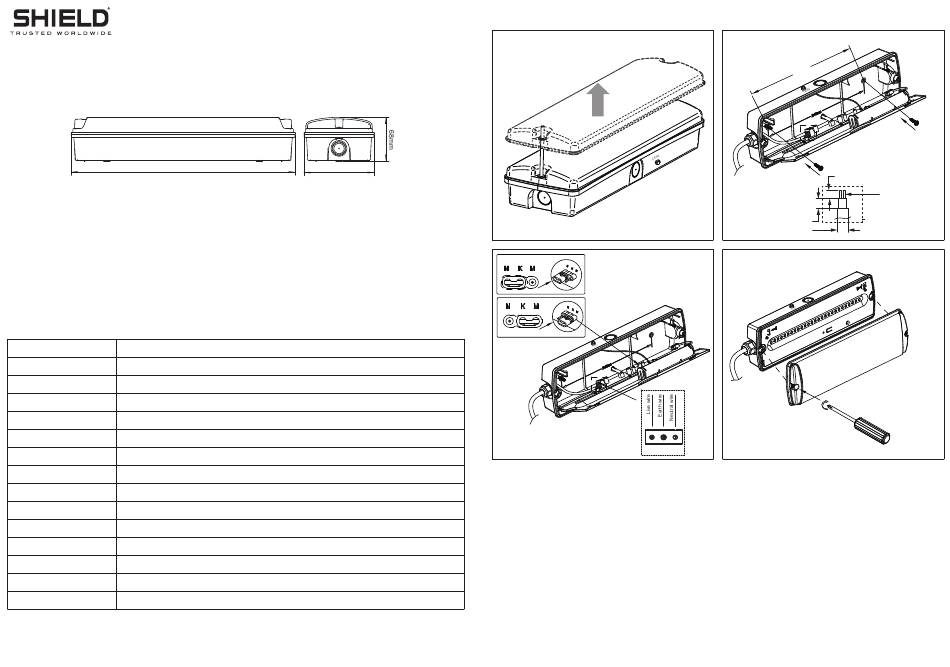

Installation instruction diagram:
Figure 1
Figure 3
non-maintained
maintained
L E
Installation instructions
The light source contained in this luminary shall only be install by the manufacturer or his service agent or a
similar qualified person.
1. Switch off the electricity at the AC power.
2. Remove the diffuser (Figure 1).
3. Body installation (Figure 2).
4. Electrical connection (Figure 3).
5. Attach diffuser (Figure 4).
6. Switch AC power on.
Figure 2
240MM
8.00~10.33mm
25.00~30.33mm
Ø6.5~Ø10.00mm
Figure 4
N
2
Wire line: h05RN-F2X1.0-1.5MM 2
