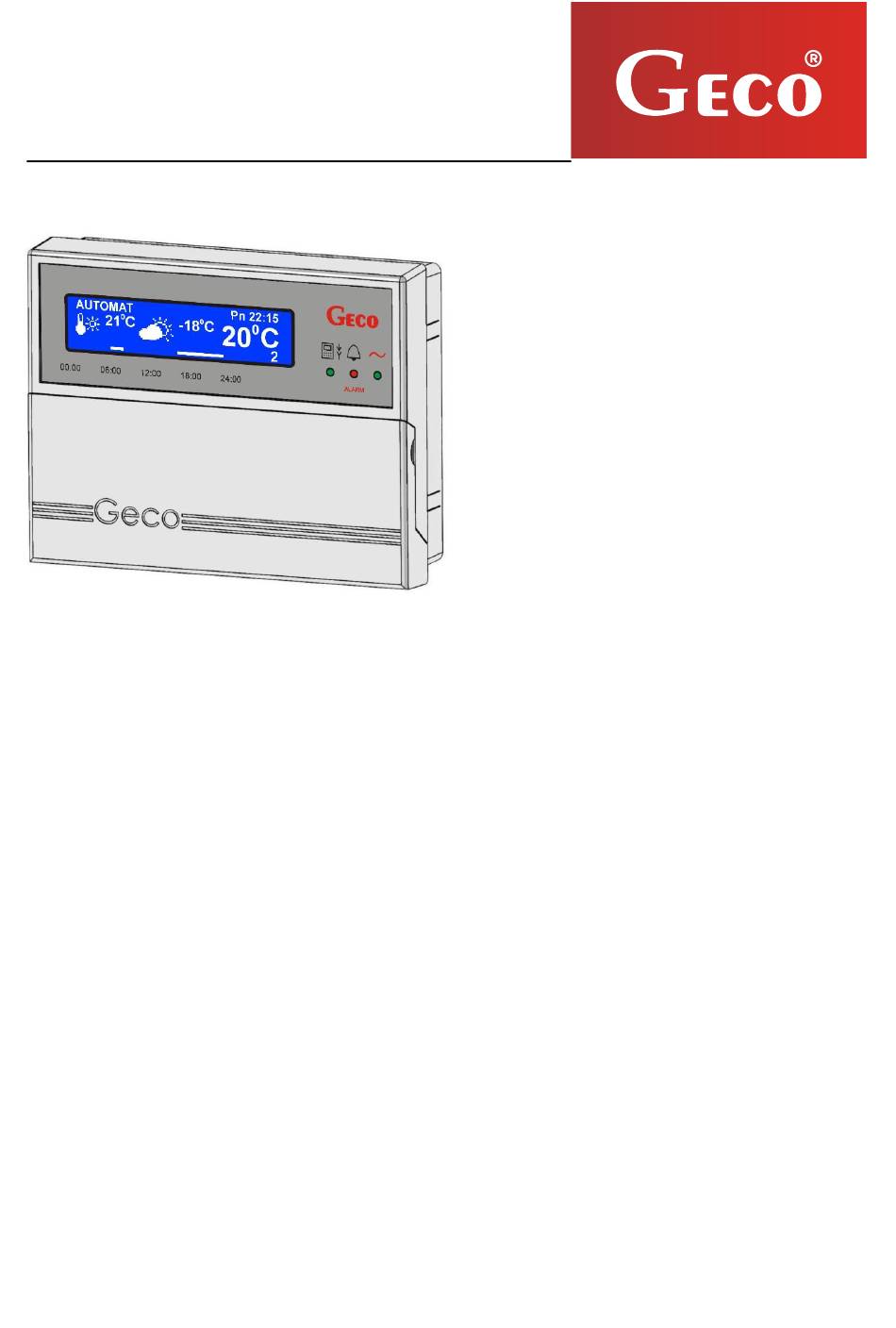

USER MANUAL
for
Room Control Panel
GA01HA - 01
Program version 01
We request that users carefully study applicable Instructions before connecting and starting up any
of our products.
Should any doubts arise, please contact our Company between 8 a.m. and 4 p.m.
Attention !!! At the bottom of each page you will find last document's update date. Please, always
use the most recent version of the Instructions, which is available free of charge and will be mailed
to you if ordered.
Advertisement
Table of Contents
Summary of Contents for Geco GA01HA - 01
- Page 1 USER MANUAL Room Control Panel GA01HA - 01 Program version 01 We request that users carefully study applicable Instructions before connecting and starting up any of our products. Should any doubts arise, please contact our Company between 8 a.m. and 4 p.m.
-
Page 2: Table Of Contents
......................20 ESTORING FACTORY SETTINGS 9. LANGUAGE VERSIONS ........................21 ALARM STATES ..........................22 INFORMATION ON LABELLING AND COLLECTION OF WORN OUT ELECTRICAL AND ELECTRONIC EQUIPMENT .............................. 24 NOTES ............................24 PPUH “GECO” Sp. z o.o. [Ltd.] Issue I SINCE 2011.11.18... -
Page 3: Introduction
This symbol indicates information of particular importance. Reference This symbol indicates occurrence of additional information in a chapter. 1.2. Keyboard and function keys PANEL - CONTROLLER COMMUNICATION POWER SUPPLY ALARM PPUH „GECO” Sp. z o.o. Issue I SINCE 2011.11.18... -
Page 4: General Characteristics
The GA01HA-01 room control panel has been designed in microprocessor technology, using automatic surface assembly. GECO heating controllers have been fitted for full communication with the GA01HA room control panel manufactured by GECO, which allows to control boiler operation comfortably from user’s apartment. -
Page 5: Installation And Connection
Slam room control panel in to connection block of GA01HA (inscription „DO GÓRY” on the mounting frame according to Fig. 2 inside of the frame shows that it should be mounted on the top) PPUH “GECO” Sp. z o.o. [Ltd.] Issue I SINCE 2011.11.18... - Page 6 Loss of communication caused by the damage of signal wires or disconnection the panel of the controller, causes the disappearance of main screen icon in 15s after disconnecting the panel. PPUH “GECO” Sp. z o.o. [Ltd.] Issue I SINCE 2011.11.18...
-
Page 7: Quick Start
C - 30 Night temperature (economic) C - 30 Daily zone 1 - 6 Program 3 Weekly zone Mo-Su Program 2 Weather regulation YES / NO Heating curve 1 - 10 PPUH “GECO” Sp. z o.o. [Ltd.] Issue I SINCE 2011.11.18... -
Page 8: Operation Of The Ga01Ha-01
Measured outdoor blockade daily zone. Temperature Indicator of the daily zone Field is enabled when an external temperature sensor is connected to the controller on the boiler PPUH “GECO” Sp. z o.o. [Ltd.] Issue I SINCE 2011.11.18... -
Page 9: Controller Menu
Below is presented a schematic drawing showing the controller MENU: MENU SETTINGS ADJUSTMENT LANGUAGE Time zones Time and date Polish 24 hours zones Factory settings Czech 1.1.1 Week zones English 1.1.2 Amplification factor German 1.1.3 Weather control Heating curve PPUH „GECO” Sp. z o.o. Issue I SINCE 2011.11.18... -
Page 10: Quick Access Keys
Depending on selected heating configuration, the display will show temperature values appropriate to given configuration: Boiler Feeder temperature temperature Chimney CH cycle temperature temperature Second CH cycle HUW cycle temperature temperature PPUH “GECO” Sp. z o.o. [Ltd.] Issue I SINCE 2011.11.18... -
Page 11: Viewing The Status Of Working On The Boiler's Equipment
Stopping or no support for the device by a controller on the boiler is signaled by “X” on screen, like below: Feeder does not run. Exit this screen by pressing a push-button. . Do not press any buttons for 60s to return to the main screen. PPUH “GECO” Sp. z o.o. [Ltd.] Issue I SINCE 2011.11.18... -
Page 12: Quick Temperature Setting
Select required cycle by Set the value. Confirm changes. pressing push-button. Exit this screen by pressing a push-button . Do not press any buttons for 60s to return to the main screen. PPUH “GECO” Sp. z o.o. [Ltd.] Issue I SINCE 2011.11.18... -
Page 13: Adjustment
The following screen will appear: 4. Use push-buttons to move to “24 hours zones” item. Press push-button The following screen will appear: Program number Clock and its name. Time indicated by the cursor Cursor PPUH “GECO” Sp. z o.o. [Ltd.] Issue I SINCE 2011.11.18... - Page 14 It is possible to select one of six heating programs. Programs 1 and 2 are the standard programs, developed by GECO and cannot be edited. The other four, i.e., 3,4,5,6 are editable programs, that can be adjusted to users individual needs.
-
Page 15: Week Zones
To change the temperature value for any mode, or to select a different heating program for the designated day of the week: STEP 1 STEP 2 STEP 3 → → Confirm the changes. Choose field to edit. Set the value. PPUH “GECO” Sp. z o.o. [Ltd.] Issue I SINCE 2011.11.18... -
Page 16: Amplification Factor
This process leads to continuous of boiler temperature, what affects to boiler work and stabilizing fuel combustion. Parameter range. Actually set value. PPUH “GECO” Sp. z o.o. [Ltd.] Issue I SINCE 2011.11.18... -
Page 17: Weather Control
Actually set value. There are 10 lines prepared in GECO company to choose. They are arranged from those describing very poorly insulated buildings where are large heat loss, to these very well isolated. Poorly insulated buildings are described with curve No. 1, then vary proportionately until curve 10, describing very well insulated buildings. - Page 18 Table 3. Dependence of outside temperature and C.H. temperature on heating curves. Heating Central Heating temperature [ Courve Outside temp. [ Fig. 3. Heating curve that can be applied in room control panel GA01HA-01. PPUH “GECO” Sp. z o.o. [Ltd.] Issue I SINCE 2011.11.18...
-
Page 19: Settings
Not pressing any buttons for 60s causes returning to the main screen. Actually set time and date is shown on the room control panel main screen in „Time and date” field. (=> P. 5.1 page 8). PPUH “GECO” Sp. z o.o. [Ltd.] Issue I... -
Page 20: Restoring Factory Settings
RESTORING OF FACTORY SETTINGS HAS NO EFFECT ON SELECTED LANGUAGE VERSION (THE CONTROLLER RESUMES OPERATION WITH FACTORY SETTINGS IN THE SAME LANGUAGE VERSION THAT WAS USED BEFORE ACTIVATION OF THIS FUNCTION). PPUH “GECO” Sp. z o.o. [Ltd.] Issue I SINCE 2011.11.18... -
Page 21: Language Versions
The following screen will appear: 3. Use pushbuttons to select language version. 4. Press pushbutton . The controller will automatically return to the main screen. FACTORY SETTING PROVIDES THE CONTROLLER WITH POLISH LANGUAGE VERSION PPUH “GECO” Sp. z o.o. [Ltd.] Issue I SINCE 2011.11.18... -
Page 22: Alarm States
Damage of feeder temperature ALARM 3 sensor Damage of temperature sensor ALARM 4 for HUW / return Damage of CH1 ALARM 5 temperature sensor Damage of CH2 ALARM 6 temperature sensor PPUH “GECO” Sp. z o.o. [Ltd.] Issue I SINCE 2011.11.18... - Page 23 Damage of outside temperature ALARM 10 sensor Exceeded maximum ALARM 11 temperature in feeder ALARM 12 Boiler overheating ALARM 13 Boiler going out ALARM 14 Firing up failure PPUH “GECO” Sp. z o.o. [Ltd.] Issue I SINCE 2011.11.18...
-
Page 24: Information On Labelling And Collection Of Worn Out Electrical And Electronic Equipment
It is the user’s responsibility to collect worn out equipment separately, and to return it to an authorised disposal company. 12. NOTES ………………………………………………………………………………………………………… ………………………………………………………………………………………………………… ………………………………………………………………………………………………………… ………………………………………………………………………………………………………… ………………………………………………………………………………………………………… ………………………………………………………………………………………………………… ………………………………………………………………………………………………………… ………………………………………………………………………………………………………… ………………………………………………………………………………………………………… ………………………………………………………………………………………………………… ………………………………………………………………………………………………………… ………………………………………………………………………………………………………… ………………………………………………………………………………………………………… ………………………………………………………………………………………………………… ………………………………………………………………………………………………………… ………………………………………………………………………………………………………… ………………………………………………………………………………………………………… ………………………………………………………………………………………………………… PPUH “GECO” Sp. z o.o. [Ltd.] Issue I SINCE 2011.11.18... - Page 25 P.P.U.H. „Geco” Sp. z o. o. Cholerzyn 376, 32-060 Liszki POLAND Phone: +48 12 6369811 +48 6361290 fax. +48 12 6362002 http://www.geco.pl e-mail: geco@geco.pl...
