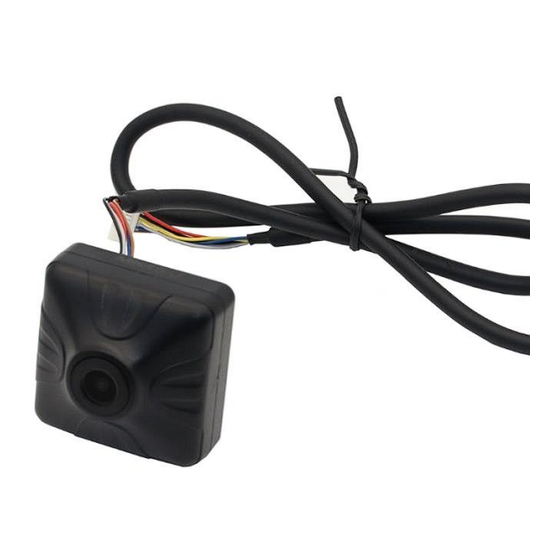

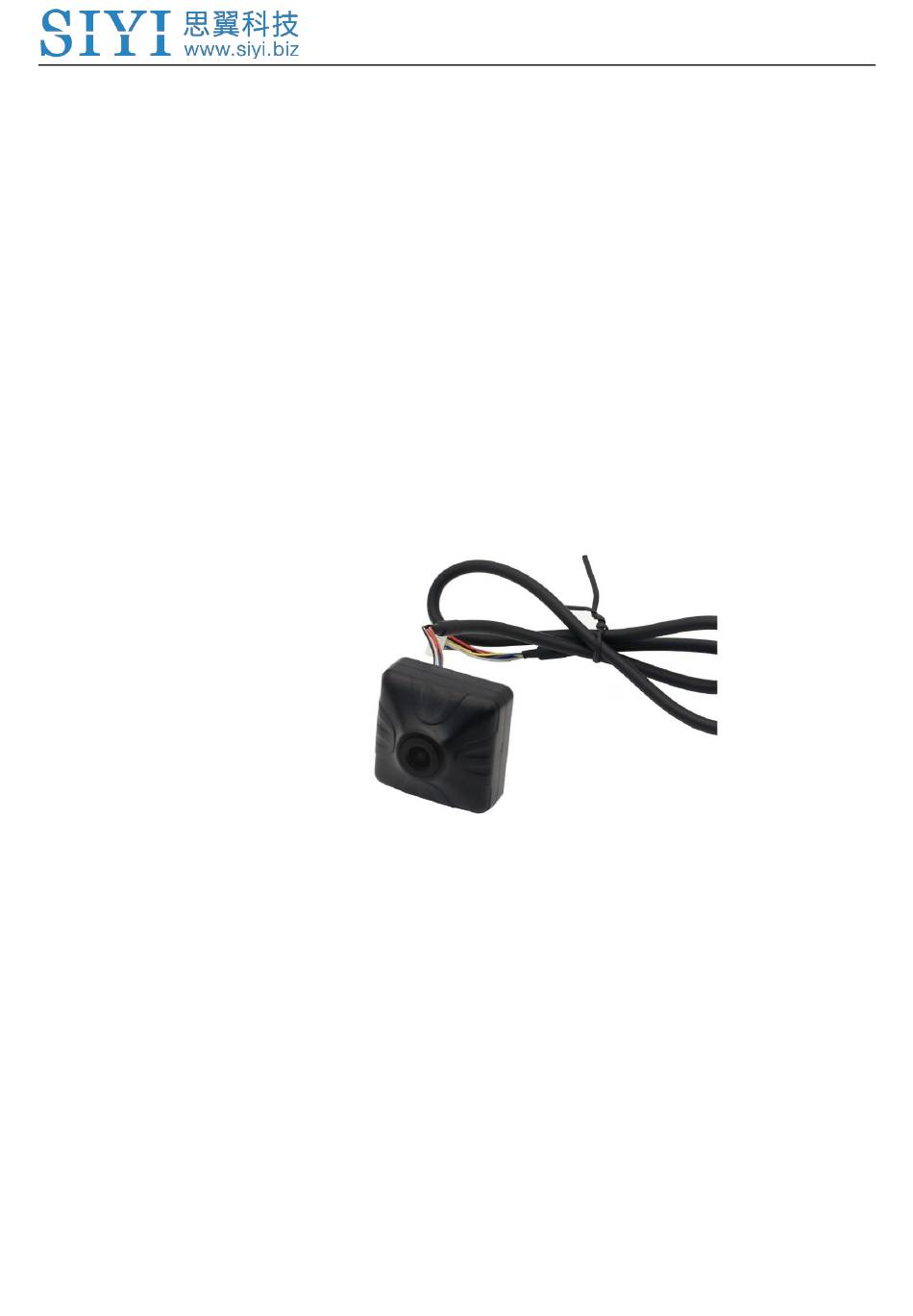

- Page 1 R1 R1M Recording Camera User Manual V1.0 R1 / R1M HD RECORDING FPV CAMERA USER MANUAL V1.0 Oct 2022 2022 SIYI Technology Copyright...
- Page 2 R1 R1M Recording Camera User Manual V1.0 SIYI User Group - Facebook SIYI Official Store (https://shop.siyi.biz) SIYI Official AliExpress Store (https://siyi.aliexpress.com) SIYI YouTube Channel (https://www.youtube.com/c/SIYITech) 2022 SIYI Technology Copyright...
-
Page 3: Table Of Contents
4.2 Connect to MK15 Mini Handheld Smart Controller ..................9 4.3 Connect to Third-Party Image Transmission Systems ................10 4.4 Solutions to No Image from R1 / R1M Recording Camera ..............11 4.4.1 Video Output to An Android Device ....................12 4.4.2 Video Output to A Windows Device .................... -
Page 4: Read Tips
Disassembling or modification to the system is prohibited without permission from its manufacturer, SIYI Technology. Storage/Carrying/Recycling When your SIYI products are stand idle, or you are bringing it outdoors, or the system reached service life, then please do read the precautions below. 2022 SIYI Technology, All Rights Reserved... - Page 5 R1 R1M Recording Camera User Manual V1.0 CAUTION Always place your SIYI products at places where babies or kids do not reach. DANGER SIYI products should be placed in places with below conditions: Not too hot (above 60℃) or too cold (under -20℃).
-
Page 6: Introduction
R1 R1M Recording Camera User Manual V1.0 1 INTRODUCTION 1.1 Ports and Definitions 2022 SIYI Technology, All Rights Reserved... -
Page 7: Technical Specification
R1 R1M Recording Camera User Manual V1.0 1.2 Technical Specification Overall Video Output Port Ethernet Working Voltage 12 V Power Consumption Working Temperature -10 ~ 50 ℃ Waterproof Level IP4X Dimension 42 x 42 x 25 mm Weight 39 g... -
Page 8: How To Configure Camera
R1 R1M Recording Camera User Manual V1.0 2 HOW TO CONFIGURE CAMERA If it is the first time that you are going to configure the camera, please do flash the camera firmware once through SD card, so you can see the files for camera configuration in the SD card. -
Page 9: Check Ip
R1 R1M Recording Camera User Manual V1.0 2.1 Check IP Open the “curip.txt” file, you will see the current IP addresses of the camera. “192.168.144.25” is the factory default camera IP addresses. 2.2 Change IP Open the “setip.txt” file, input the IP addresses you need after “IP = ”. - Page 10 R1 R1M Recording Camera User Manual V1.0 Mark When you are using R1/R1M recording camera with SIYI MK15 or HM30, please do configure its IP addresses within “192.168.144.X” and avoid conflicting with existing IP addresses in the link. For detail, please refer to the “Common IP Addresses” chapter in MK15 and HM30 user manual.
-
Page 11: Video Recording
Tap the “Recording” button will stop video recording. Mark SD / TF card should be inserted to R1 / R1M recording camera before using recording function. Please use v393 and above version of SIYI FPV app to experience video recording function. -
Page 12: Image Transmission And Display
R1 R1M Recording Camera User Manual V1.0 4 IMAGE TRANSMISSION AND DISPLAY R1 / R1M recording camera is an Ethernet camera, it can connect to SIYI image transmission systems and third-party image transmission systems. 4.1 Connect to HM30 HD Image Transmission System Connect the camera to HM30 air unit’s video input port, then use mobile device to... -
Page 13: Connect To Third-Party Image Transmission Systems
“RX-” pinout, and “RX+” pinout to “RX+” pinout. Do not cross the pinouts, otherwise it will cause damage to the device. R1 / R1M recording camera’s working voltage is from 12 V DC, please make sure that the power voltage input is normal before wiring. -
Page 14: Solutions To No Image From R1 / R1M Recording Camera
4.4 Solutions to No Image from R1 / R1M Recording Camera If R1 / R1M recording camera failed to output video or the video stream cannot be displayed properly, please follow the steps below to investigate possible reasons. -
Page 15: Video Output To An Android Device
1. Input the camera’s default IP addresses “192.168.144.25” in the “Ping Tools” app and check if the network communication is successful. If there is a response, then check if the RTSP address in the SIYI FPV app is correct. Successful Network Communication... -
Page 16: Video Output To A Windows Device
R1 R1M Recording Camera User Manual V1.0 Network Communication Failed 2. If the network communication is failed, then please check if the communication between the image transmission system’s ground unit and the air unit is successful. If it is, then please check if the video cable between the camera and the image transmission system’s air unit is good, and if the voltage input is in... - Page 17 R1 R1M Recording Camera User Manual V1.0 Successful Network Communication Network Communication Failed 2. Input the camera’s default IP addresses “192.168.144.25” and press the “Enter” key to check if communication is successful. If it is successful, please check if the RTSP addresses in the RTSP player is correct or try to switch to other video players.
-
Page 18: Common Ip Addresses
If you have done investigation by following all steps above, but the reason is still not located, please contact your dealer or contact SIYI Support immediately. 4.5 Common IP Addresses R1 / R1M Recording Camera’s Default IP Addresses: 192.168.144.25 R1 / R1M Recording Camera’s Default RTSP Addresses: rtsp://192.168.144.25:8554/main.264 SIYI FPV App’s “SIYI Camera 1”... -
Page 19: Siyi Fpv App
R1 R1M Recording Camera User Manual V1.0 5 SIYI FPV APP SIYI FPV is an Android application developed by SIYI to configure multiple SIYI devices for image transmission settings, camera settings, video stream display, and link status monitor. Mark The manual is edited based on SIYI FPV App v2.5.404. - Page 20 R1 R1M Recording Camera User Manual V1.0 SIYI FPV App OSD Information Definition SIYI FPV Camera Function Icon Definition 2022 SIYI Technology, All Rights Reserved...
-
Page 21: Settings
About Settings Camera IP: Select SIYI Camera 1 and SIYI Camera 2, or input camera RTSP addresses manually, or disable image. The “Rotate” buttons can rotate the image in 180 degrees. Cross Sight: Display a cross sight in the center of the image. -
Page 22: Link Status
Mavlink OSD: Enable / disable Mavlink OSD information. Speed Unit: Switch speed unit between meter per seconds and kilometer per hour. Longitude and Latitude: Enable / disable information. 5.3 Gimbal Camera Configure the basic functions for SIYI gimbal cameras and cameras. 2022 SIYI Technology, All Rights Reserved... - Page 23 R1 R1M Recording Camera User Manual V1.0 About Gimbal Camera Auto Record: Turn on / off automatically video recording by TF card on gimbal camera start. Color Mode: Switch gimbal camera’s color mode between Daylight and Night Vision. Resolution: Switch camera real-time video streaming resolution between HD (720p) and Full HD (1080p).
-
Page 24: About Siyi Fpv
Zoom Firmware Version: Display the current gimbal firmware version. Mark After switching camera resolution, the gimbal camera should be restarted to implement the change. 5.4 About SIYI FPV Displays the software version of SIYI FPV and common contact information of SIYI Technology. 2022 SIYI Technology, All Rights Reserved... -
Page 25: Firmware Upgrade And Configuration
⚫ R1 / R1M camera firmware Mark Above software and firmware can be downloaded from the R1 / R1M product page in SIYI Official Store (https://shop.siyi.biz), or from the R1 / R1M Google Drive Link, or got from your dealer. -
Page 26: After-Sale Service
2. Restart the camera and wait for three to five minutes, camera firmware will be flashed automatically. 3. Run SIYI FPV app to check if the camera firmware is updated or check from the “curip.txt” file in the SD card just used. -
Page 27: Repair Service
⚫ Product Defect ⚫ Product Damage SIYI products under the two situations can be sent back to SIYI for repairing. Defect products with valid warranty can be repaired for free. Defect products without valid warranty or damaged products should be charged of repair fees after repairing. -
Page 28: 7-Day Return & Refund
It is requested beyond seven (7) calendar days of receiving a product. A product sent to SIYI for Return & Refund Service does not include all original accessories, attachments or packaging, or any item is not in new or like-new condition, i.e., with cracks, dents, or scratches. -
Page 29: 15-Day Replacement
Damage is caused to the product by uncontrollable external factors, including fire, floods, high winds, or lightning strikes. A product is not delivered to SIYI within seven (7) calendar days after Return & Refund Service confirmation is sent from SIYI. -
Page 30: 1-Year Warranty Repair
Damage is caused by uncontrollable external factors, including fires, floods, high winds, or lightning strikes. Received product has not been sent back to SIYI seven (7) calendar days after replacement confirmation from SIYI. Proof of damage during transit issued by the carrier cannot be provided. - Page 31 Charges may apply for services not covered by this Limited Warranty. Please contact SIYI for information specific to your location. Please note that the warranty service is only available in the respective SIYI service regions where you purchased your SIYI product.
- Page 32 R1 R1M Recording Camera User Manual V1.0 Damage caused by operating the product in an environment with electromagnetic interference (i.e., in mining areas or close to radio transmission towers, high-voltage wires, substations, etc.) Damage caused by operating the product in an environment suffering from interference from other wireless devices (i.e., transmitter, video-downlink, Wi-Fi...
- Page 33 R1 R1M Recording Camera User Manual V1.0 SIYI Technology (Shenzhen) Co., Ltd Business Inquiry: info@siyi.biz Phone: +86 400 838 2918 A/S Center: support@siyi.biz 2022 SIYI Technology, All Rights Reserved...
