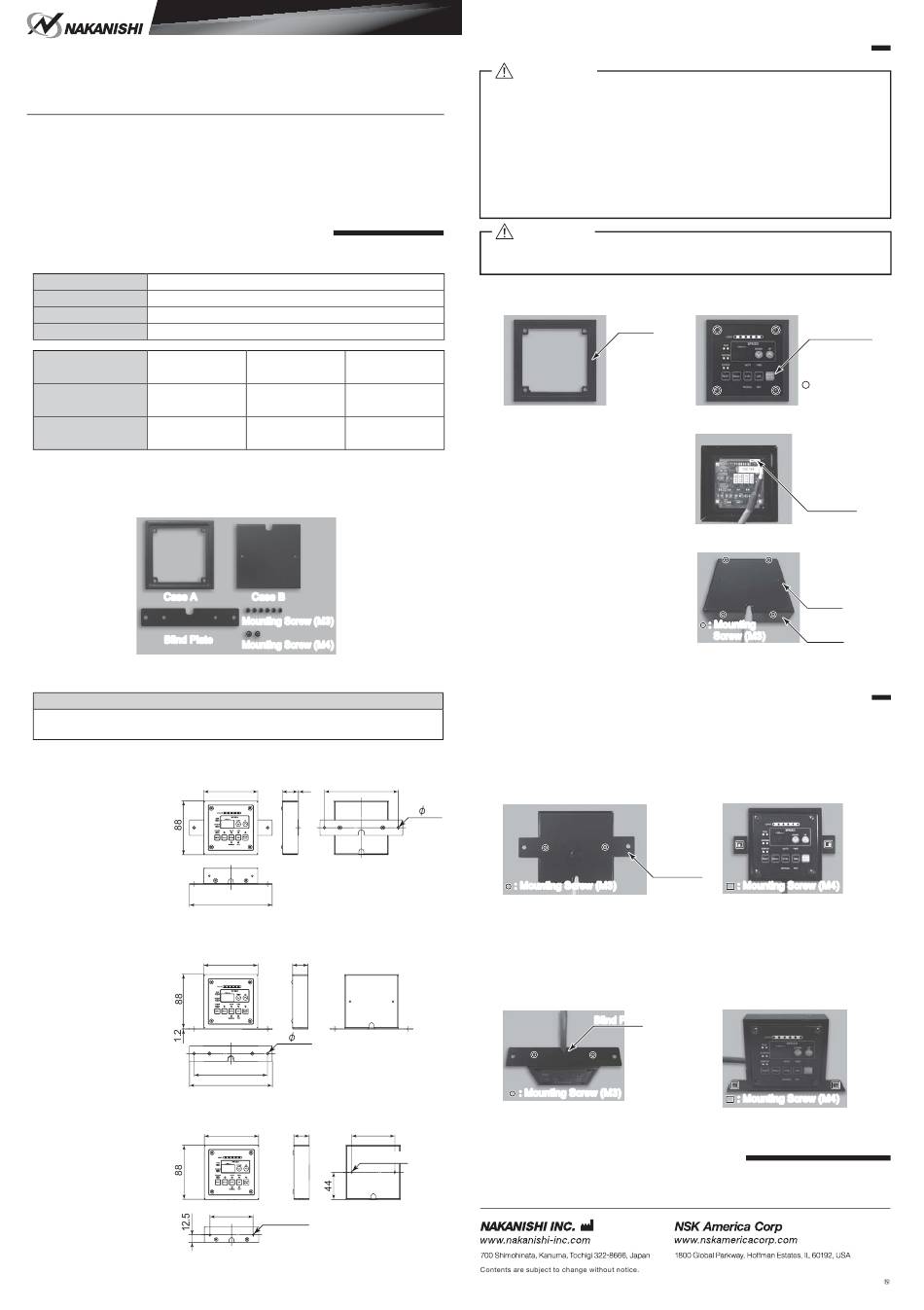

BOX for Control Panel
E4000 - PB
OPERATION MANUAL
Thank you for purchasing BOX for Control Panel E4000 - PB. This " BOX for Control Panel "
is designed for can be attach the Control Panel. Read this and Control Panel Extension
Cord Operation Manuals carefully before use. Always keep this Operation Manual in a
place where a user can referred to for reference at any time.
1 . SPECIFICATIONS AND DIMENSIONS

1 - 1 Specifications

Product Name
BOX for Control Panel
Model
E4000 - PB
Applicable Products
E4000 Control Panel, E4000 Control Panel Extension Cord
Weight
216g
Temperature
Operation Environment
0 - 40°C
Transportation and
-10 - + 50°C
Storage Environment

1 - 2 Standard Accessories

Confirm the following Accessories after opened the Packing Box.
Case A
Blind Plate
Standard Accessories
・ Mounting Screw (M3) ・・6pcs.
・ Blind Plate ・・1pc.

1 - 3 Outside View

① Rear Mounting
② Bottom Mounting
③ Tapping Mounting
All manuals and user guides at all-guides.com
Atmospheric
Humidity
Pressure
MAX.75%
700 - 1,060hPa
(No condensation)
10 - 85%
500 - 1,060hPa
Case B
Mounting Screw (M3)
Mounting Screw (M3)
Mounting Screw (M4)
Mounting Screw (M4)
Fig. 1
・ Mounting Screw (M4) ・・2pcs.
・ Operation Manual ・・1set.
88
120
25 1.2
135
Fig. 2
88
25
2- 4.5
120
Fig. 3
135
25
88
70
2- M3 x 0.5
70
2-M3 x 0.5
Fig. 4

2 . INSTALLATION OF THE CONTROL PANEL AND BOX FOR CONTROL PANEL

WARNING
Turn OFF the Main Power Switch of the CONTROLLER before Control
Panel Extension Cord mounting.
When attaching the Control Panel, protect the Control Panel from oil and
other contaminants.
Take care when selecting routing of cord of Control Panel to insure that
the cord is not routed near potential sources of RF noise.
Attach the Control Panel in manner to insure that the back of the circuit
board of the Control Panel does not contact any object or surface that
could cause potential short circuit.
CAUTION
Be sure to read and understand the Control Panel Extension Cord Operation
Manual before installation.
① Attach the Control Panel to the Case A by using the Mounting Screw (M3 : Standard
Accessories) 4 positions (Fig. 6).
Fig. 5
② Connect the connector of the
Control Panel Extension Cord to
the connector of the Control Panel.
③ Mount the Case B to the Case A
by using Mounting Screw (M3 :
Standard Accessories) 4 positions.

3 . INSTALLATION OF THE BOX FOR CONTROL PANEL

3 - 1 Rear Mounting

① Mount the Blind Plate to Case B by using Mounting Screw (M3 : Standard Accessories)
2 positions.
② Mount the Blind Plate to the Installation location by using Mounting Screw (M4 :
Standard Accessories) 2 positions.
2- 4.5
: Mounting Screw (M3)
: Mounting Screw (M3)
Fig. 9

3 - 2 Bottom Mounting

① Mount the Blind Plate to bottom of the Case A by using Mounting Screw (M3 :
Standard Accessories) 2 positions.
② Mount the Blind Plate to the Installation location by using Mounting Screw (M4 :
Standard Accessories) 2 positions.
: Mounting Screw (M3)
Fig. 11

4 . DISPOSAL OF THIS PRODUCTS

When disposal of E4000 - PB is necessary, follow the instructions from your local
government agency for proper disposal of electrical components .
Case A
Fig. 6
Fig. 7
: Mounting
Screw (M3)
Fig. 8
Blind Plate
: Mounting Screw (M4)
: Mounting Screw (M4)
Fig. 10
Blind Plate
: Mounting Screw (M4)
Fig. 12
Control Panel
: Mounting
Screw (M3)
Connector
Case B
Case A
2015 . 01 . 20 0001
