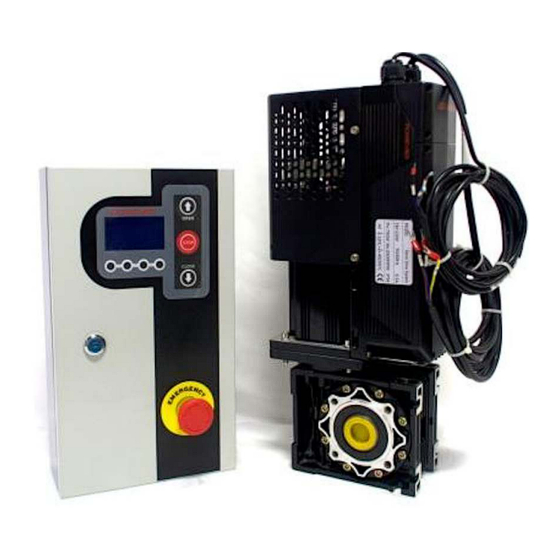

High Speed Door Servo Control System Contents Introduction......................2 Inspection......................3 General Characteristic..................3 Specifications....................4 1. Specifications for Controller..............4 2. Specifications for Motor................5 Operating Instructions..................6 1. Basic Function..................6 2. Control Key/Button..................6 3. Install limit switch..................6 4. Safety......................7 Maintenance.....................7 Size........................8 System Operation...................10 Error Table......................19 Port Table.................... -
Page 3: Introduction
High Speed Door Servo Control System Introduction Thank you for choosing High Speed Door Servo Control System. Please read this manual carefully before you start to use the system. In this manual you will find instructions for how to set the operating code the controller, malfunction diagnostics and debugging, and routine maintenance. -
Page 4: Inspection
High Speed Door Servo Control System Inspection All product has passed inspection and testing before is leaving the factory. When you open the unit place make sure there is no damager during shipping. Also to confirm the equipment ratings are matching your requirement. General Characteristic Our servo control system is suitable for rapid door and spiral doors. -
Page 5: Specifications
High Speed Door Servo Control System Specification Specification for Controller Model PE200 PE500 Enclosure material SPCC Dimension(L*W*H) 340x195x95(125)(include E-STOP) Installation method Vertical installation without vibration Power supply 1N~200-240 Power frequency 50/60 Rate output power External power supply Ambient temperature -10～+50 ℃... -
Page 6: Specifications For Motor
High Speed Door Servo Control System Specification for Motor Model PE200 PE500 Dimension(L*W*H) 440x110x180 522x130x200 0.75 1.5 Rated Output Power 2,500 2000 RPM Rated Speed 2.86 7.2 Rated Torque Power supply 1N~AC200-240 Power frequency 50/60 Powercurrent 6.5 Ambient temperature -10～+40 ℃ Storage temperature -25～+55 ℃... -
Page 7: Operating Instructions
High Speed Door Servo Control System Operating Instructions 1. Basic Function The system can operated via: 1) control box; 2) jog control; 3) continuous automatic operation; 4) emergency stop; 5) single side operation box; 6) time delay; 7) radar and/or induction loops. Please refer to wiring terminal for external connections. -
Page 8: Safety
High Speed Door Servo Control System 4. Safety 1) The motor and controller MUST ground properly; 2) During the installation, commission and operation NO ONE is permit to stand under the door and stand in the operating path; 3) While installing and testing the motor package, at least half of the door’s axle MUST be insert into the reducer. -
Page 9: Size
High Speed d Door Servo Co ntrol System Size e PE20 00/500 Con ntroller... - Page 10 High Speed d Door Servo Co ntrol System PE200 0(0.75KW) ) Motor PE50 00(1.5KW) Motor...
-
Page 11: System Operation
High Speed Door Servo Control System System Operation MAIN------ SERVO (dispaly) ┆ ┆ MODE: (mode) ┆ STATUS: (status) ┆ Info Mode ┆ ┆ (dispaly): Torque, Speed, Position. ┆ (mode): Manual, Auto, Jog. ┆ (status): OK, Opening, Closing, Falut, Stop, E-stop, Safty1, Safty2, Lock, Maintenance. ┆... - Page 12 High Speed Door Servo Control System ┆ ┆------1.Parameter Index Parameter Value Default Opening Speed 10-125 Closing Speed 10-125 Open Slowdown dis. 30-70 Close Slowdown dis. 30-70 ● Disable Auto Closing Time ● 1-120 s ● Non-close Limit ● Close Limit ●...
- Page 13 High Speed Door Servo Control System ● 60 minute power saving ┆ ┆ ● 60 minute auto off ┆ ┆ ● Always On ┆ ┆ ● Off ┆ ┆ Winter Autorun ● 1-999 min ┆ ┆ ● Off ┆ ┆ Wireless Remote ┆...
- Page 14 High Speed Door Servo Control System ┆ ┆Next, we shall set the Open and Close Limit. ┆ ┆ Open Limit ┆ ┆ ┆ ┆ ┆ ┆ ┆ ┆ ┆ ┆ ┆ ┆ ┆ ┆ Close Limit ┆ ┆ ┆ ┆ ┆...
- Page 15 High Speed Door Servo Control System ┆ ┆------4.Advanced Setting ┆ ┆ ┆------1.Communication ┆ ┆ ┆ Set RS485 slave address and baudrate. ┆ ┆ ┆ 1. Slave Address Slave Address ┆ ┆ ┆ ┆ ┆ ┆ 2. Baud Rate ┆ ┆ ┆...
- Page 16 High Speed Door Servo Control System ┆ ┆ ┆ Select the parameter index. ┆ ┆ ┆ Adv Parameter ┆ ┆ ┆ Index: 01 ┆ ┆ ┆ ┆ ┆ ┆ ┆ ┆ ┆ ＋ － ┆ ┆ ┆ ┆ ┆ ┆ Change the parameter value.
- Page 17 High Speed Door Servo Control System ┆ ┆ ┆ Change the system config password. ┆ ┆ ┆ Password ┆ ┆ ┆ 1111 ┆ ┆ ┆ ┆ ┆ ┆ ┆ ┆ ┆ → Save ┆ ┆ ┆ ┆ ┆ ┆ ┆ ┆...
- Page 18 High Speed Door Servo Control System ┆------Info ┆ ┆------1.Input Query ┆ ┆ Displays the input states. ┆ ┆ ┆ ┆ Index Port State ┆ ┆ Manual Open ┆ ┆ Manual Close ┆ ┆ Manual Stop ┆ ┆ Ext E-Stop ┆ ┆...
- Page 19 High Speed Door Servo Control System ┆ ┆------4.Fault Memory ┆ ┆ Displays the error history. ┆ ┆ 01. ERR23 ┆ ┆ Limit Settings ┆ ┆ ┆ ┆ 2015-11-17 10:25 ┆ ┆ ↑ ↓ ┆ ┆ ┆ ┆------5.System Query ┆ ┆ Displays the value of selected system register.
-
Page 20: Error Table
High Speed Door Servo Control System Error Table: Error Code Content ERR01 Over current ERR03 Under Voltage ERR04 Over Voltage ERR05 Over Voltage ERR06 Locked Rotor ERR07 Out Of Limit Position ERR08 EEPROM Failure ERR09 Over Speed ERR10 Motor Reversion ERR11 Overload ERR12... -
Page 21: Port Table
High Speed Door Servo Control System ERR47 Limit HALL Value Not Match ERR48 Abnormal Door Position ERR49 Limit Abnormal ERR50 Motor Too Heart ERR51 Drive Too Heart ERR53 Electromagnetic Brake Error 3 ERR54 System Matching Fault ERR55 IPM Too Heart ERR56 Out Of Door Track Port Table:... - Page 22 High Speed Door Servo Control System Port Table Of Controller: Port Function Remark 1N~AC220V input 1N~AC220V output，connect to motor Motor signal output Connect to motor COM/GND Manual open input Manual close input Manual stop input COM/GND DC+24V COM/GND Safety input 1 NO(Safety edge, photocell, etc)，stop ※...
