Summary of Contents for Funkwerk focX 2

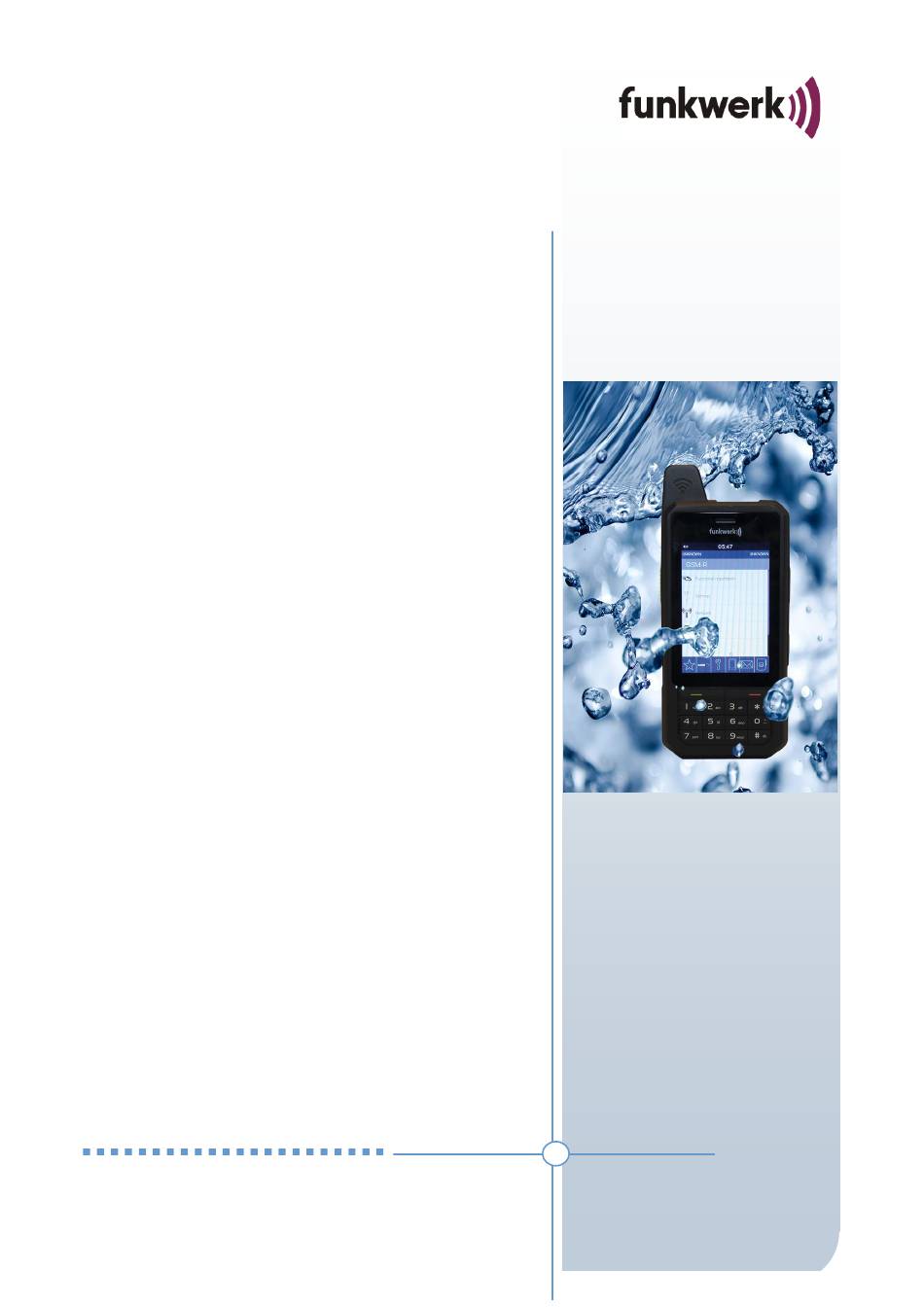

- Page 1 User Manual Handheld focX®2 Document no.: 1405.150.10001.BH.EN.8 Version: 1.0.0 Date created: 2023-04-12 Language:...
- Page 2 CAREFULLY READ THE ENTIRE DOCUMENT BEFORE USE! KEEP THE DOCUMENT FOR FUTURE USE! Contact details Funkwerk Systems GmbH Im Funkwerk 5 99625 Kölleda Germany Phone: +49 3635 458-0 Fax: +49 3635 458-399 E-mail: info@funkwerk.com Internet: www.funkwerk.com The source document is created in German.
-
Page 3: Table Of Contents
User Manual Table of contents Handheld focX®2 Table of contents About the contents ................. 5 Basic safety messages ................6 Identification of warning messages................6 Note on use ....................... 6 Dangers of personal damages ................... 7 Storage information ....................8 Accessories information .................... - Page 4 Table of contents User Manual Handheld focX®2 Maintenance and instructions ............... 23 Update ........................24 8.1.1 Update GSM-R module .................... 26 8.1.2 Import configuration file ..................26 Decommissioning .................. 27 Returns ....................28 Disposal ....................29 List of figures ..................30 List of tables ..................
-
Page 5: About The Contents
About the contents This document describes the use, the technical structure and operation of the handheld radio focX 2. Read this manual carefully before using the unit. It contains important information to support you in the correct and proper use of the device. Important safety instructions are highlighted separately in the individual chapters. -
Page 6: Basic Safety Messages
Basic safety messages User Manual Handheld focX®2 Basic safety messages The device may be used for its intended use only. Any other use is deemed to be inappropriate. Identification of warning messages Warning messages for personal and property damages This document contains warning messages for your personal safety as well as for prevention of property damages. -
Page 7: Dangers Of Personal Damages
User Manual Basic safety messages Handheld focX®2 Dangers of personal damages The device have been developed and manufactured using state-of-the-art technology and in accordance with approved safety-related norms and regulations. However, unavoidable residual hazards for the user or third parties may result from the device, or impairments to the device or to material assets may occur. -
Page 8: Storage Information
► Ensure that the withdrawable battery holder is not soiled during storage. ► During lengthy storage, the battery should be recharged every 3 to 6 months. Accessories information ► Only use accessories recommended by Funkwerk; this ensures safe and efficient use of the handheld. Notes on the rechargeable battery ►... - Page 9 User Manual Basic safety messages Handheld focX®2 The following safety messages are intended to help you to identify and avoid hazards in time. In addition, concrete warning messages are before the dangerous actions. Property Damage Follow the instructions below to ensure perfect function and operating safety of the device: ►...
-
Page 10: Product Description
Product description User Manual Handheld focX®2 Product description Intended use The handheld is a device for data and voice transmission used for railway internal communication between fixed and mobile subscribers or between mobile subscribers together. The device intended for use in digital train, construction and shunting radio applications as well as, if applicable, for operational and maintenance radio applications. -
Page 11: Eu Conformity And Official Approval

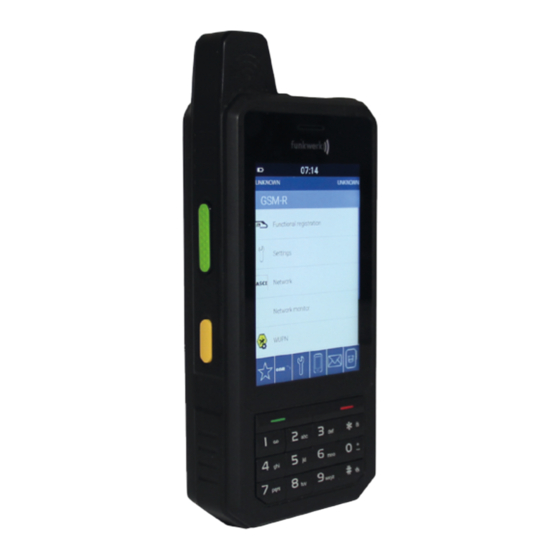

Device overview Figure 1 Device overview The focX 2 is an OPH (Operational Purpose Handheld) – GSM-R handheld radio including smartphone functions. This type of device is designed for mobile use. The battery and the back cover are replaceable components. -
Page 12: Designation System And Product Identification
Every device is provided with a type plate and device-dependent with an additional identification label. The following product data is coded: 1405.150-0000101230200178 Product number Device state (GS) Serial number Product number 1405.150-xxxxx focX 2 (OPH) 12 | 32 1405.150.10001.BH.EN.8 | 1.0.0... -
Page 13: Technical Data In Overview
User Manual Product description Handheld focX®2 Technical data in overview Environmental characteristics Operating temperature -25 °C to + +55 °C Storage temperature -40 °C to +70 °C Protection class IP65 Waterproof Permanently waterproof up to 1.00 m Depth Dust-tight Dust-impermeable Shock resistant Shock-protected Dust-impermeable... -
Page 14: Sim Card
Product description User Manual Handheld focX®2 Bluetooth for accessories Connection for headset and other accessories with 3.5 mm jack or USB-C Memory expansion with SD memory card up to 128 GB 13 MP camera (with Full HD video) Extras ... -
Page 15: States And Signals
User Manual Product description Handheld focX®2 Import configuration files Updating of the GSM-R module Import / export phone book The language of the user interface can be adjusted. States and signals Status Displays The displays are used to visually display operating states. ... -
Page 16: Transport And Storage
Transport and storage User Manual Handheld focX®2 Transport and storage General environmental conditions storage temperature range: –40 to +70 °C maximal gradient of temperature fluctuation: ±1 °C/min relative humidity: ≤75 % protected from dirt and dust ... -
Page 17: Installation Instructions
User Manual Installation instructions Handheld focX®2 Installation instructions Scope of delivery IMPORTANT Check the delivery to ensure it is complete. The scope of delivery includes: Handheld Power supply unit USB-C cable Multi-country adapter Headset Screwdriver Insert SIM cards and micro SD card The SIM card is not included in the scope of delivery. -
Page 18: Commissioning
Commissioning User Manual Handheld focX®2 Commissioning Visual inspection Check the device for clean workmanship, lack of identifiable mechanical damage and that all the labels are intact. Check the screw connections for flawless quality. Charge the battery When the device heats up while charging the battery While charging, the device and the charger may become hot. -
Page 19: Wireless Charging
User Manual Commissioning Handheld focX®2 6.2.2 Wireless charging Prerequisite: Charging station must support inductive charging. Install the charging station according to the instructions and observe the notes. Placement of the coil Coil for wireless charging Charge the device: Place the rear of the device in the centre of the inductive charging station. -
Page 20: Operation And Use
Operation and use User Manual Handheld focX®2 Operation and use Operating elements Abbreviation: Hardkey (keys with fixed functions) Emergency Call Button USB connection Volume control +/- Send button On/Off button LAS button Exit button Talk button (PTT) Headphone connection / headset Keyboard Figure 2 User interface... -
Page 21: Switching The Device On And Off
User Manual Operation and use Handheld focX®2 section and a speaker for hands-free operation on the back of the device. The device can also be used in noisy environments. Microphone The microphone is used for voice communication between the participants. The handheld is equipped with one microphone. -
Page 22: Operation Touch Display
Operation and use User Manual Handheld focX®2 Emergency: Public emergency call is initiated. Confirm with Off. The device disconnects the connection. The display and keypad lighting is switched off. All existing call connections are terminated. The temporary functional numbers are deregistered. The device switches itself off after a short time. -
Page 23: Maintenance And Instructions
User Manual Maintenance and instructions Handheld focX®2 Maintenance and instructions This chapter describes the necessary preventive maintenance work. The following table contains the steps necessary to ensure reliable, sustained fault-free operation. Inspection Work to do Remark Visual inspection Visual inspection for external damage Replace affected device. -
Page 24: Update
The file must first be copied to the device via USB. This file must be stored on the device in the download directory. The file is provided by Funkwerk. Connect the device to Connect the USB-C cable to the corresponding port on the device. - Page 25 User Manual Maintenance and instructions Handheld focX®2 focX 2 App Open menu Settings > Update. The password input dialogue box appears. Enter password 6666 7. Confirm entry with OK. Note: If an invalid password is entered, the system returns to the menu.
-
Page 26: Update Gsm-R Module
Prerequisite: The file must first be copied to the device via USB. This file must be stored on the device in the download directory. The file is provided by Funkwerk. Open Menu Settings > Update > GSM-R Modem. Select file. -
Page 27: Decommissioning
User Manual Decommissioning Handheld focX®2 Decommissioning Permanent Decommissioning If the device is to be permanently removed from service or prior to disposal, the following actions are required: ► Delete data worth protecting. Data that should be protected from unauthorised access, such as voice recordings, phone book entries, RF field monitoring data and other recordings must be deleted. -
Page 28: Returns
Returns Returning defective and to be disposed of devices: ► Unless agreed otherwise, return the defective devices to the manufacturer, if possible in the original packaging of the replacement device. Funkwerk Systems GmbH Im Funkwerk 5 99625 Kölleda Germany ► If the original packaging is no longer available for return transport, a standard ESD packaging must be used. -
Page 29: Disposal
User Manual Disposal Handheld focX®2 Disposal This symbol reminds you that electrical equipment must never be disposed of in the household waste. Instead, hand in the handheld to a collection point for electrical equipment, which then recycles the product. Hand in this electrical and electronic equipment and all the device components, e.g. used batteries, to a public collection point for electronic waste. -
Page 30: List Of Figures
List of figures User Manual Handheld focX®2 List of figures Figure 1 Device overview ..............11 Figure 2 User interface ................ 20 30 | 32 1405.150.10001.BH.EN.8 | 1.0.0... -
Page 31: List Of Tables
User Manual List of tables Handheld focX®2 List of tables Table 1 Technical data ................ 14 Table 2 Maintenance ................23 1405.150.10001.BH.EN.8 | 1.0.0 31 | 32... -
Page 32: List Of Abbreviations
List of abbreviations User Manual Handheld focX®2 List of abbreviations Norm adopted by the Deutsches Institut für Normung (German Standards Organization) Europäische Gemeinschaft (European Union) EIRENE European Integrated Radio Enhanced Network Electromagnetic Compatibility European Norm FFFIS Form Fit Function Interface Specification EIRENE Functional Requirement Specification Global Positioning System Gerätestand (device state)
