Summary of Contents for Lectron LESSTNEMA 1030

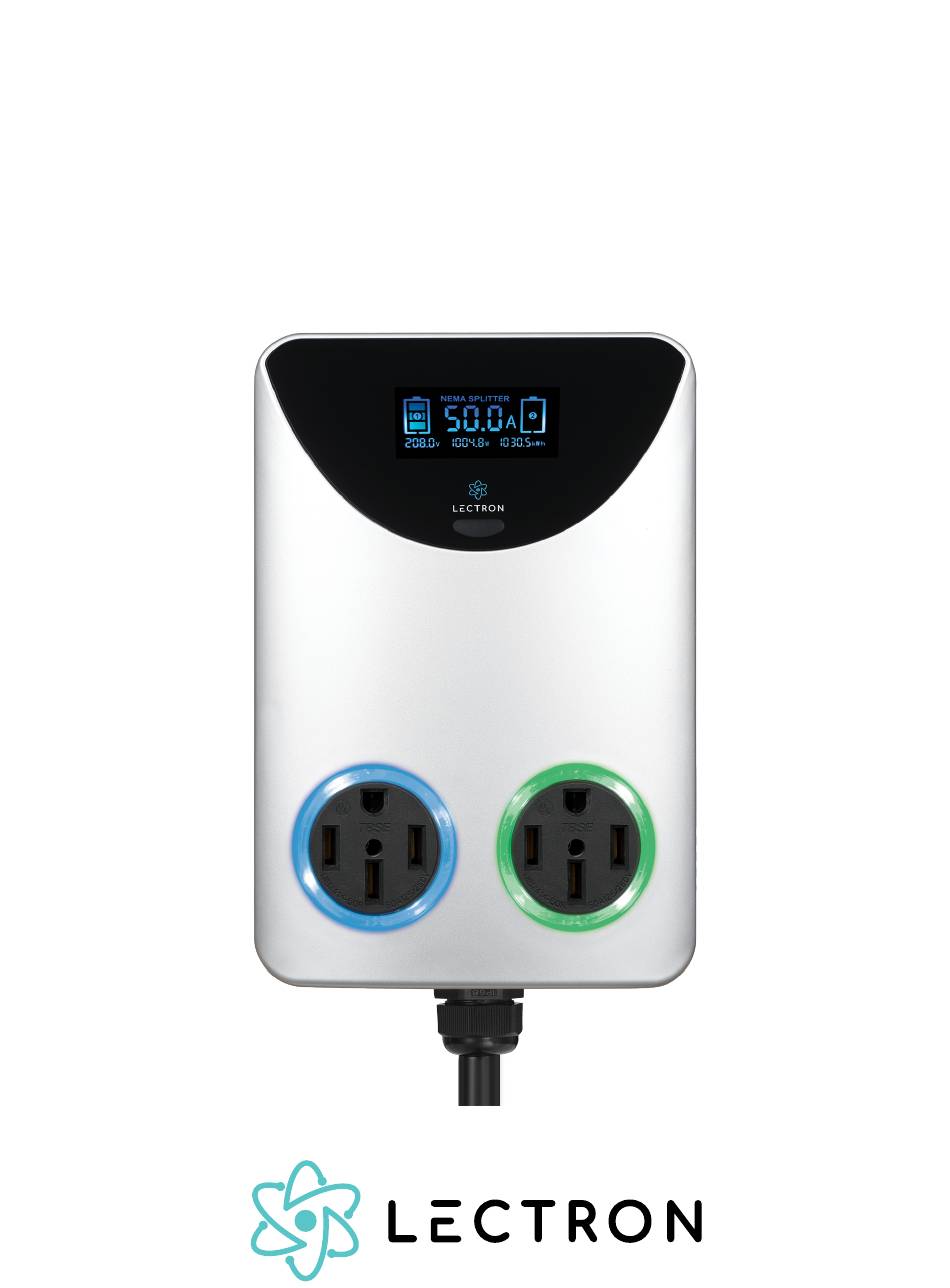

- Page 1 NEMA Socket Splitter USER MANUAL...
- Page 2 About the NEMA Socket Splitter The Lectron NEMA Socket Splitter converts one NEMA socket into two, allowing you to power your EV charger and high-powered appliances from the same outlet, eliminating the expensive installation costs and the need for a dedicated circuit for charging your EV.
- Page 3 • Do not attempt to open, disassemble, repair, tamper with, or modify the socket splitter. Contact LECTRON for any repairs. • To prevent damage to the splitter or any of its components, handle it with care when using or transporting.
- Page 4 Intro to Parts 1. screen 6. secondary socket 2. screen button 7. inlet plug cable 3. circuit breaker 8. LED ring (secondary) 4. primary socket 9. plug 5. LED ring (primary) 10. mounting plate Compatible Wall Sockets This user manual covers four different NEMA socket combinations. Inlet plug Primary socket Secondary socket...
-
Page 5: Reading The Lcd Screen
Reading the LCD Screen name ampere NE MA SP LIT T E R 50.0 primary secondary socket socket 208.0 1004.8 1030.5 kW-h volts watts kilowatts-hour Adjusting the Screen 1. Press the screen button once to turn on the LCD screen. 2. -
Page 6: How To Install
LED Ring Color Description Blue ready to charge Running charging in progress green light Green fully charged secondary socket has no volts or current (Contact us for repair， do NOT use again） N E MA S P LITT E R --.- ---.- ----.-... - Page 7 2. Attach the NEMA Socket Splitter by lining up the slots at the back with the tabs on the mounting plate. 3. Insert the short screws into the holes at the sides of the NEMA Socket Splitter. 4. Plug the power cable into a corresponding NEMA outlet. NEMA 10-30 NEMA 14-50 Page 6...
- Page 8 5. Flip the circuit breaker to the ON position (located on the side of the NEMA Socket Splitter). 6. Plug your EV charger into the corresponding NEMA outlet at the front of the NEMA Socket Splitter. 7. Power on your EV charger and begin charging. NEM A SPLI TT ER 50.0 208.0...
-
Page 9: Troubleshooting
Troubleshooting Issue Resolution The LCD screen isn’ t turning on. Is power available? Check that the wall socket has power. Check that the wall plug is plugged in fully. Check that the circuit breaker on the side of the device is on. The pins on the cable do not It is possible that the wrong model was ordered. -
Page 10: Specifications
Specifications Models Parameter LESSTNEMA LESSTNEMA 1030-1030US 1450-1450US Maximum Load 240V AC 30A 240V AC 50A Nominal intended North American 100V ~ 240V power Frequency 50Hz / 60Hz 30A （TRIP 37.5A） 50A （TRIP 62.5A） Circuit breaker Plug NEMA 10-30 NEMA 14-50 Power output NEMA 10-30 NEMA 14-50... - Page 11 Get More Support Scan the QR code below or email us at contact@ev-lectron.com. www.ev-lectron.com Made in China...
