Summary of Contents for ANEP BOX TX+
Page 1

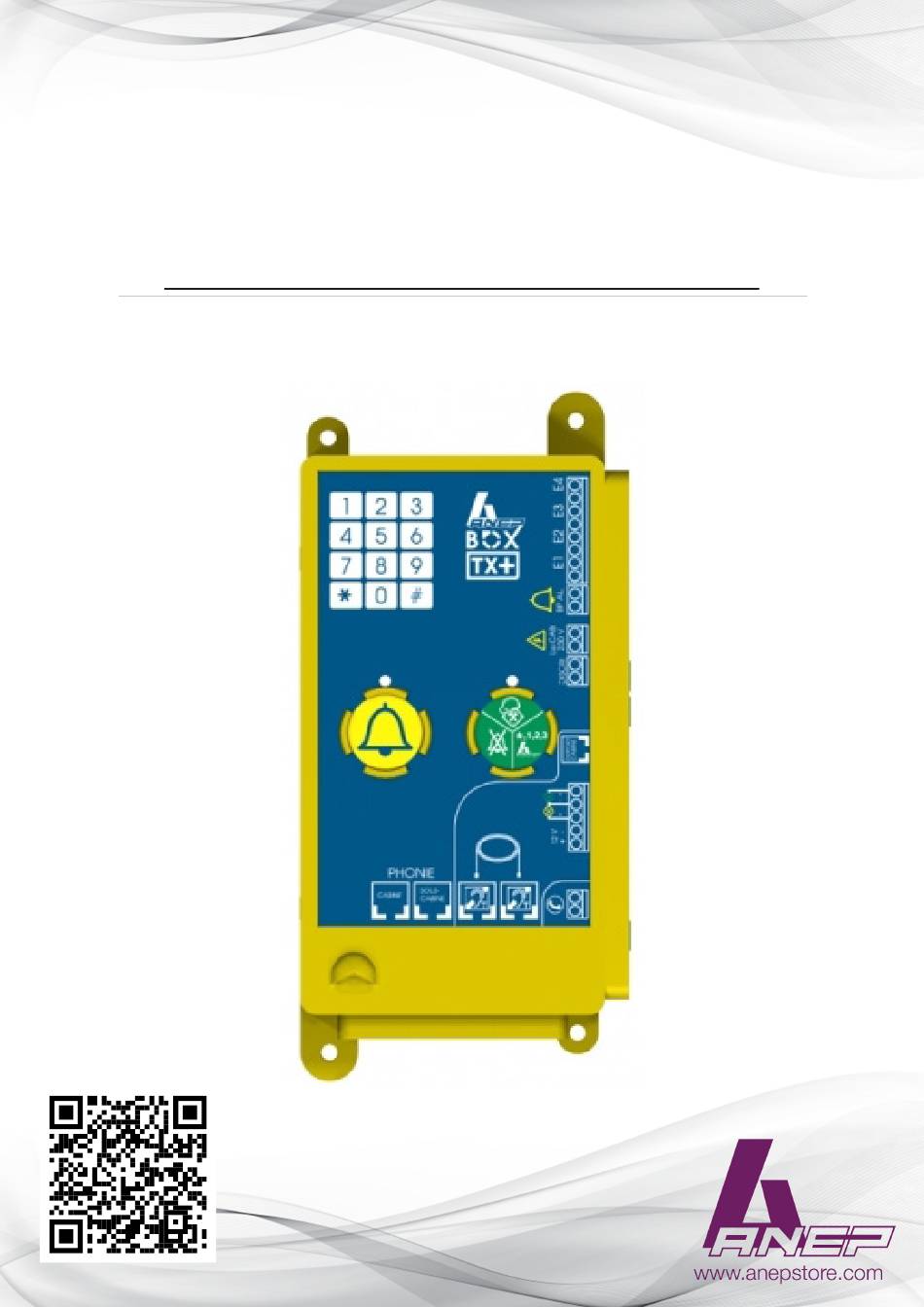

ANEP BOX TX+ REMOTE ELEVATOR ALARM OPERATION CONTROL SCALABLE MULTI-LIFT INTERCOM AND VOICE SYSTEM SCALABLE MULTI-LIFT INTERCOM AND VOICE SYSTEM NT_ANEP_BOX_TX+_EN_04-07-2023...
This documentation is aimed at professionals who are trained and experienced in the lift industry. 1.1 - Installation / Commissioning Consequently, when working on an elevator to install ANEP equipment, safety rules specific to the profession must be respected. ● Use of «Personal Protective Equipment».
2 - GENERAL 2.1 - Technical data • Complies with European standards EN81-28 (2003 and 2018) and EN81-70*. • Integrated or remote voice modules • Triphonic function by adding BOX-SC or BOX-C modules • Cabin roof mounting • Remote-powered via analog telephone line or powered if the magnetic loop or green/ yellow LEDs are connected •...
3.1 - SENSOR CONNECTION Car door open/close and elevator travel information are connected to ANEP BOX inputs E1 to E4. E1 - Cabin door OPEN These inputs are provided with dry, potential-free contacts.. E2 - Cabin door CLOSED E3 - Magnetic sensor HIGH E4 - Magnetic sensor LOW Note: These 4 items of information are compulsory for the statements to work..
3.2 - CONNECTION OF POSITION / OFFSET SENSORS [E3] AND [E4]. SETUP ≤ 10mm UMPTEENTH LEVEL Counting magnets Height = 50 mm 4th LEVEL 15° MAX 3rd LEVEL Resetting magnet * Height = 200 mm (*) NOTE : The resetting magnet is to be placed at 2nd LEVEL the level where the cab passes most often (Example: Ground floor for an R+4)
3.2.1 - Elevator with short floors The minimum value for detecting short floors is 700mm between two floors (floor information). ELEVATION ELEVATOR SHAFT (example) COUNTING MAGNETS floor 1st floor Decrease sensors spacing allows reconciliation counting magnets Ground floor High Ground floor CABIN UNDERGROUND A counting magnet must...
3.3 - PO* and PF** sensor connection [E3] and [E4]. * DO = Door Open ** DC = Door Closed 3.3.1 - Single-access elevator. Door information DO/DC is connected to inputs E1 (DO) and E2 (DC). DOOR DOOR 3.3.2 - Dual-access elevator.
3.4 Programming for special cases 3.4.1 - Elevator with fully manual doors The «Inactivity» time delay value must be greater than that for an elevator with automatic doors. (Manual door closing). All door faults must be deprogrammed, as door opening and closing depends on the user. 3.4.2 - Elevator with mixed doors (swing and automatic) Programming: swing doors (even if only one swing door).
4 - YELLOW & GREEN LED CONNECTION (if MIDIS absent) - Connect indicator lights used in the cab in accordance with standards NF EN 81.28 of 2003 or 2018 and 81.70 (12Vdc / 140 mA max per light) (see Page 14). - Connect a 12Vdc power supply (from 9 to 15Vdc) type ALIM CONTROL-II.
º ºÞ Þ ºÞ Þ Programming on ANEP BOX keypad After activating the programming access mode Ý1 2 3 Validates management of Yellow and Green LEDs to 2003 standards #41 7# standards Validates the management of Yellow and Green lights to 2018...
ANEP BOX TX+ beeps 3 times 5.2 - Internal discrimination In this mode, ANEP BOX TX+ processes the opening and closing of car and landing doors, as well as the movement of the elevator. Inputs E1, E2 receive the DO, DC contacts of the cabin door.
6 - ADDRESSING AND PROGRAMMING THE TRANSMITTER NUMBER Programming the transmitter number (or Identifier or PROM) : The ANEP BOX module identifies itself in data mode by sending its «Transmitter number» (also called Identifier or PROM depending on the call center).
7 - PROGRAMMATION (ANEP BOX hung up) Important : • All ANEP BOX TX+ devices connected to the same telephone line must be connected to enable access to programming mode. • Programming is performed using the ANEP BOX TX+ keypad.
7.3 - Choice of telephone network The BOX TX+ module uses a telephone network to transfer alarms to a reception center. To ensure correct operation of the equipment, it is important to indicate the type of network between : - Switched telephone network (analog PSTN), - GSM Gateway, - Autocom mode.
7.3.2 - Autocom mode and/or low line voltage If your equipment is connected to an Orange (or other operator) line, but the line voltage at rest is low (less than 28V), you must configure your equipment in «Autocom Mode and/or Low Line Voltage» (20V <= Line Voltage < 28V ). Pour cela, effectuer la séquence de programmation suivante In programming mode Ý1 2 3 à...
Page 21
7.4 - Number programming 7.4.1 - Programming a memory Example: Programming Memory 101 (Main phone call) In programming mode Ý12 3 à Press the #101 The device emits a melody Composer le numéro d’appel suivi de la touche # à The device emits a melody 7.4.2 - Programmation d’une mémoire avec pause In the case of installation behind a private branch exchange, it is necessary to...
Page 22
Memory 102 7.5.1 - Transfer method ANEP devices can be programmed according to the desired use and the technology used at the alarm reception center, and the identification of the location and establishment of voice communication can be carried out in a single communication, or in two separate communications.
Page 23
Press the # 3 0 2 4 5 # 7.7 - Blocked person call acknowledgement (EN81-28) by #1 When this function is enabled, an alarm call from ANEP BOX must be acknowledged by the operator by dialing «#1» on the telephone keypad (in DTMF mode) during voice communication.
Page 24
7.9 - Cabin phone sound level adjustment After programming, trigger a call by pressing the alarm button in the cabin for ANEP BOX or the button. The following settings are available to adapt ANEP BOX sound levels and microphone/speaker to local conditions. à Key 6 = Key 9 = —...
Page 25
7.10 - Periodic call validation (or cyclic test) A «site card» must first be created using ANEPcenter® software (see ANEPcenter® manual) or a call center equipped with ANEP protocol. In programming mode Ý1 2 3 à Successively press the # 10 5 The unit emits 3 «beeps»...
Page 26
7.11.1 - Call management Cyclic test If memory 106 is programmed, all calls made from memories 101 to 105 are sent to systematic memory 106. It is possible not to send the cyclic call to ANEPAnywhere®. To validate the cyclic call to ANEPanywhere® (default) à...
Page 27
(1 = min gain, 15 = max gain) 7.13 - Listening to data exchange To let the elevator technician know that the ANEP-BOX module is communicating with a central reception unit, all data exchanges are audible (low level) through the ANEP-BOX loudspeaker.
Page 28
7.15 - Cabin light control timer ANEP BOX TX+ controls the «Cabin light» voltage (230Vac). The fault and the return of this voltage are transmitted to a central receiver (Telephone memory 104). The time delay for acknowledging the return of voltage is set to 2 min.
Page 29
5 minutes. à In programming mode Ý1 2 3 Press #306 2 to confirm the function ANEP-BOX emits «3 beeps» Press # to confirm u Start of visit Maintenance The presence of a voltage (5V to 230V) on the input for 5 seconds activates the «Maintenance visit»...
Page 30
7.16 - Management of extensions on the DISCRI input. Depending on the type of function required, the «DISCRI» input can be used to connect an optional extension. OPEN DOOR, using an external device (such as Prudhomme etc ...), it is possible to detect and make a call when a door is open to empty space.
Page 31
Press #305 xx # to confirm the function xx is the landing door opening delay value (step is 2.5 sec). ANEP-BOX emits «3 beeps» Press # to confirm If xx is set to 0, the input is used for external discrimination (default value, see CABIN ALARM DISCRIMINATION on page 15).
Page 32
To validate the Up/Down send function : à In programming mode Ý1 2 3 Press #704# to validate the BOX-ENVOIS function ANEP-BOX emits «3 beeps» Pour dévalider la fonction d'envois Haut / Bas (par défaut) : à In programming mode Ý1 2 3 Press #705# to disable the BOX-ENVOIS function ANEP-BOX emits «3 beeps»...
Page 33
Press the cabin alarm button. If discrimination is not activated, the voice message «Your call has been recorded, please wait» is played and ANEP BOX calls the correspondent (see page 15). «Beeps» are emitted every 6 seconds if there is silence, to indicate that the device is on line.
Page 34
Hang-up occurs automatically when the telephone line is busy or when the call duration has expired (default: 3 minutes). Busy signal : OCCUPANCY SIGNAL ANEP BOX emits a melody 10 seconds before the end of the programmed communication timer (see 7/8 page 24). NT_ANEP_BOX_TX+_EN_04-07-2023...
Page 35
8.5 - Green button functions 1 - Technician presence» function The green technician presence button informs the service center of the presence of a technician on the elevator. Pressing the button triggers a «Technician present» voice announcement, followed by a call to send the information. A second press triggers a voice announcement «Technician departure»...
Page 36
9 - BOX TX+ FUNCTIONS The TX+ version of ANEP BOX includes all the functions of the TX version and adds : 1 - Voice synthesis on triggering of blocked user alarm, 2 - Alarm siren function (HP in buzzer function)
Page 37
à Example : 12h09 => «ONE», «TWO», «ZERO», «NINE» will be announced 9.4 - Floor statement ANEP BOX TX+ includes the option of announcing floors when doors open. This function requires a 12Vdc power supply (ALIM-CONTROL II type). Level-based statements can be programmed and verified either locally or remotely via ANEPCenter®.
Page 38
9.4.1 - Statement validation In programming mode Ý1 2 3 à Press #603 in succession Press the «#» key to validate à The device emits a melody The floor announcement at door opening and the message announcing door closure will be broadcast from 8 a.m. to 8 p.m. or permanently. 9.4.2 - Devaluing statements In programming mode Ý1 2 3 à...
Page 40
Press #602 81 in succession Validate with #, the synthesis emits a «gong». , Finish by pressing twice on the Ý Note: The ANEP BOX TX+ clock must be programmed beforehand by trig gering a cyclic call. 9.4.5 - Indication of floor announcement period As soon as you enter programming mode, the green/yellow LEDs indicate the period for broadcasting floor announcements.
Page 41
à Press key 6 on the phone, the 1kHz frequency should be audible. If several ANEP BOX TX+ are on the same telephone line, (see diagram on page 17) each BOX have different module numbers (1: master BOX, 2 to 8: secondary BOXes) and only the master BOX picks up initially: - Wait for the master BOX to go off-hook.
Page 42
12 - PRESENTATION OF THE TX+ VERSION The ANEP BOX TX+ product incorporates a method for monitoring elevator operation, enabling information to be sent remotely (elevator or product malfunctions) via the telephone network (wired or GSM). (elevator or product malfunctions) remotely via the telephone network (wired or GSM).
Page 43
- Swing doors: dial sequence #602 72 # ANEP BOX TX+ announces «Validated » ANEP BOX TX+ allows 4 minutes to start the learning phase from the lowest level. To exit programming mode, press « Ý » twice for all TX+ mode settings.
Page 46
«nn» is the event reference to be validated. #601 5 n n # At the end of the sequence, ANEP BOX TX+ announces «Not validated». Exemple : to disable reference 8, dial #601 5 8 #. 12.2.3 - Event references Fault / Event Ref.
Page 47
The notion of inactivity is a period of time during which the elevator is not moving. Programming of the time after which the fault will be transmitted (number of hours of inactivity) IMPORTANT : ANEP BOX TX+ only checks for elevator inactivity between 8:00 and 20:00. In programming mode Ý123 à...
Page 48
12.2.7 – Technical fault filtering It is possible to delay the triggering of technical faults, In programming mode Ý123 à Dial sequence #3 0 9 x x # xx is the filter delay value. This value can be programmed from 0 to 99, where the step size is 1 min (99 =140 min).
Page 49
Leave the elevator in normal parking mode for 7 minutes; no calls should be triggered (listening for DATA transfers). Fault tests: Block the cabin between floors and wait 7 minutes, ANEP BOX must call and send the «cabin blocked between floors» fault, check with the remote supervisor that the event has occurred.
Page 50
13 - KEYBOARD PROGRAMMING TABLE Entering and exiting programming mode + < Access Code > Switch to settings mode Ý Exit programming mode Ý #0... Setting #001# Reset settings and Tel no. #002...# New Access Code #1... Tel. number #101...# Main phone number for voice call #102...# Emergency phone number for voice call #104...# Tel.
13 - KEYBOARD PROGRAMMING TABLE (CONTINUED) #4... Configuration #401# Enable siren function #402# Disable siren function #403# AUTOCOM mode #404# Standard mode #405# Enable GSM mode #406# GSM Mode disabling #407# Microphone gain adjustment (For BOX-M intercom) #408# Loudspeaker gain setting (For BOX-M intercom) #417# Yellow/Green LED management validation to 2003 standards (default) #418#...
Page 52
13 - KEYBOARD PROGRAMMING TABLE (CONTINUED) #9... Extension configuration Cyclic test N°2 activated (if MEM 106 is programmed) #901# Cyclic test N°2 deactivated #902# 14 - KEYBOARD PROGRAMMING TABLE WITH BOX-INTENS (CONTINUED) IF BOX-INTENS INSTALLED optional (see also NOTICE BOX-INTENS) Inactivity fault managed by day timer at any time.
Page 55
ANEP cannot under any circumstances be held liable for any loss of data, as well as any particular damage or incident, resulting from poor implementation or non-compliant use of the product.
Page 56
TH E AF T ER SALES SER VI CE I S P R OV I DE D B Y 4 bis rue de Paris 94470 Boissy-Saint-Léger Tél : +33 1 45 98 34 44 Website : www.anepstore.com NT_ANEP_BOX_TX+_EN_04-07-2023...
