Summary of Contents for Agrimate AM 530H PRO 2S

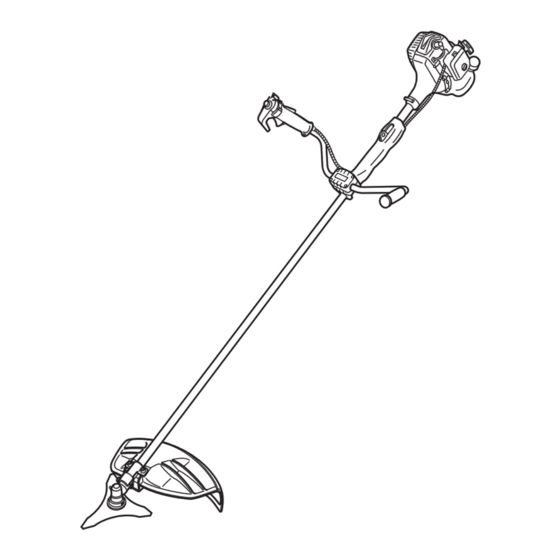

- Page 1 AM 530H PRO 2S Weedcutter DISCLAIMER: DUE TO CONSTANT UPGRADATION, FEATURES AND SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE BEFORE OPERATING THIS MACHINE, PLEASE READ THESE INSTRUCTIONS CAREFULLY...
- Page 2 SAFETY FIRST Instructions contained in warnings within this manual marked with a symbol concern critical points which must be taken into consideration to prevent possible serious bodily injury, and for this reason you are requested to read all such instructions carefully and follow them without fail.
-
Page 3: Table Of Contents
Contents TECHNICAL DATA SYMBOL FOR SAFE OPERATION SET UP FUEL & OIL MIXTURE PREPARING FOR OPERATIONS OPERATION MAINTENANCE & CARE TRANSPORT & STORAGE TROUBLE SHOOTING GUIDE... -
Page 5: Technical Data
~~~~~~~~~~~~~~~~~~~ TECHNICAL DATA~~~~~~~~~~~~~~~~~~~~ AM 530H PRO 2S c i t f i r bevel gear; Drive shaft Maximum speed of gear shaft /engine speed (r/min) 9500/12295 / r ( ±280 Equivalent vibration level(m/s² ) Nylon head (in accordance with EN ISO 22867) -
Page 6: For Safe Operation
If warning label peels off or becomes soiled and impossible to read, you should contact the dealer from which you purchased the product to order new labels and affix them in the required location(s). Never modify your machine.We won’t warrant the machine, if you use the remodeled brushcutter or if you don’t observe the proper usage written in the manual. - Page 7 2.And you should carry with you. (1)Attached tools;(2)Properly reserved fuel;(3)Spare blade;(4)Things to notify your working area (rope, warning signs);(5) Whistle (for collaboration or emergency);(6) Hatchet or saw (for removal of obstacles). 3. Do not wear loose clothing, jewelry, short trousers, sandals, or go barefoot. Do not wear anything which might be caught by a moving part of the unit.
- Page 8 exists that your judgment might be impaired or that you might not be able to operate the product properly and in a safe manner. 2. When planning your work schedule, allow plenty of time to rest.Limit the amount of time over which the product is to be used continuously to somewhere around 30 ~ 40 minutes per session, and take 10 ~ 20 minutes of rest between work sessions.
- Page 9 more persons, care should also be taken to constantly look around or otherwise check for the presence and locations of other people working so as to maintain a distance between each person sufficient to ensure safety. 2. Check the condition of working area to avoid any accident by hitting hidden obstacles such as stumps, stones, cans, or broken glass.
- Page 10 Never place the throttle into the high-speed position when starting the engine. 3. After starting the engine, check to make sure that the cutting attachment stops rotating when the throttle is moved fully back to its original position. If it continues to rotate even after the throttle has been moved fully back, turn off the engine and take the unit to your authorized KOMATSU ZENOAH servicing dealer for repair.
- Page 11 surfaces. 6. Never touch the muffler, spark plug, or other metallic parts of the engine while the engine is in operation or immediately after shutting down the engine. Doing so could result in serious burns or electrical shock. • IF SOMEONE COMES 1.
- Page 12 use with the HUASHENGTAISHAN product. 4. In the event that any part must be replaced or any maintenance or repair work not described in this manual must be performed, please contact a representative from the store nearest HUASHENGTAISHAN authorized servicing dealer for assistance.
-
Page 13: Set Up
5. After refueling, screw the fuel cap back tightly onto the fuel tank and then carry the unit to a spot 3 m or more away from where it was refueled before turning on the engine. TRANSPORTATION 1. When hand-carrying the product,cover over the cutting part if necessary, lift up the product and carry it paying attention to the blade. - Page 14 2.Remove the nut (Lefthanded) and the outer holder(3) from the gearshaft. 3. Put the blade onto the inner holder(2). Make the marked side face the holder. 4.Put the outer holder(3) onto the gearshaft making the recessed side face the blade. 5.Fasten the blade by the nut and the cover(4).
-
Page 15: Fuel&Oil Mixture
FUEL&OIL MIXTURE As for details of quality assurance, read the descrip- tion in the section Limited Warranty carefully. Moreover, normal wear and change in product with no functional influence are not covered by the warranty. - Page 16 Also, be careful that, if the usage in the instruction manual is not observed as to the mixed gasoline,etc. described therein, it may not be covered by the warranty.
-
Page 17: Operation
OPERATION MAINTENANCE&CARE REFILLING TRIMMING LINE 1. For replacement line, use a diameter of 2.4mm(.095in).The spool is capable... - Page 18 for a line upto 6m(20ft) on the 10cm(4”) head. Avoid using a larger line as it may cut down the trimming performance. For safety reasons, do not use metalreinforced line. 2.Pinch the slotted area on the both sides of the spool housing to unhook the bottom cap.
- Page 19 BLADE • Check the blade and the fasteners for looseness, cracking, or bending. • Check the cutting edges and reform with a flat file. Point : 1. Keep the end corner sharp. 2. Round the root of the edge, using round file. 3.
- Page 20 GEAR CASE • The reduction gears are lubricated by multipurpose,lithium-based grease in...
- Page 21 the gear case. Supply new grease every 25 hours of use or more often depending on the job condition. • Remove the bolt of the grease nipple and the bolt opposite side of the grease nipple. Install new grease into the grease nipple to arrange for old grease to exit from the opposite side.
- Page 25 ENGINE DIAGRAM OF AM-530H-PRO-2S WEED CUTTER...
- Page 26 ENGINE SPARE PARTS LIST OF AM-530H-PRO-2S WEED CUTTER SR. NO. PART NO. DESCRIPTION AM 530H-E-01 Bolt M5 x 35 AM 530H-E-02 Starter AM 530H-E-03 Start Claw AM 530H-E-04 Start Spring AM 530H-E-05 Start Reel AM 530H-E-06 Stop Ring 4 AM 530H-E-07 Start Reel Ass’y AM 530H-E-08 Oil-seal...
- Page 27 ENGINE SPARE PARTS LIST OF AM-530H-PRO-2S WEED CUTTER SR. NO. PART NO. DESCRIPTION AM 530H-E-37 Bolt M5 x 20 AM 530H-E-38 Spark Plug AM 530H-E-39 Spring AM 530H-E-40 AM 530H-E-41 Bolt M5 x 16 AM 530H-E-42 Gasket AM 530H-E-43 Gasket AM 530H-E-44 Muffler AM 530H-E-45...
- Page 28 TRANSMISSION DIAGRAM & SPARE PARTS OF AM 530H PRO 2S Sr. NO. Part NO. Part Name AM 530H-TA Gear Case Ass‘y AM 530H-TA-01 Stop Ring 28 AM 530H-TA-02 Stop Ring 12 AM 530H-TA-03 Bearing 6001-2RS/P5 AM 530H-TA-04 Bearing 6001/P5 AM 530H-TA-05...
- Page 29 TRANSMISSION DIAGRAM & SPARE PARTS OF AM 530H PRO 2S Sr. NO. Part NO. Part Name AM 530H-TC Clutch Comp. AM 530H-TC-01 Clutch Drum Comp AM 530H-TC-02 Stop Ring 35 AM 530H-TC-03 Bearing 6202-2RS/P5 AM 530H-TC-04 Stop Ring 15 AM 530H-TC-05 AM 530H-TC-06 Screw M6×20...
- Page 30 TRANSMISSION DIAGRAM & SPARE PARTS OF AM 530H PRO 2S Sr. NO. Part NO. Part Name AM 530H-TE Lever Ass‘y AM 530H-TE-01 Button AM 530H-TE-02 Box,Left AM 530H-TE-03 Handgrip AM 530H-TE-04 AM 530H-TE-05 AM 530H-TE-06 AM 530H-TE-07 Screw M5×12 AM 530H-TE-08...
- Page 31 TRANSMISSION DIAGRAM & SPARE PARTS OF AM 530H PRO 2S Sr. NO. Part NO. Part Name AM 530H-TG Cuard Ass‘y AM 530H-TG-01 Safety Guard Bracket AM 530H-TG-02 Screw M5×20 AM 530H-TG-03 Screw ST4.2×16 AM 530H-TG-04 Safety Guard AM 530H-TG-05 Guard Ass‘y...
- Page 32 INSPECTION & MAINTENANCE For safety use, make sure the machine is cleaned every three-months. Before working, make sure to inspect the filter and the nozzle,and ensure there is no impurity. After working, make sure there is no water in the pump and the hose. If the machine needs to be repaired in the guarantee period, please return the machine to the shop.
- Page 33 Warranty Card CUSTOMER COPY Purchaser’s Name & Address Date of Delivery Dealer’s Office Seal Product Name AM 530H PRO 2S WEED CUTTER Product Serial No. Dealer Sign Customer Sign. Invoice / DN No. I/We accept the terms and conditions of Warranty as in the Warranty Card.
- Page 34 1. LIMITED WARRANTY PERIOD : For a period of six months from the date of Sale / delivery of the product which ever is earlier. 2. LIMITED WARRANTY OBLIGATION : Replacement of defective part(s) by authorized dealer are free of charges. If found defective by reasons of defective material / poor workmanship, parts will be replaced and there will be no value re-imbursement.
- Page 35 ISO 9001-2008 CERTIFIED COMPANY FREE SERVICE COUPON (30 Days / 20 hrs (Which ever is earlier) Model Serial Number AM 530H PRO 2S WEED CUTTER PDI Date Service No. Operations: • Check and Test the Fuel Mixture. • Check and Clean the Air Filter Purchase bill no.
- Page 36 Small Maintenance. Big Savings. Small Maintenance. Big Savings. Small Maintenance. Big Savings.
- Page 37 Do’s Don’ts • Always read the instruction manual supplied along with the equipments and understand the correct installation and operating procedures before attempting to use the equipments. • It is important to use the personal protection equipments such as head helmet with visor, ear defenders, goggles, safety gloves, cut resistant shoes, trousers and jackets while operating potentially dangerous machines.
- Page 38 Agrimate Army For Pest Control ANY WHERE - ANY TIME - ANY CROP RATNAGIRI IMPEX PVT LTD Annapurna House, #1/1G, 7th Cross, New Guddadahalli Mysore Road, Bangalore-560 026 Customer Care: 1800-425-3036 email: marketing@ratnagiriimpex.com www.ratnagiriimpex.com AN ISO 9001:2008 CERTIFIED COMPANY...
