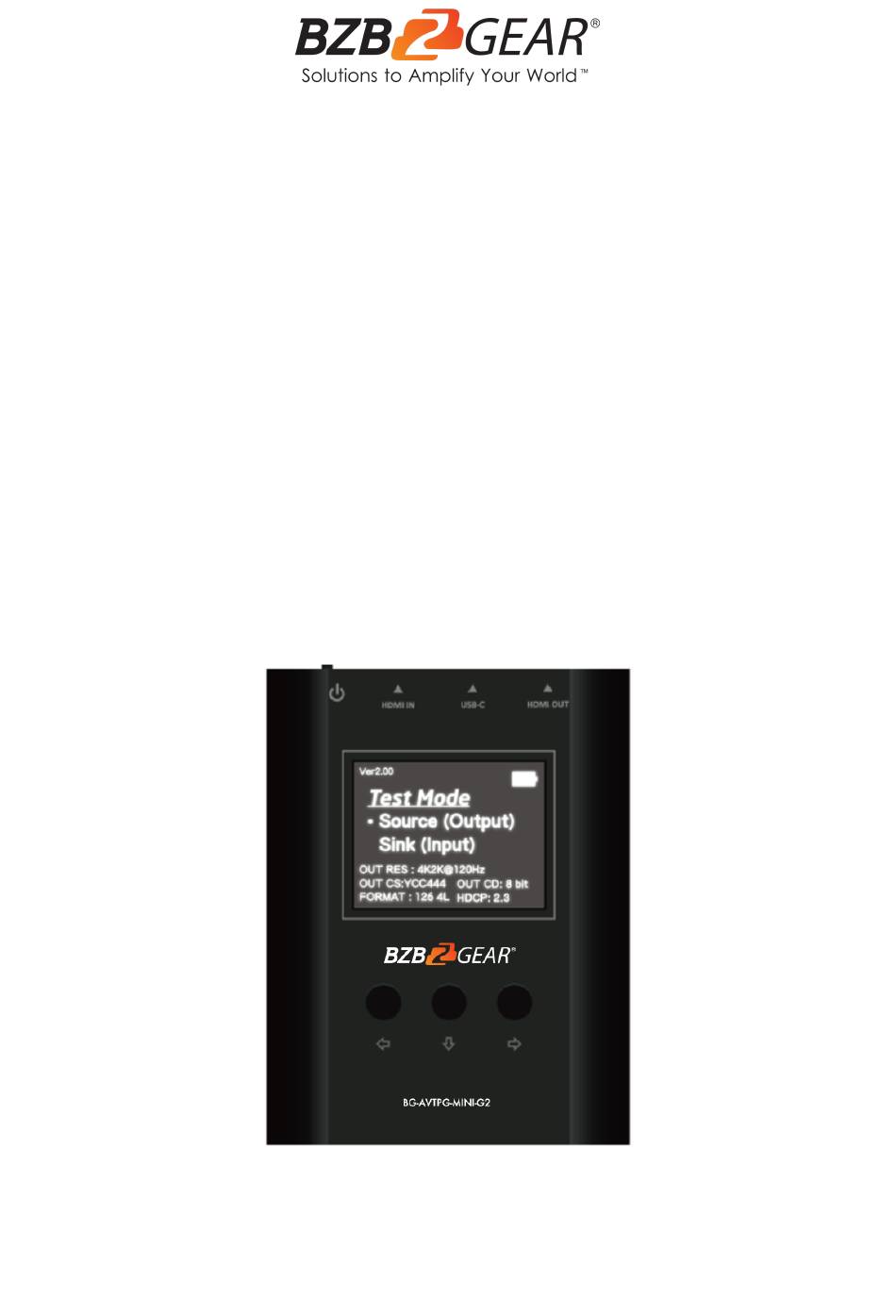

- Page 1 BG-AVTPG-MINI-G2 HDMI 2.1 8K Signal Generator and Analyzer User Manual...
- Page 2 BZBGEAR BG-AVTPG-MINI-G2 PRODUCT MANUAL · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...
-
Page 3: Table Of Contents
BZBGEAR BG-AVTPG-MINI-G2 PRODUCT MANUAL Table of Contents Statement Safety Precaution Introduction Features Packing List Specifications Operation Controls and Functions Connection Diagram Menu Operation Operation Approach Tech Support Warranty Mission Statement Copyright · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com... -
Page 4: Statement
● This product does not contain parts that can be maintained or repaired by users. Damage caused by dismantling the product without authorization from BZBGEAR is not covered under the warranty policy. ● Installation and use of this product must strictly comply with local electrical safety standards. -
Page 5: Introduction
HDMI signals and detect important HDMI features. With the help of the BG-AVTPG-MINI-G2, installers can easily set up and test HDMI equipment in seconds. In "Source" mode, the BG-AVTPG-MINI-G2 provides reliable video patterns up to HDMI 2.1 8K60 4:2:0 10bit, 8K30 4:4:4 &... -
Page 6: Packing List
BZBGEAR BG-AVTPG-MINI-G2 PRODUCT MANUAL Packing List ● 1x BG-AVTPG-MINI-G2 ● 1x USB-C cable ● 1x User Manual Specifications Model Name BG-AVTPG-MINI-G2 Technical Specifications Usage HDMI 2.1 Signal Generator and Analyzer Input up to FRL 5 (40G) Video bandwidth Output up to FRL 6 (48G) HDMI compliance HDMI 2.1 and below... -
Page 7: Operation Controls And Functions
BZBGEAR BG-AVTPG-MINI-G2 PRODUCT MANUAL Operation Controls and Functions Front and Top Panels 1. OUTPUT: HDMI output 2. USB-C: Firmware update / Recharge 3. INPUT: HDMI input 4. Power Switch: Power ON/OFF Switch 5. LCD Display: the measured data is shown here 6. -
Page 8: Connection Diagram
BZBGEAR BG-AVTPG-MINI-G2 PRODUCT MANUAL Connection Diagram · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com... -
Page 9: Menu Operation
BZBGEAR BG-AVTPG-MINI-G2 PRODUCT MANUAL Menu Operation Method A: Push Button Menu Item Description Resolution Select the video resolution and bandwidth Select color space (RGB, YCC444, YCC422, Color Space YCC420) Color Depth Select color depth (8 bits, 10 bits, 12 bits) HDCP Enable/Disable HDCP function (1.4/2.3) - Page 10 BZBGEAR BG-AVTPG-MINI-G2 PRODUCT MANUAL Method B: Software Control through USB-C port 1. System Requirement (1) OS Information: Windows XP/7/8.1/10/11 (2) Baud rates: 115200 (3) Software size: 1 MB (4) Minimum RAM requirement: 256 MB · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...
- Page 11 BZBGEAR BG-AVTPG-MINI-G2 PRODUCT MANUAL 1. System Firmware Upgrade: ● ○ Select “USB” as the Connection Interface ○ Click the “Load” button to select the file which you want to upload ○ Click the “start” button ○ Power cycle the device and the firmware will start to update.
-
Page 12: Operation Approach
PRODUCT MANUAL Operation Approach Source Mode When BG-AVTPG-MINI-G2 is treated as a source, it can generate different test patterns and send them to a connected display. How to use Source Mode: ● Make sure the connection between the BG-AVTPG-MINI-G2 HDMI output port and the display is connected properly. - Page 13 ● Set the output signal format and video testing pattern. Sink Mode When BG-AVTPG-MINI-G2 is in sink mode, it can read the HDMI source’s information and in addition, the input HDMI can be passed through to an HDMI capable display if needed (as shown below).
-
Page 14: Tech Support
1.888.499.9906 support@bzbgear.com bzbgear.com Warranty BZBGEAR Pro AV products and cameras come with a three-year warranty. An extended two-year warranty is available for our cameras upon registration for a total of five years. For complete warranty information, please visit bzbgear.com/warranty. For questions, please call 1.888.499.9906 or email support@bzbgear.com. -
Page 15: Mission Statement
AVoIP, professional broadcasting, conferencing, home theater, to live streaming solutions. We pride ourselves on unparalleled customer support and services. Our team offers system design consultation, and highly reviewed technical support for all the products in our catalog. BZBGEAR delivers quality products designed with users in mind. ·... -
Page 16: Copyright
PRODUCT MANUAL Copyright All the contents in this manual and its copyright are owned by BZBGEAR. No one is allowed to imitate, copy, or translate this manual without BZBGEAR’s permission. This manual contains no guarantee, standpoint expression or other implies in any form. Product specification and information in this manual is for reference only and subject to change...
