Summary of Contents for RC REA C187

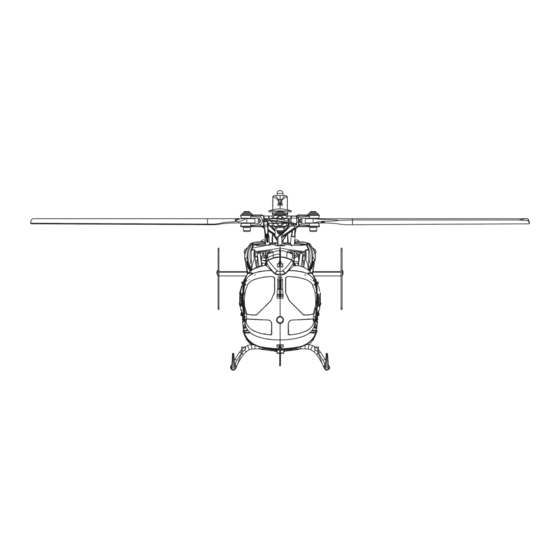

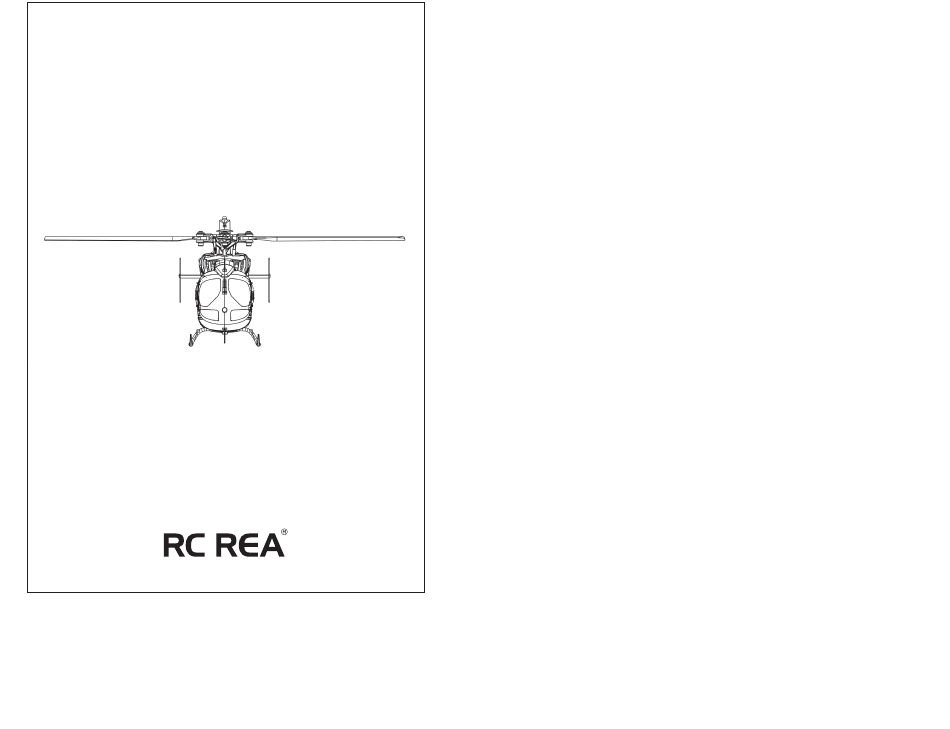

- Page 1 C187 BETRIEB SANLEITUNG/ USER MANUAL...
- Page 2 Important Note C187 Please read the manual to learn the function of the this product before operation. Damage to the product and potential personal injury may occur if you make an operational error. This is a RC helicopter, not a toy. You should not only have a prudent operation, but also to have an operational basis.
- Page 3 Warning And The Guide Of Using Battery C187 Note: Using the original factory USB charger can ensure charging safety. Suggest you use the original factory USB charger part, other chargers may cause battery damage and property damage. Warnings! The battery will fire, explode or leak if not strictly observing this item described below.
- Page 4 C187 Length: 260 mm Height: 80 mm Weight: 100G Propeller length: 256 mm 7.4V 350mAh Flight Time: About 13-15 min. Main Motor: 1020 Tail Motor: 0720 Charge Time: About 45 min. 256mm 80mm 260mm C187 Helicopter Remote Control Lipo battery...
-
Page 6: Charging Method
Batteries Charging Method C187 Charging Method 1: Charging Battery by the USB port on a computer. Description: 1. Connect the USB charger with USB port. 2. Connect the battery with USB charger: LED on when charging, LED OFF when char -... - Page 7 Installation method of remote controller battery C187 Transmitter Direction of operation C187 If you are unfamiliar with the control of the C187, take time to familiarize it before your first flight. Throttle Throttle up Climb Throttle down Decend Rudder left...
- Page 8 Flight Operation Steps C187 1.Turn on the transmitter and let helicopter stay near to transmitter. 2.Install the aircraft battery in the battery compartment safely and securely. Press the power switch for 2 seconds to turn on the aircraft power. 3.The lights of the helicopter and the remote control flash at the same time. Then push the throttle stick from top to bottom quickly.
- Page 9 Note: Beginner should pay attention to the direction of flight. Keep the head forward to avoid causing injury . Flight Yaw correction method C187 Press the triming button when helicopter has yaw problems. The helicopter has set up hovering. If you are dissatisfied with hovering or the helicopter have a yaw, please follow there steps to adjust.
- Page 10 Trimming Notes Warning Maintain a flying altitude above one meter Introduction of the corresponding socket of receiver forward/ reserved right backward channel main motor left tailor motor reserved tail LED channel front LED Gyro calibration method 1. When flying yaw, first land and calibrate the gyroscope. 2.
- Page 11 Commonly used parts replacement instructions C187 Remove the propeller with a hex wrench, Be careful not to be too tight when installing the new propeller Unplug the plug, then twist the motor First pull out the screw, and then pull out left and right to pull out the big gear directly downward.
- Page 12 Abnormal Problem Solving Method C187 The helicopter without bind Bind the transmitter again Chopper power on. Taillight on with the transmitter. Blinking, no response to operation. Check the power supply of Check the installation site of After turning on the chopper helicopter and transmitter;...
- Page 13 C187 MADE IN CHINA...
