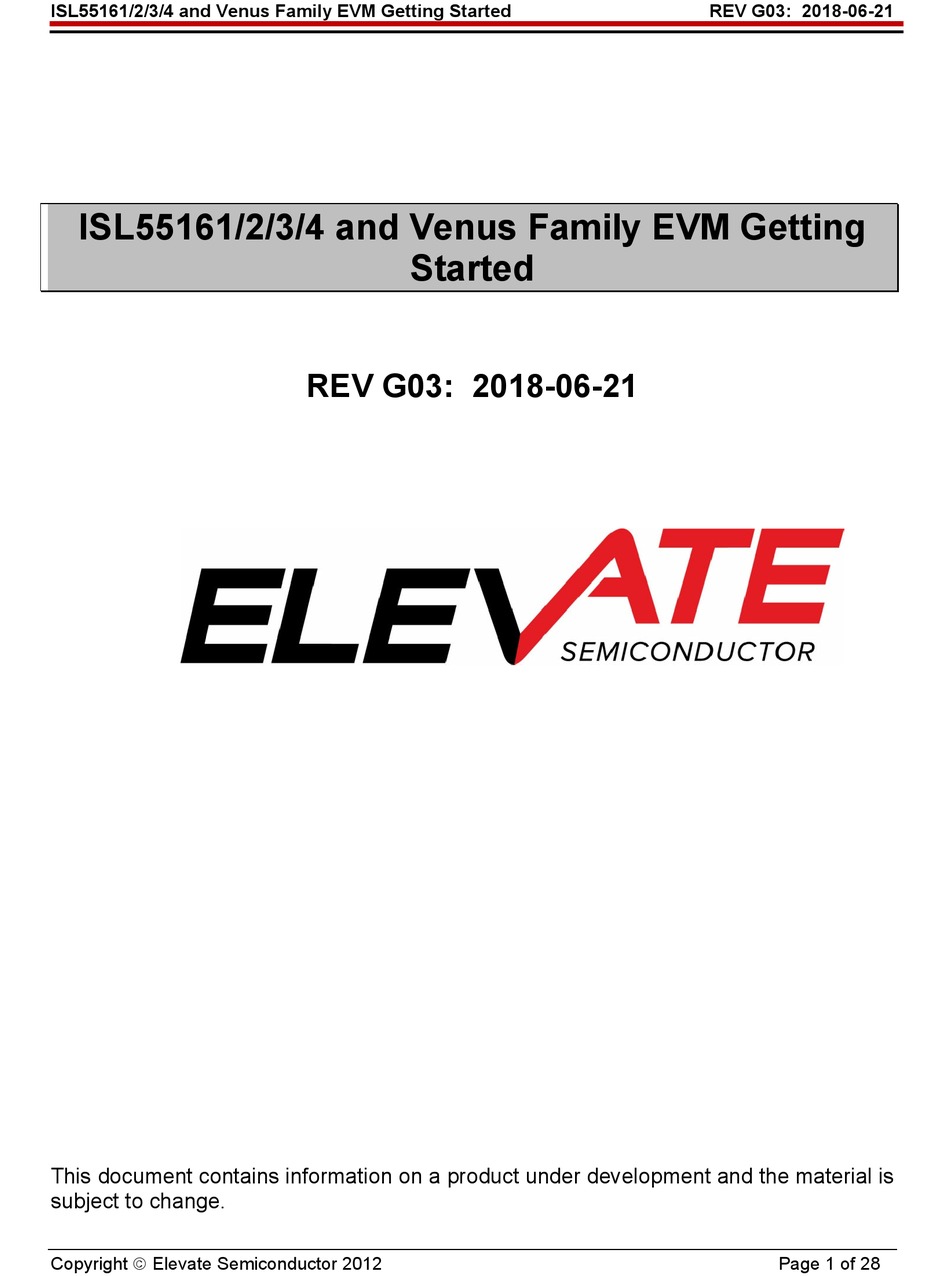

ISL55161/2/3/4 and Venus Family EVM Getting Started
REV G03: 2018-06-21
ISL55161/2/3/4 and Venus Family EVM Getting
Started
REV G03: 2018-06-21
This document contains information on a product under development and the material is
subject to change.
Copyright Elevate Semiconductor 2012
Page 1 of 28
Advertisement
Table of Contents
Related Manuals for ElevATE Semiconductor Venus Series
Summary of Contents for ElevATE Semiconductor Venus Series
- Page 1 ISL55161/2/3/4 and Venus Family EVM Getting Started REV G03: 2018-06-21 ISL55161/2/3/4 and Venus Family EVM Getting Started REV G03: 2018-06-21 This document contains information on a product under development and the material is subject to change. Copyright Elevate Semiconductor 2012 Page 1 of 28...
-
Page 2: Table Of Contents
Venus Loadboard Controller ........................26 Layout Considerations ............................27 Conjugate Termination ..........................27 CAP DVH/DVL/VTT ..........................27 Document Revision History ..........................28 Copyright Elevate Semiconductor 2012 Page 2 of 28... - Page 3 Table 4: FVMI Analog Mux – VINPOS(A) & VINNEG(A) Mapping ............26 Table 5: Loadboard C-Bit (J6) Signal Definitions ..................26 Table 6: Venus Loadboard Latches (U3) Signal Definitions ..............26 Copyright Elevate Semiconductor 2012 Page 3 of 28...
-
Page 4: Introduction
This document provides the instructions to install, setup, and operate the Venus EVM. Refer to the Elevate Semiconductor EVM User’s Guide for a detailed description of the EVM system. 1.1 Unpacking - EVM Contents Please check the contents of the EVM shipping carton to make sure you have received all of the items listed in Table 1. -
Page 5: Software Installation
Enter the Troubleshoot menu. Click “Restart” from the power options menu and hold down the “Shift” key at the same time. Once the computer has rebooted, you will be able to choose the Troubleshoot option. Copyright Elevate Semiconductor 2012 Page 5 of 28... - Page 6 You will be given a list of startup settings, including “Disable driver signature enforcement”. To choose the setting, you need to press the “F7” key. This will disable the driver signature enforcement until the computer is rebooted. Copyright Elevate Semiconductor 2012 Page 6 of 28...
- Page 7 After connecting the USB cable from the PC to the “USB FX2 to Parallel” board, navigate to the Device Manager screen on your computer and look for the EZ-USB Icon. Right-Click on the EZ-USB Icon and select “Update Drive Software…” Copyright Elevate Semiconductor 2012 Page 7 of 28...
- Page 8 Install driver from the newly installed folder on your computer: Windows 7: \ElevATE Semi\EVM GUI\Elevate USB Driver\wlh-win7\(x64 or x86) Select x64 for a 64-bit system. Select x86 32-bit system. Select “Next”. The USB driver will be installed. Copyright Elevate Semiconductor 2012 Page 8 of 28...
- Page 9 1.3.2.3.1 After connecting the USB cable from the PC to the port, the following window appears. Select “No, not this time” and click Next. Copyright Elevate Semiconductor 2012 Page 9 of 28...
- Page 10 Windows XP: \ElevATE Semi\EVM GUI\Elevate USB Driver\wxp\(x64 or x86) Select x64 for a 64-bit system. Select x86 32-bit system. Select “Next”. The USB driver will be installed. Copyright Elevate Semiconductor 2012 Page 10 of 28...
-
Page 11: Reboot Machine
The user can launch the EVM GUI from the desktop, Start->Programs folder, or EVM GUI sub-directory. 1.3.5 Software Un-Installation The ElevATE EVM demonstration program may be un-installed using the uninstall window from the Windows Control Panel. The program can be found under the name “ElevATE EVM”. Copyright Elevate Semiconductor 2012 Page 11 of 28... -
Page 12: Getting Started
EVM can easily and quickly be configured for different options. 2.1 Loadboard and Motherboard Revisions This document only supports the Loadboard Rev F+ and the Motherboard Rev D+. For earlier Loadboard & Motherboard revisions, please contact Elevate Semiconductor for the appropriate documentation. 2.2 Venus and ISL Product Families The Loadboard supports all of the various Venus and ISL Products: Venus, Venus3, Venus4, ISL55161, ISL55162, ISL55163, and ISL55164. -
Page 13: Real Time Data
0.0V to 3.0V swing. Select the Single Ended RT Data from the EVM Setup configuration menu. The DATA# input term is set to NONE. Figure 2: Real Time DATA Block Diagram Copyright Elevate Semiconductor 2012 Page 13 of 28... -
Page 14: Ring Oscillator Mode (No Pulse Generator)
ISL55163. The Comparator Outputs (CA#) have a 953 ohm pick-off. The scope should be set to 50 ohm termination with an attenuation factor of 20. Figure 3: Ring Oscillator Block Diagram Copyright Elevate Semiconductor 2012 Page 14 of 28... -
Page 15: Lvds Outputs Real Time Data
The scope’s two 50 Ohm resistors are used to create a 100 Ohm termination between Channel #0 and Channel #1. The main difference is that the Vcm will be 0V (GND) instead of 1.25V. The user needs to program the driver DVH/DVL to +0.350V and -0.350V respectively. Copyright Elevate Semiconductor 2012 Page 15 of 28... -
Page 16: Figure 4: Lvds Output Real Time Data Block Diagram
ISL55161/2/3/4 and Venus Family EVM Getting Started REV G03: 2018-06-21 Figure 4: LVDS Output Real Time DATA Block Diagram Copyright Elevate Semiconductor 2012 Page 16 of 28... -
Page 17: Channel #0 In Real Time Data And Channel #1 In Compare Only
The DATA#_MON and Comparator Outputs (CA#) have a 953 ohm pick-off. The scope should be set to 50 ohm termination with an attenuation factor of 20. Figure 5: Chan#0 Driver Mode and Chan#1 Compare Only Block Diagram Copyright Elevate Semiconductor 2012 Page 17 of 28... -
Page 18: Pmu Force Voltage Or Force Current Modes
(MU) should be configured in the opposite mode as Venus. After the configuration is completed, use the PMU FV/FI Levels dialog box the change the Venus output levels. Venus FVMI FIMV FIMV FVMI Figure 6: PMU FV/FI Block Diagram Copyright Elevate Semiconductor 2012 Page 18 of 28... -
Page 19: Pmu Chan#0 In Fv And Chan#1 In Fi
Use a ‘T’ connector to monitor DOUT_0 relative to GND Measure Current Connect in series between DOUT_0 and DOUT_1 Figure 7: PMU Chan# 0 FV and Chan #1 FI Block Diagram Copyright Elevate Semiconductor 2012 Page 19 of 28... -
Page 20: Real Time Pmu Sv & Driver Dvl Using En Or Sv Inputs
FV (12V) Note: DOUT should be connected to a Rload so DOUT gets pulled to GND when DOUT is in HiZ. Figure 8: Toggle PMU FV (SV) and Driver DVL Block Diagram Copyright Elevate Semiconductor 2012 Page 20 of 28... - Page 21 Out* Generator GND - BN4 (RT SV option) V100 Load Board SV_0 ENN_0 Pulse Out* EN_0 Generator (RT EN option) Trig Out Venus Cable USB FX2 to Parallel Scope DOUT_1 DOUT_0 Copyright Elevate Semiconductor 2012 Page 21 of 28...
-
Page 22: Quick Start Instructions
6. Set external power supply voltages and current limits. 7. Enable external power supply 8. Run the Elevate Semiconductor ATE GUI software; refer to Section 1.3.4 for details. 9. At the Force Voltage – Measure Current dialog box (refer to Figure 9 below): a. -
Page 23: Motherboard Jumper Definition
Short Pin 1 & 2. Do not use SMA. Use SMAs on Loadboard TC_17 N/A (DATA_0) Short Pin 1 & 2. Do not use SMA. Use SMAs on Loadboard TC_16 CAP_PLL Open TC_15 DUT_GND Open (can optionally use SMA as DUT_GND voltage input) Copyright Elevate Semiconductor 2012 Page 23 of 28... -
Page 24: Evm Menu Dialog Boxes
ISL55161/2/3/4 and Venus Family EVM Getting Started REV G03: 2018-06-21 2.6 EVM Menu Dialog Boxes Figure 10 illustrates the Venus menu options. These provide access to the Venus registers. Figure 10: Device Config Menu Options Copyright Elevate Semiconductor 2012 Page 24 of 28... -
Page 25: Evm Loadboard Detailed Description
REV G03: 2018-06-21 EVM Loadboard Detailed Description Figure 11 illustrates the EVM loadboard. The loadboard contains the Elevate Semiconductor device as well as the necessary circuitry to validate & characterize in the bench environment. The loadboard supports all of the various Venus Family products. -
Page 26: Adc And Analog Mux
1=Connect DUT_GND#0 to TC15 (for continuity/leakge test) DG1_SEL 0=Connect DUT_GND#1 to GND (default) 1=Connect DUT_GND#1 to TC15 (for continuity/leakge test) VREF_SEL 0=Connect VREF pin to VREF DUT supply (default) 1=Connect VREF pin to TC15 (for continuity/leakge test) Copyright Elevate Semiconductor 2012 Page 26 of 28... -
Page 27: Layout Considerations
Channel to Channel to obtain symmetric performance The EVM uses 0805 components for ease in troubleshooting. Customers can use 0603 or capacitor packs. Void in GND & Power planes Copyright Elevate Semiconductor 2012 Page 27 of 28... -
Page 28: Document Revision History
Overhauled Section 2.3.4. Now call it Drive Only and Compare Only Added Real Time SV/DVL, Section 2.3.7 6/11/2011 Added ISL55161/2/3/4 Products to document. 4/29/2014 Added the USB interface to the documentation. 06/21/2018 Added Windows 8/10 installation instructions. Copyright Elevate Semiconductor 2012 Page 28 of 28...
