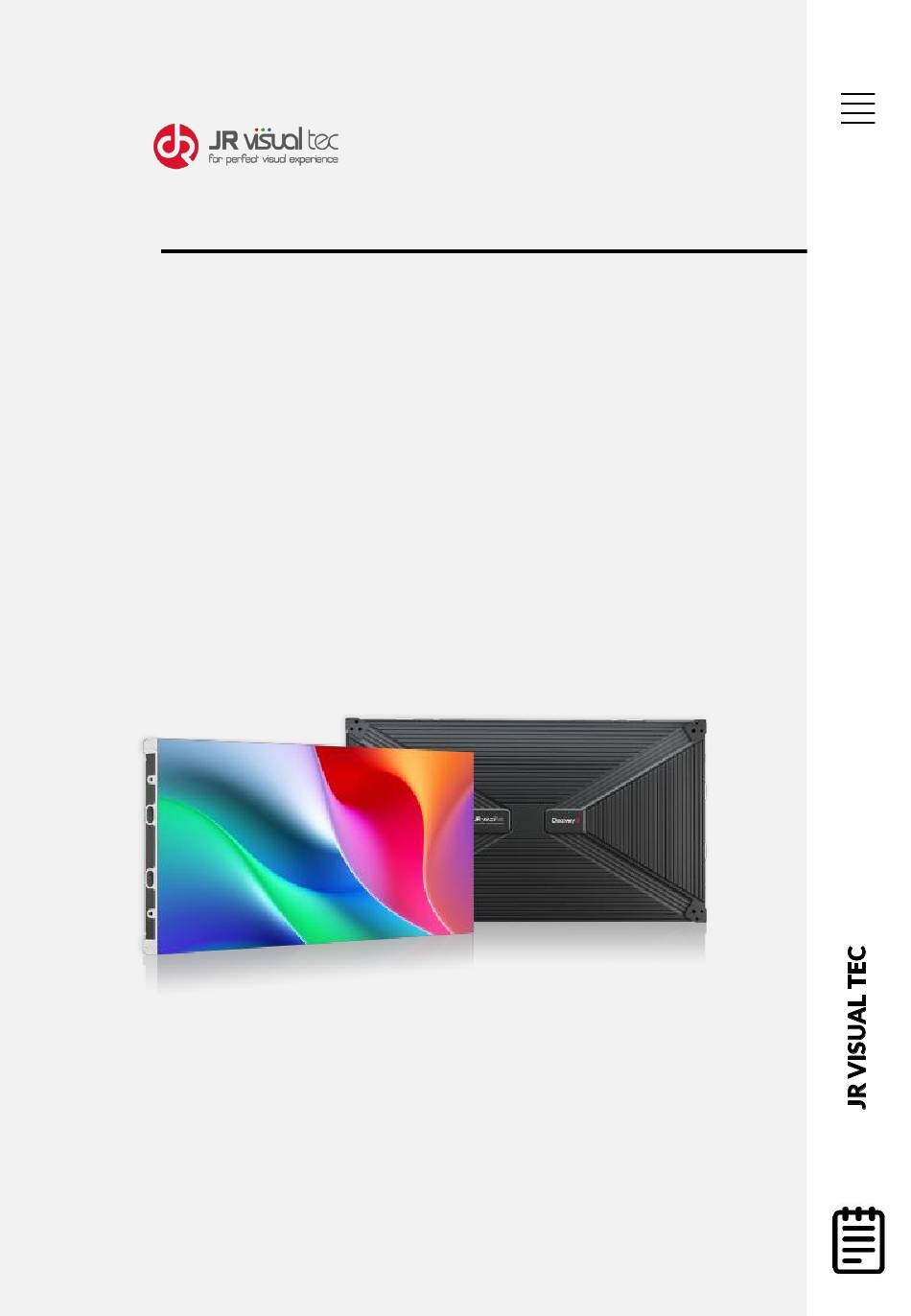

JR VISUAL TEC
iDisc Fine Pitch LED Display
User Manual
T

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the iDisc Fine Pitch and is the answer not in the manual?

Questions and answers

Summary of Contents for JR Visual Tec iDisc Fine Pitch

  • Page 1 JR VISUAL TEC iDisc Fine Pitch LED Display User Manual...
  • Page 2 www.jrvisualtec.com Table of Content Welcome Warning Product Introduction Product Specification Product Installation Product Wiring Product Maintenance TUV-CE Front Hight Hight Easy FHD/4K Service Contrast Refrsh Rate Installation PAGE:2/20...
  • Page 3 Thanks for purchasing our iDisc Fine Pitch LED Display product. iDisc adopts standard panel in 27’’, can be spliced into standard resolution of 2K, 4K, 8K. It’s specifically designed for application that requires close viewing distance. FAQ: If you have any question about the product, Contact us by email (info@jrvisualtec.com) or by...

  • Page 4: Read Before Installation

    www.jrvisualtec.com Read before installation Professional use only! It may result in serious injury or death due to fire hazard, electric shock or crushing hazard. Beware of Electric Shock! Earth Connection Essential Power off during lightening storm or provide other suitable protection AC power must be completed with local electrical codes and equipped with over load and ground fault protection.
  • Page 5 www.jrvisualtec.com Read before installation Beware of Fire Do not stick or hang anything on the screen. Do not modify the product or remove parts without professional guideless. Do not use the product when ambient temperature is over 55℃. Use a proper circuit breaker to avoid fire caused by power cables overloading.
  • Page 6 www.jrvisualtec.com Read before installation Beware of Electrostatic Discharge! LED lamps are sensitive and can be damaged by Electrostatic Discharge, do not touch when the product is running or switched off. Take Care During Installation Hold product firmly to prevent tipping or falling when stacking .

  • Page 7: Product Introduction

    www.jrvisualtec.com Product Introduction iDisc is indoor fixed installation high definition LED display, its cabinet dimension is 600*337.5*29mm, each cabinet features a 27” diagonal with a 16:9 aspect ratio. The product is primarily used at branded chain stores, shopping malls, hotel banquet hall, TV studios, banks, churches, theaters, corporate lobbies, high-end clubhouses, museums, transportation hubs, airports, railway stations, conference rooms as well as numerous other applications.
  • Page 8 www.jrvisualtec.com Product Introduction iDisc fine pitch LED Display. Signal Output Bolt Connection Power Output Power Input Bolt Connection Signal Input Power Output Bolt Connection Signal Output Signal Input Bolt Connection Power Input PAGE:8/20...

  • Page 9: Specification

    www.jrvisualtec.com Product Specification Model DS012 DS015 DS018 DS025 Pixel Pitch (mm) 1.25 1.56 1.87 SMD1010 SMD1212 SMD1415/1515 SMD2020/2121 LED Type black black black black Cabinet Resolution 480×270 384×216 320×180 240×135 (W×H) Cabinet Size 600×337.5×29 (W×H×D, mm) Panel Size 27” Cabinet Material Die-casting Aluminum Weight (kg) Maintenance...

  • Page 10: Installation

    www.jrvisualtec.com Product Installation Wall Mounting Rack & Beam Fix the mounting fame on the wall PAGE:10/20...
  • Page 11 www.jrvisualtec.com Product Installation Wall mounting Accessories Data cable for connection between two cabinets Power cable for connection between two cabinets Main power cable: 10m M8×60mm Bolts, PAGE:11/20...
  • Page 12 www.jrvisualtec.com Product Installation Step A-Z Drill 8pcs M10 anchoring screws onto the wall Wall ‘ Fix two racks onto the wall PAGE:12/20...
  • Page 13 www.jrvisualtec.com Product Installation Step A-Z Fix the Beam onto the wall Install one LED panel first PAGE:13/20...
  • Page 14 www.jrvisualtec.com Product Installation Step A-Z Utilize the bolts on the sides to position the tiles, and use wrench to lock. PAGE:14/20...
  • Page 15 www.jrvisualtec.com Product Installation Step A-Z Install the cabinets one by one, and lock. Connect the power and data cables in between two cabinets. PAGE:15/20...
  • Page 16 www.jrvisualtec.com Product Installation Step A-Z Programing Run the display Wall PAGE:16/20...
  • Page 17 www.jrvisualtec.com Display Cabling Power Cable Power Input 110V-220V Main Power Cable (Connect to power distribution box) PAGE:17/20...
  • Page 18 www.jrvisualtec.com Display Cabling Dual Signal Backup System Dual-loop Signal Backup PAGE:19/20...
  • Page 19 www.jrvisualtec.com Display Cabling 6*5 Cabinets Connection (For reference only) CAT5 CAT5 CAT5 CAT5 CAT5 Power cable Power cable DVI cable DVI cable DVI cable DP cable USB cable PAGE:20/20...

  • Page 20: Maintenance

    www.jrvisualtec.com Product Maintenance Service Tool Screw Driver Multi-meter Vacuum front service tool Full Front Service by taken modules out first PAGE:21/21...
