Summary of Contents for Reetech RCV36-BAGT-BT

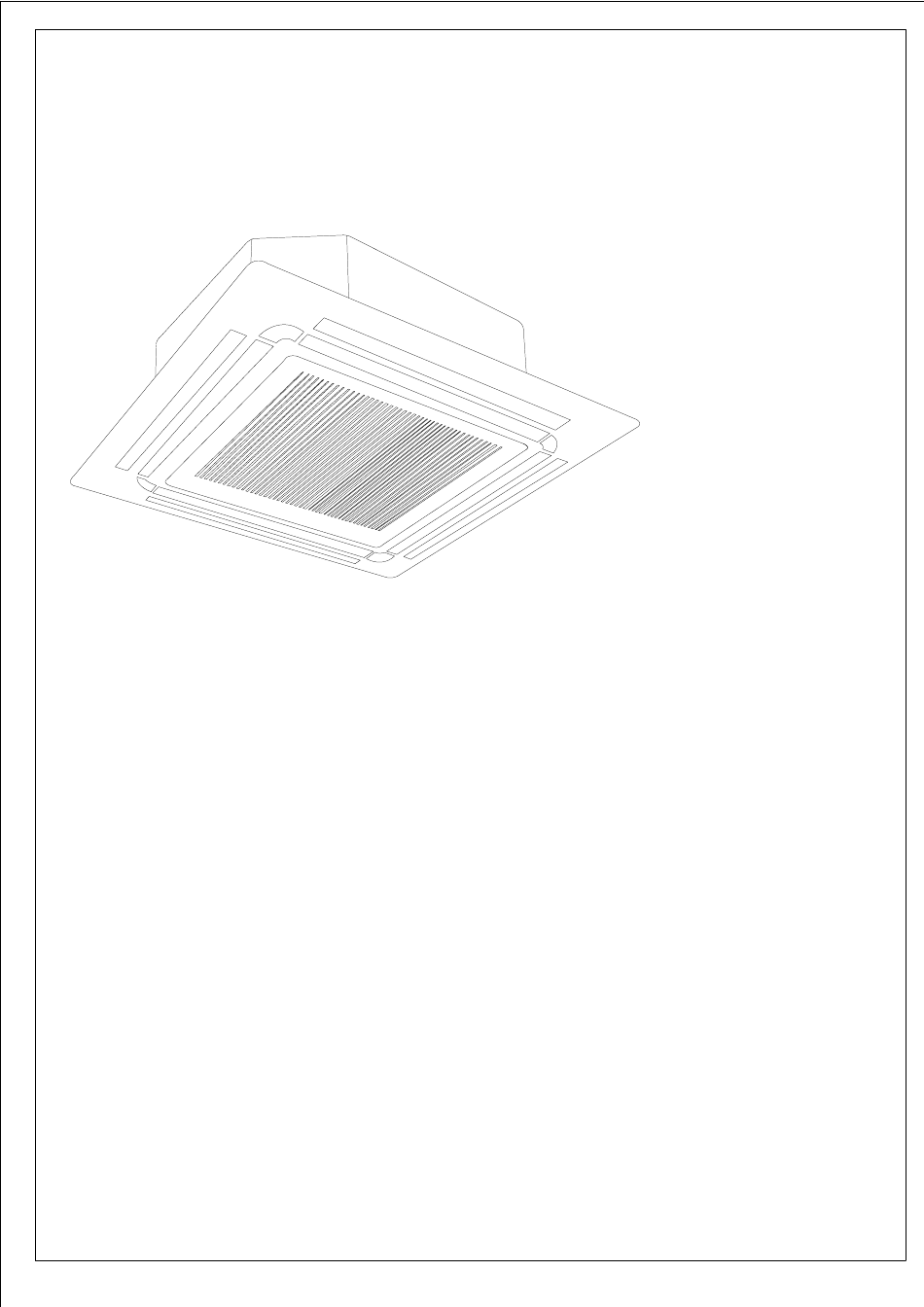

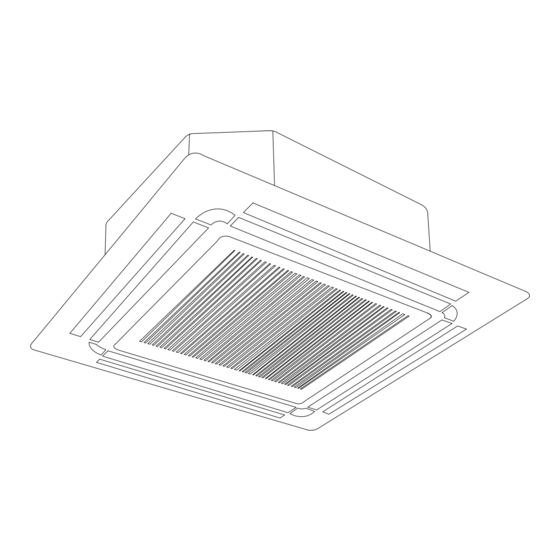

- Page 1 AIR CONDITIONER INSTALLATION MANUAL For authorized service personnel only. OPERATION MANUAL [Original instructions] PART No. 22022510004883 22022510004824 22022510004904 22022510004843...
-
Page 2: Table Of Contents
R.E.E ELECTRIC APPLINCES JSC INSTALLATION MANUAL Indicates a potentially hazardous situation that may result in minor CAUTION or moderate injury or damage to property. INDOOR UNIT (Cassette type) Read carefully all safety information written in this manual before you install or use the air conditioner. -
Page 3: General Specification
R.E.E ELECTRIC APPLIANCES JSC Description Name and Shape Q’ty • Additional refrigerant: (This book) Inverter Cassette Piping [m] Installation manual Type (kBtu) Max. Length Max. Elevation Additonal Ref. 18/24 12g/m For installing indoor unit Template 24g/m (Carton top) 24g/m 164m For installing indoor unit •... -
Page 4: Installation Dimension
R.E.E ELECTRIC APPLIANCES JSC Select installation locations that can properly support the weight of the indoor unit and • This product can be installed at a height of up to 4.2 m. However, if the heights of the which will not amplify sound or vibration. If the installation location is not strong enough, ceiling is higher than 3.2 m or lower than 2.7 m, it is necessary to set the position from the indoor unit may fall and cause injuries. - Page 5 R.E.E ELECTRIC APPLIANCES JSC ALL TYPE MODEL UNIT: mm >1000 >1000 >1000 >1000 Drain hose Refrigerant piping >100cm >100cm ” 545mm (Suspension bolt) >100cm >100cm 570mm (Body) 600mm / 23.6 ” (Ceiling opening) 647mm / 25.5 ” (Cassette grill) COMPACT MODELS CEILING HOLE SIZE Drain hose Refrigerant piping 545mm / 21.5”...
-
Page 6: Installing The Unit
R.E.E ELECTRIC APPLIANCES JSC 4. 3. Installing the unit CAUTION WARNING Carrying and installation of the unit should be performed by a sufficient number of people Do not apply adhesive agent on the drain port of the body. (Use the attached and with sufficient equipment that is adequate for the weight of the unit. -
Page 7: Pipe Installation
R.E.E ELECTRIC APPLIANCES JSC 5. PIPE INSTALLATION 5.1.2 Bending pipes WARNING • If pipes are shaped by hand, be careful not to collapse them. • Do not bend the pipes at an angle more than 90°. During installation, make sure that the refrigerant pipe is attached firmly before you •... -
Page 8: Wiring Method
Indoor Unit Outdoor Unit 1(L) 2(N) S 1(L) 2(N) S Power Suply Connection wired 3x2.5mm 4x2.5mm Model Name: RGTV36-BAT-BT / RCV36-BAGT-BT Indoor Unit Outdoor Unit Power Suply at Outdoor Unit 380V/50Hz/1Ph Connection wired L N S 2N S 4X1.5mm Outdoor Unit... - Page 9 R.E.E ELECTRIC APPLIANCES JSC MODEL NAME: RCV24-BAG-BT MODEL NAME: RCV36-BAGT-BT / RCV48-BAG-BT 1030 En-8...
- Page 10 R.E.E ELECTRIC APPLIANCES JSC 7.1 SELECTING OUTDOOR INSTALLATION POSITION WARNING DO NOT install the unit in the following locations: • Sea side with high salt content in the air. (Contact with authorized services for more information) • Areas with power fluctuations, such as factories. •...
- Page 11 R.E.E ELECTRIC APPLIANCES JSC Wall / Obstruction Outdoor 1 Outdoor 2 Max 500mm ≥ 2000mm ≥ 1000mm Wall / Obstruction PROHIBITED Outdoor 1 Outdoor 2 Outdoor ... Minimum Cross-Sectional Area of Power and Signal Cables Rated Current (A) Nominal Cross-Sectional Area (mm²) >...
-
Page 12: Check List
R.E.E ELECTRIC APPLIANCES JSC 8.0. CHECK LIST Pay special attention to the check items below when installing the indoor unit(s). After 9.0. TEST RUN installation is complete, be sure to check the following check items again. CHECK ITEMS If not performed correctly CHECK BOX Operation method Has the indoor unit been installed Vibration, noise, indoor unit may... -
Page 13: Error Codes
R.E.E ELECTRIC APPLIANCES JSC 11. ERROR CODES If you use a wired type remote controller, error codes will appear on the remote controller display. For more information, refer to the installation manual of the remote controller. If you use a wireless remote controller, the lamps on the IR receiver unit will output error codes by way of blinking patterns. See the lamp blinking patterns and error codes in the table below. -
Page 14: Operation Manual
R.E.E ELECTRIC APPLIANCES JSC OPERATION MANUAL Wireless remote controller specification Voltage 3.0V (Dry batteries R03/LR03×2) Distance 8m-11m Temp. Range C~60 1.TEMP DOWN : - This function use to decrease the indoor unit AUTO COOL HIGH temperature setting in 1 C increments to 17 HEAT 2.TEMP UP : TEMP... - Page 15 6. TIME ON: For TIMER ON setting. Press this button to activate the Auto-on time setting. Each time it will increase the time setting in 30 minutes increments, up to 10 hours. Then at 1 hour increments up to 24 hours. Auto-on time setting, just press the button until the time setting is 0.0.
