U-Line H-3691 Quick Start Manual

π
H-3691, H-3692, H-3693
FIXED SINGLE FOLDING SECURITY GATES
TOOLS Needed
3/4" Masonry Drill Bit
1/4" Masonry or Wood Drill Bit

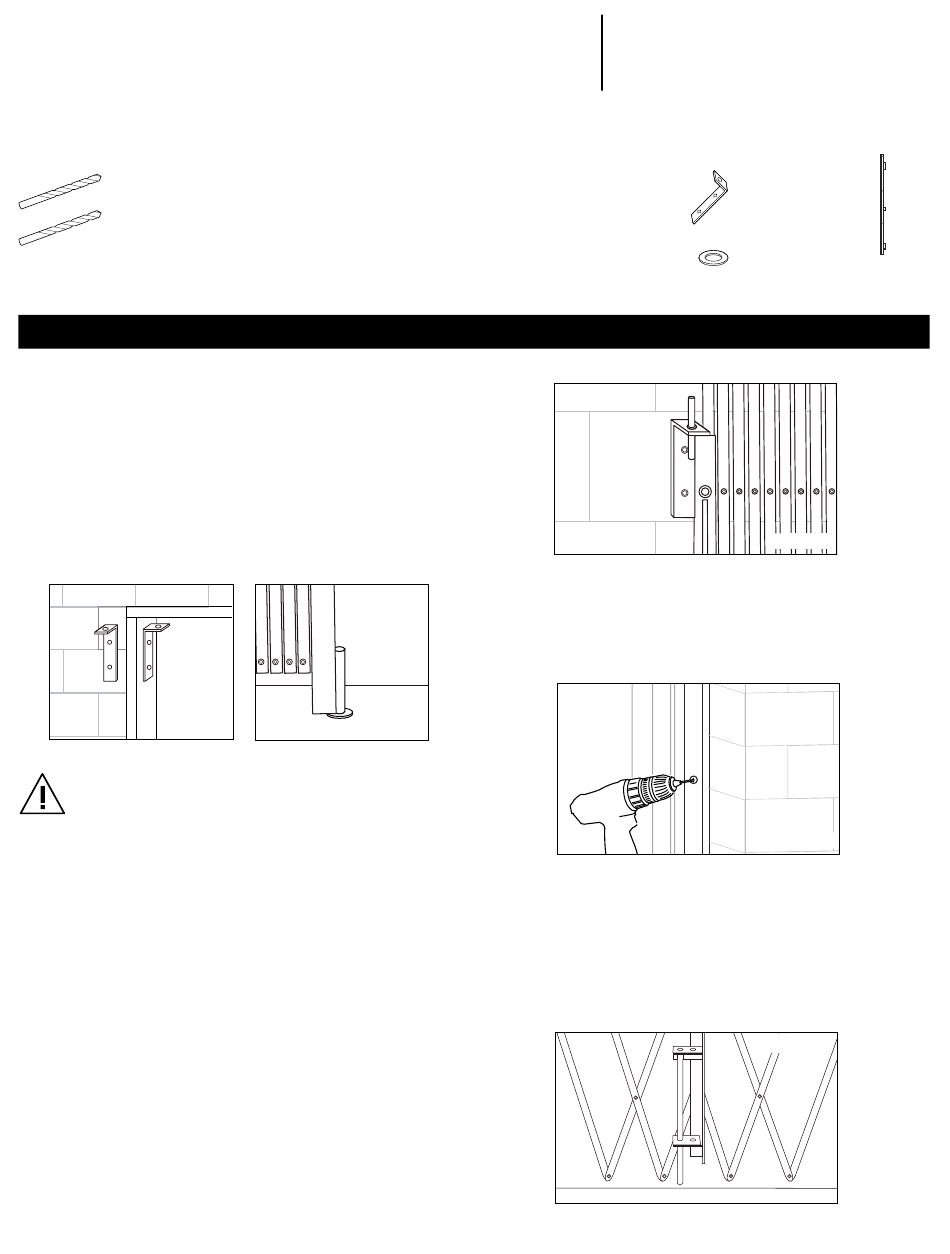

1. Before installing, decide on gate placement. "L" brackets
that form top hinge allows gate placement in the recess of
door frame. Installation can also be made outside or inside
of wall next to door or opening frame. (See Figure 1)
2. Have a helper extend the gate and stand it upright where it
will be mounted. Drill 3/4" diameter x 3" deep hole, 1¼" from
wall into the floor for gate pin to set into. Place a bearing
washer over floor hole and set bottom gate pin into floor
mount hole. (See Figure 2)
Figure 1
CAUTION! Check to confirm gate will swing away
from opening when not in use. This will provide a
clear opening for normal traffic.
3. Extend gate and hang "L" bracket on top of gate to verify
where it will be mounted. To release tension you may lift the
wheel 1/2"-3/4" off the floor. Mark and drill pilot holes into
door frame or wall. It may be easier to drill pilot holes if you
remove the gate from it's floor mount. Place bearing washer
and bottom gate pin back into floor mount. Slip "L" bracket
over top of gate and bolt (not included.) (See Figure 3)
• Wood door frames or walls: 5/16 x 2" lag bolts.
• Steel door frames or walls: Drill and tap for
5/16 x 2" lag bolts.
• Brick or concrete frames or walls: 5/16 x 2"
Lag bolts set into 3/8" holes with lead anchors.
π
PAGE 1 OF 2 CHICAGO • ATLANTA • DALLAS • LOS ANGELES • MINNEAPOLIS • NYC/PHILA • SEATTLE • MEXICO • CANADA
PARTS Needed
5/16 x 2" Long Lag Bolt
Masonry Door Frame or Wall Installations
(Wall Installations may require lead anchors)
INSTALLATION
4. Extend and retract gate to its stops to work out stiffness,
then fully extend gate across opening. Align padlock
holes and position the locking bar on door frame or wall.
Figure 2
Mark and drill pilot holes. Secure with 5/16 x 2" lag bolts.
(See Figure 4)
5. Only gates 7' and wider include a center drop pin. If
included, fully extend gate across opening and mark
the floor where center drop pin is located. Drill a 3/4"
diameter x 3" deep hole into the concrete floor. Lower
center drop pin. (See Figure 5)
6. Gate can be secured to locking bar using padlock.
Open gates slowly at first to avoid warping.
Pour le français, consulter la page 2.
1-800-295-5510
uline.com
PARTS INCLUded
2" Standard
"L" Bracket
Bearing
Washer
Figure 3
Figure 4
Figure 5
Locking Bar
0414 IH-3691
