Summary of Contents for HYSUN W2

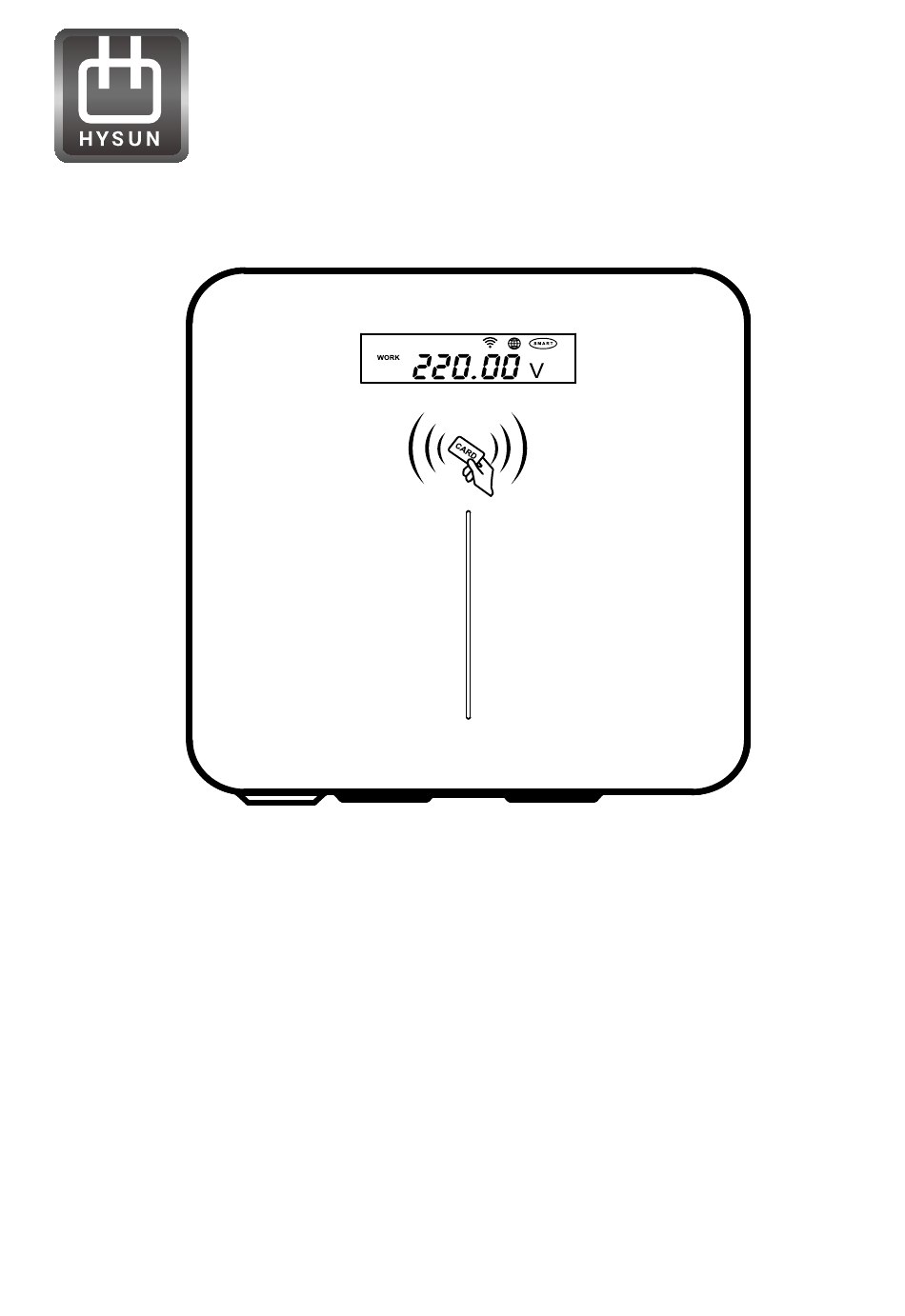

- Page 1 Wallbox EV Charger W2 User Manual...
- Page 2 01/Product Overview N14-50P Installation Kits Tool Hanging board×1 Hook×1 KA4 * 30mm×4 KA4 * 40mm×2 M3 * 6mm×1 Hex key×1 - 1 -...
- Page 3 02/Technical specifications General Dimensions 200mm x 200mm x 65mm （ L Wall mounting Operation -40°C~+55°C Temperature Weight Charging Charging power Charging Plug GBT (GB/T 20234.3-2015) Power Supply 1phase (7kW) Voltage 230Vac (±10 %) Mains frequency 50/60 Hz Connectivity Built-in eSIM WiFi 2.4Ghz connection Control charging via X smart App RFID reader...
- Page 4 03/Protection • Integrated protection for open / break fault condition in supply PEN conductor according to BS 7671:2018/A1:2020 • Built-in RCD for ground fault protection (30 mA AC/ 6 mA DC) according to EN 61008-1 and IEC 62955 Degree of protection IP65 Impact resistance IK10...
- Page 5 04/Important Safety Instructions 1. Ensure that the equipment is well grounded before powering it on. 2. Keep the charging gun head clean and dry. If it gets dirty, wipe it with a clean and dry cloth. 3. Do not touch the charging gun with your hands while charging. 4.
- Page 6 05/Installation instructions WARNING: Turn off the power before you begin the Installation. Use extrem caution and follow Instructions carefully. 1.Drilling 1. Use the BIGGER plate to mark 2.Use a drillto make holes in the location of the screw holes on the wall where you marked the the wall where you plan to mount locations.
- Page 7 2.Mounting 1.Fix the BIGGER plate to the wall 2.Hang the WALLBOX station on using screws. the plate that is now affixed to the wall. 3.Lock the bottom anti-sheft 4.Hang the WALLBOX station on the SMALLER plate with screws. plate that is now affixed to the wall. - 6 -...
- Page 8 06/Features 1.Display screen 2.RFID area The aintegrated RFID reader enables access control of the Charger and identification of different users. 3.Indicator light The light strip communicates the status of the Charger at all times. 4.Emergency stop button 5.NEMA 14-50 6.Charging Plug 07/Charging interface Working State Green...
-
