Summary of Contents for EVPORT EVC1S-3210

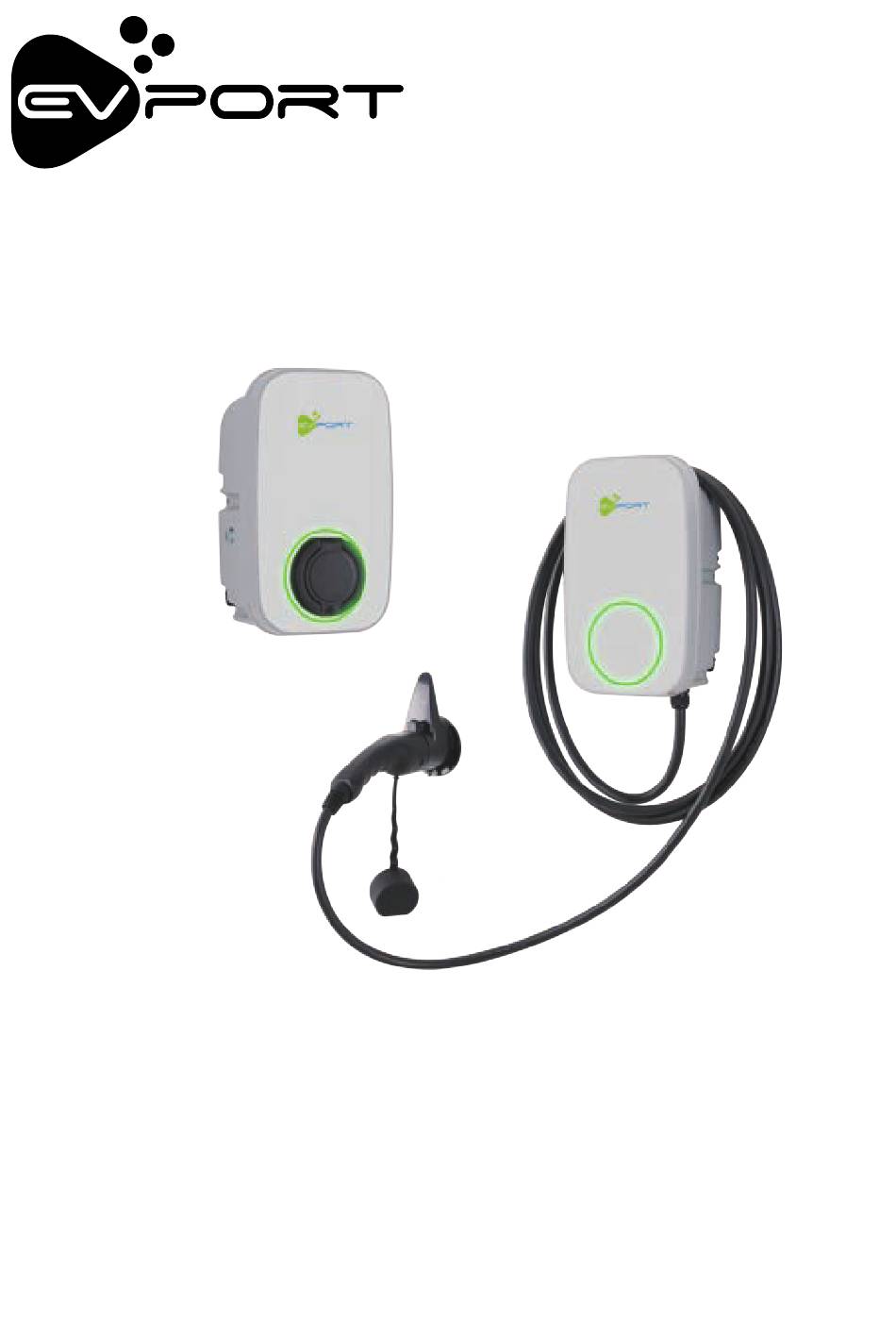

- Page 1 ELECTRIC VEHICLE CHARGER Model: EVC1S-3210 EVC1L-3210 READ AND SAVE THESE INSTRUCTIONS Installer: Leave this manual with the homeowner COD:0030300000-A...
-
Page 2: Table Of Contents
TABLE OF CONTENTS SAFETY INSTRUCTIONS USER INSTRUCTIONS PARAMETERS SHEET PRODUCT DESCRIPTION PRODUCT DIMENSIONS INDICATOR LIGHT FUNCTION INSTRUCTION INSTALLATION INSTRUCTIONS UNPACKING ATTACHMENT TOOLS/MATERIALS REQUIRED BEFORE INSTALLATION INSTALLATION LOCATION WARNING CONNECT ELECTRICAL WIRING INSTALLATION SET THE CHARGER POWER INSPECTION INSTALLATION OF THE CABLE HOLDER APP INSTRUCTION REGISTER ADD DEVICE... -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS Important note: Please read this booklet before installing and switching on this appliance. The manufacturer assumes no responsibility for incorrect installation and usage as described in this booklet. Keep the instruction book for future reference. All the information in the manual is valid for the charging station model in this manual. This instruction book details the install guidance for the charger. -
Page 4: User Instructions
USER INSTRUCTIONS PARAMETERS SHEET EVC1S-3210 EVC1L-3210 Model Item Datasheet Power Supply 1P+N+PE AC220 ~ 240V Rated Voltage I n p u t 50/60Hz Max 32A Rated Current (6-32A adjustable) AC220 ~ 240V Output Voltage 50/60Hz Max 32A Maximum Current O u t p u t... -
Page 5: Product Description
USER INSTRUCTIONS PRODUCT DESCRIPTION 1. Front cover 2. Working status indicator 3. Socket 4. Function button 5. Charger holder 6. Charging cable and connector PRODUCT DIMENSIONS 132mm 200mm 109mm... -
Page 6: Indicator Light
USER INSTRUCTIONS INDICATOR LIGHT Light Display Status Product Status Blue, green and red flashing alternately Product power-on self-check Blue light glowing Standby Blue light flashing Connection confirmation Green light glowing Charging Green light flashing Disconnect charging from APP or OCPP Red light glowing Over temperature Emergency stop... -
Page 7: Installation Instructions
INSTALLATION INSTRUCTIONS UNPACKING 1.Scratch or remove the sealing tape and take out the unit. 2.Follow the ATTACHMENT to check all items and to see if there are any omissions. 3.Check the unit is correct and whether it matches with order model. 4.Check whether the unit has defects or is damaged due to defectiveness or transportation. -
Page 8: Tools/Materials Required
INSTALLATION INSTRUCTIONS TOOLS/MATERIALS REQUIRED (NOT INCLUDE) Electric drill Measuring tape Safety gloves Electric elbow tool Phillips screwdriver Slotted screwdriver Pencil Hole Saws Mode 1: Φ24mm Bottom hole Mode 2: Φ18mm (Back hole for Sealing rubber) BEFORE INSTALLATION 1. Installer or end user must read and understand all the content covered in this manual before installing or using this unit. -
Page 9: Warning
INSTALLATION INSTRUCTIONS WARNING ▲ Make sure that the power source is turned off before installing the unit. ▲ Manufacturers and distributors are not responsible for any loss or related responsibilities caused by any incorrect installation. ▲ The installer shall be responsible for the loss and damage of the product, system or property caused by improper installation. -
Page 10: Installation
INSTALLATION INSTRUCTIONS INSTALLATION 1. Take the unit and remove the 4 screws on its fixing bracket (The unit is integrated with the fixing bracket and needs to be disassembled first). Keep the screws and fixing bracket for subsequent use; 2. Remove the 6 fixing screws on the front shell and the rear shell, save the screws for subsequent use; Note: Reference Fig.1 for steps 1 and 2. - Page 11 INSTALLATION INSTRUCTIONS 7. According to the size and position below, open the power cable hole on the shell. NOTE 1: Inlet wire mode1, open hole size must be accurate, and the hole diameter is 24mm(for the single phase). NOTE 2: Inlet wire mode 2, open hole size must be accurate, and the hole diameter is 18mm. WARNING: Remove burrs around the hole to prevent affecting the seal level.
- Page 12 INSTALLATION INSTRUCTIONS MODE 1 a1. Check the cable gland parts as shown in Fig. 5. a2. Pass the gasket and the main body through the opening hole of the shell and lock it with a nut, as shown in Fig. 6. a3.
- Page 13 INSTALLATION INSTRUCTIONS MODE 2 b1. Insert the sealing rubber into the housing, as shown in Fig 8, insert the bare wire into the sealing rubber, one hole corresponds to one bare wire, after all the wires are inserted, leave enough length of the cable to connect to the terminal block.
-
Page 14: Set The Charger Power
INSTALLATION INSTRUCTIONS SET THE CHARGER POWER You need to set the corresponding position of the current DIP switch according to the min. wire size shown in the chart and the rated current of the Circuit breaker (factory setting 32A). refer to the steps below. Caution 1: The following operations must be powered off. -
Page 15: Installation Of The Cable Holder
INSTALLATION INSTRUCTIONS INSTALLATION OF THE CABLE HOLDER JUST FOR EVC1L-3210 1. Take out the charger holder. 2. Find a suitable location near the EV charger box, which must be more than 0.5m above the bottom surface and not higher than 1.5m. 3. -
Page 16: App Instruction
APP INSTRUCTION REGISTER Step 1. Application platform download Tuya app Register **-********** Step 2-4: Input the account login Step 2-1: Click Register Step 2-3: Input verification code. Step 2-2: Check the app password and click done to agreement, enter the registered complete the registration. - Page 17 APP INSTRUCTION 2.The charger needs to be connected to WiFi. If the WiFi signal is weak or absent, the charger will not receive the signal or delay the connection. Therefore it is recommended to add an enhancement device for WiFi receiving signal near the charger. Note: To check if your WiFi can reach the charger and have a good signal check your smart device or smart phone whilst standing close to the charger with the WiFi tuned on if the signal can be seen above 2 bars then it is ok if not a WiFi booster or repeater needs to be added.
-
Page 18: Operate Introduction
APP INSTRUCTION OPERATE INTRODUCTION 01.00 12.00 24.00 INTERFACE INTRODUCTION Edit Charging voltage Single charging Charging current energy consumption Charging power Charging state On/off Charging mode HOME CP state Charging mode Cumulative charging Record energy consumption Setting Energy consumption record... - Page 19 APP INSTRUCTION Edit (1). You can set the charger name by clicking " " (2). Offline Notification: When the charger is powered off, it will prompt the device to be offline on the home screen. (3). Share Device: You can share the APP with others by share device. Shared users only have the using right and cannot share the APP again.
- Page 20 APP INSTRUCTION Charging mode (1).manual mode:control charger by Enable and Turn off charger on APP. (2).Schedule: Timed charging. NOTE 1: When you choose the set time point to turn on the charging , you must adjust the hours setting, otherwise the default charging time is only 1 minute; 2: When you choose the set time point to turn off the charging, there is no hours setting;...
-
Page 21: Fault Interface
APP INSTRUCTION Setting ((1). Order input: Input order tab. Click Input order tab to enter command input field. (2). Set Current tab(A): You can set max charging current, max charging current not more than the current of DIP switch setting. NOTE：1. -
Page 22: Maintenance
MAINTENANCE The charger enclosure does NOT need to be opened for routine maintenance tasks. 1. Regularly clean the external surfaces of the equipment with a damp cloth In order to avoid damaging the surface smoothness, do not clean the internal parts with soluble substances and alcohol. -
Page 23: Troubleshooting
TROUBLESHOOTING TROUBLESHOOTING One fast, two slow CP fault Two fast, one slow Over current Three fast, one slow Leakage current fault Red light Three fast, two slow Under voltage fault flashing Four fast, one slow Over voltage fault Six fast, two slow Adhesion fault Seven fast, one slow Earth fault... - Page 24 Product Disposal In accordance with European Directive 2002/96/EC on waste electrical and electronic equipment and its implementation in national law, used electrical devices must be collected separately and recycled in an environmentally responsible manner. Ensure you return your used device to your dealer or obtain information regarding a local, authorised collection and disposal system.
