Hex Fuzz Output Expander
Introduction
Congratulations on your purchase of this SynQuaNon product! It is our belief that our
products will enable you to find new and interesting ways to create custom sounds
with your synthesizer and other SynQuaNon modules. Check out our full line at
www.synquanon.com.
➊
Tone controls
➋
Volume controls
➌
Wet/dry controls
Hex Fuzz Output Expander User Manual v1.0

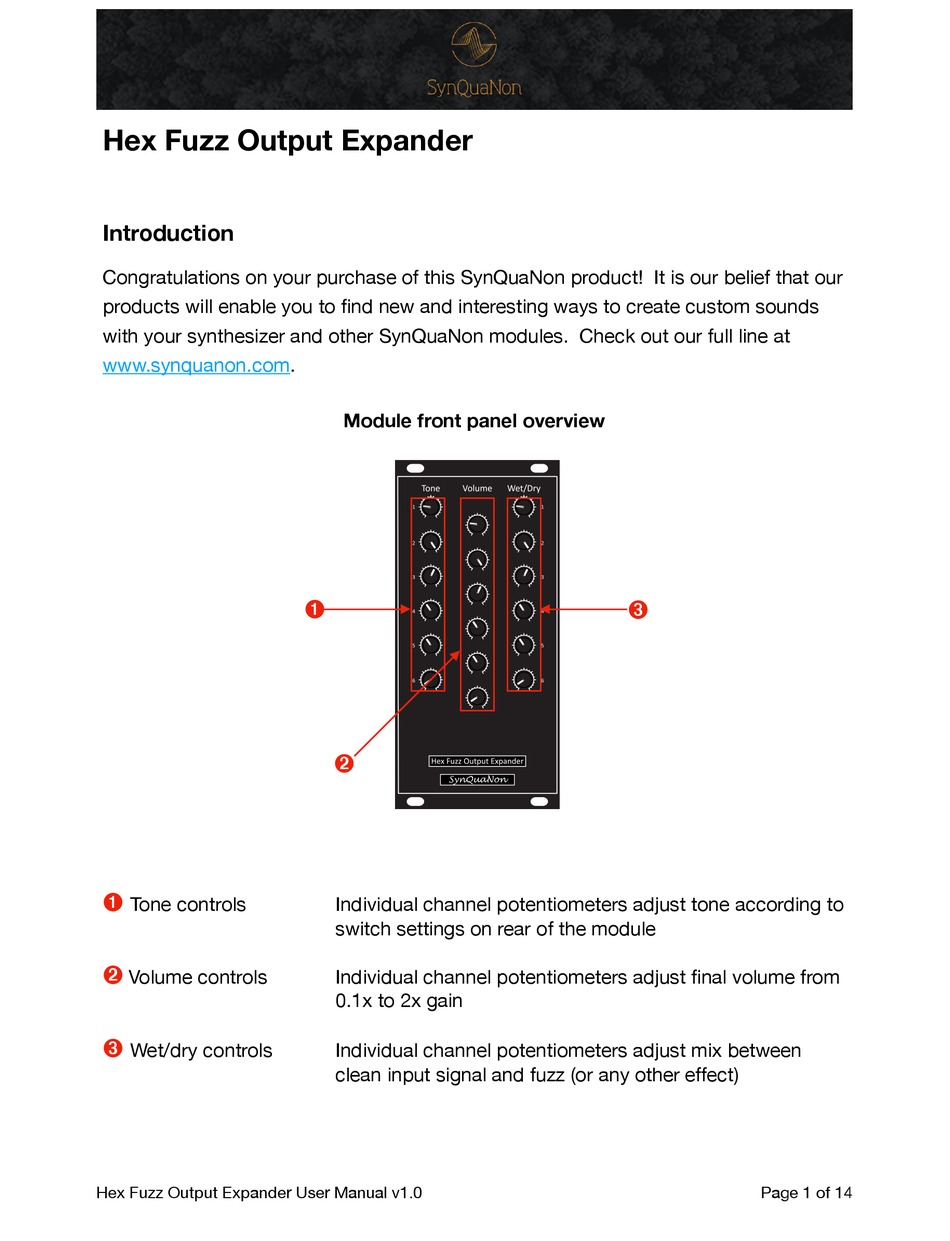

Module front panel overview
➊
➋
Individual channel potentiometers adjust tone according to
switch settings on rear of the module
Individual channel potentiometers adjust final volume from
0.1x to 2x gain
Individual channel potentiometers adjust mix between
clean input signal and fuzz (or any other effect)
➌
Page
1
of
14
Advertisement
Summary of Contents for SynQuaNon Hex Fuzz Output Expander
- Page 1 Hex Fuzz Output Expander Introduction Congratulations on your purchase of this SynQuaNon product! It is our belief that our products will enable you to find new and interesting ways to create custom sounds with your synthesizer and other SynQuaNon modules. Check out our full line at www.synquanon.com.
- Page 2 Overview The Hex Fuzz Output Expander module is an important add-on for the Hex Fuzz Amplifier, creating a large variety of tones with complete control over the mix of sounds for each of the individual channels. The module features passive tone control circuitry that consists of low-pass and high- pass filters with cross-fade control, much like the classic fuzz pedals.
- Page 3 While designed for fuzz, any type of hexaphonic effects output may be connected to these inputs. ➌ Dry Inputs SynQuaNon Audio Bus input connection for 6 dry guitar inputs. Can be any type of audio input to be mixed with the processed signals. ➍...
- Page 4 Use two 6-inch (or 12-inch if the modules are not located next to each other) SynQuaNon Audio Bus cables to connect the Hex Fuzz Output Expander to the Hex Fuzz Amplifier (or any other SynQuaNon hexaphonic audio effects module) and a third SynQuaNon Audio Bus...
- Page 5 Tone control between minimum and maximum and selecting combinations that create the desired tone. Examples: Flat Mids Mid Hump Hex Fuzz Output Expander User Manual v1.0 Page...
- Page 6 Filter charts Hex Fuzz Output Expander User Manual v1.0 Page...
- Page 7 Hex Fuzz Output Expander User Manual v1.0 Page...
- Page 8 Hex Fuzz Amplifier User Manual v1.3 Page...
- Page 9 Hex Fuzz Amplifier User Manual v1.3 Page...
- Page 10 Hex Fuzz Amplifier User Manual v1.3 Page...
- Page 11 Hex Fuzz Amplifier User Manual v1.3 Page...
- Page 12 Hex Fuzz Amplifier User Manual v1.3 Page...
- Page 13 Hex Fuzz Amplifier User Manual v1.3 Page...
- Page 14 4. Check level settings on front panel. Check gain select header on rear of module for proper gain range selection (turn OFF Eurorack power first). For additional information please feel free to contact us at support@synquanon.com Hex Fuzz Output Expander User Manual v1.0 Page...
