Summary of Contents for ENHULK M1DP-XT-10

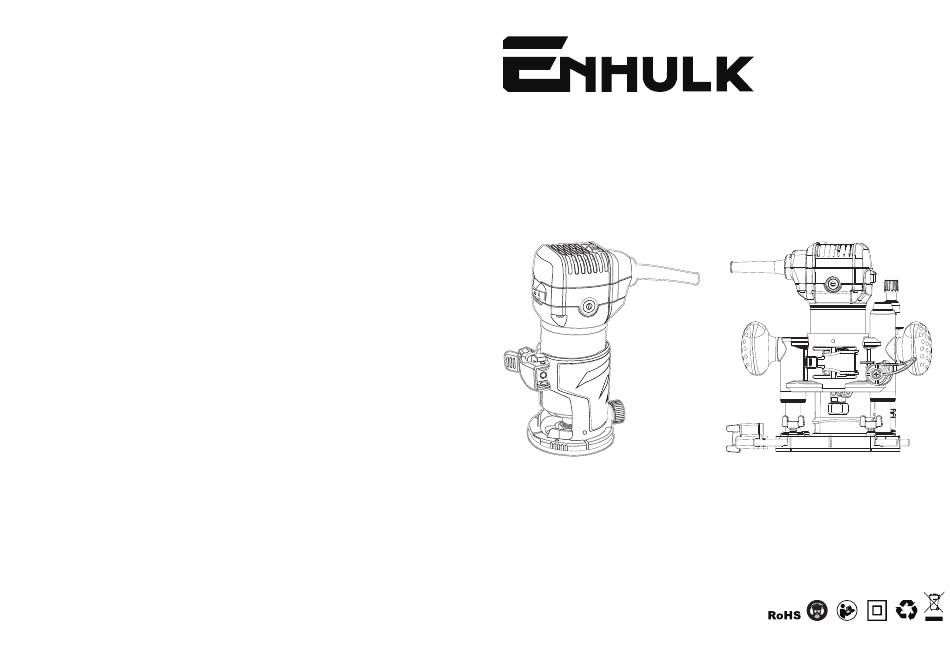

- Page 1 Compact Router M1DP-XT-10 M1DP-XT-10 (R0700) (R0700+0701) SYVIO TECHNOLOGY.CO.LIMITED ROOM A,8/F,wok Cheung Building,635-637 Shanghai Street,Mong kok,Hong Kong 0086-133-2298-6467 Please Read Carefully Before Use service@enhulktools.com Original Instruction Manual Made in China...
-
Page 2: Safety Instruction
Safety Instruction Use personal protective equipment. Always wear General Power Tool Safety eye protection.Protective equipment such as Warnings dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate condi- tions will reduce personal injuries. Read all safety warnings and all instructions.Failure Prevent unintentional starting. - Page 3 Safety Instruction Hold the tool firmly. Use the power tool, accessories and tool bits etc. in accordance with these instructions, tak- 8. Keep hands away from rotating parts. ing into account the working conditions and the 9. Make sure the bit is not contacting the workpi- work to be performed.Use of the power tool for ece before the switch is turned on.
-
Page 4: Technical Data
Check with your local authorities or retailer for No load Speed recycling advice. Technical Data Model M1DP-XT-10 Due to our continuing programme of research and de- Collet Chuck Capacity 1/4’’,3/8’’ velopment, the specifications herein are subject to ch- ange without notice. -
Page 5: Functional Description
Functional Description M1DP-XT-10 M1DP-XT-10 (R0700) (R0700+0701) (A) Straight Guide Ruler (A) Straight Guide Ruler (B) Trimmer Guiding (B) Trimmer Guiding (C) Transparent Cover (C) Transparent Cover (D) Wrench (D) Wrench (E) 3/8" collet (E) 3/8" collet (F) Carbon Brush Carbon Brush... - Page 6 Functional Description Assembly Constant Speed Control Caution: Electronic speed control for obtaining constant speed.Possible to get fine finish, because the rot- Always be sure that the tool is switched off and ating speed is kept constant even under load unplugged before adjusting or checking function condition.
- Page 7 Operating Instructions Assembly Warnings Caution: Before using the tool with the trimmer base, always install the dust nozzle on the trimmer base. Always be sure that the tool is switched off and Set the tool base on the workpiece to be cut without unplugged before carrying out any work on the the bit making any contact.
- Page 8 Operating Instructions cutting grooves. When you wish to cut grooves If the distance (A) between the side of the workpiece more than 3 mm deep, make several passes with and the cutting position is too wide for the straight progressively deeper bit settings. guide, or if the side of the workpiece is not straight, the straight guide cannot be used.
- Page 9 Operating Instructions 1. Wing nut 4. Trimmer guide 2. Guide plate Install the trimmer guide on the tool base with the 3. Straight guide clamp screw (A). Loosen the clamp screw (B) and 4. Center hole adjust the distance between the bit and the trimmer 5.
- Page 10 Operating Instructions Place the tool on a flat surface. Loosen the lock lever and lower the tool body until the bit just touches the flat surface. Tighten the lock lever to lock the tool body. Turn the stopper pole setting nut counterclockwise. Lower the stopper pole until it makes contact with the adjusting bolt.
-
Page 11: Maintenance
Operating Instructions The straight guide is effectively used for straight cuts when chamfering or grooving. If the distance (A) between the side of the workpiece and the cutting position is too wide for the straight guide, or if the side of the workpiece is not straight, the straight guide cannot be used. -
Page 12: Troubleshooting
Troubleshooting Problem Possible casues Remedy Check the plug contect is ok or not/Check Replug /Press the "ON ( I )" side of the Tool can't start the switch is OFF(O) or ON(I)/the power switch/switch on the power socksocket is switch on or not. Tool can't start or big Change a new carbon brush spark when start the...
