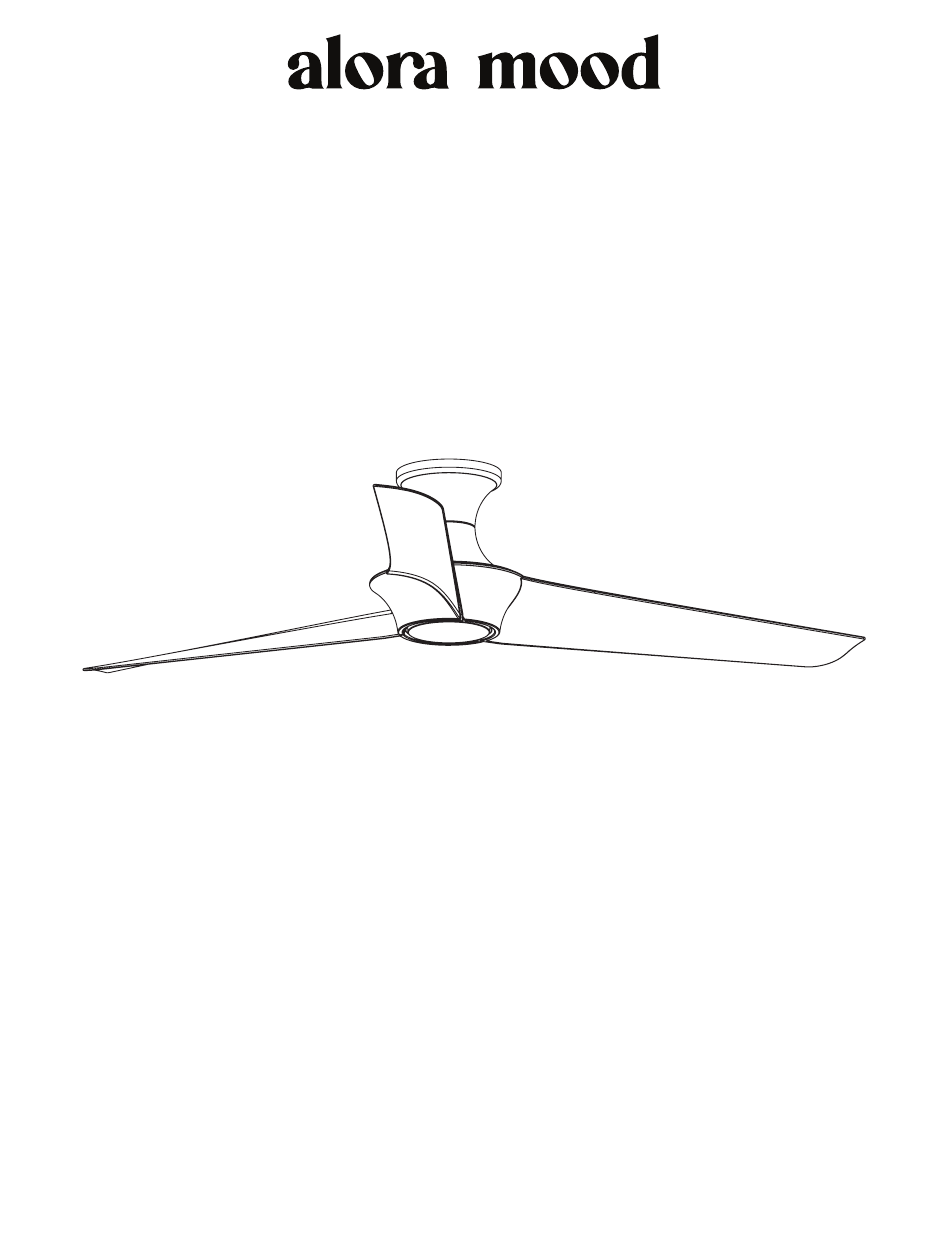

EMIKO HUGGER FAN INSTRUCTION SHEET
MODEL: HF523056
P.
1.855.855.8926 |
E.
technicalsupport@aloralighting.com
CANADA:
19054 28th Ave., - Surrey, BC V3Z 6M3
USA:
3035 E. Lone Mountain Rd. - Las Vegas, NV 89081
www.aloramood.com
20230505

Advertisement

loading
Need help?

Need help?

Do you have a question about the EMIKO and is the answer not in the manual?

Questions and answers

Summary of Contents for Alora EMIKO

  • Page 1 EMIKO HUGGER FAN INSTRUCTION SHEET MODEL: HF523056 1.855.855.8926 | technicalsupport@aloralighting.com CANADA: 19054 28th Ave., - Surrey, BC V3Z 6M3 USA: 3035 E. Lone Mountain Rd. - Las Vegas, NV 89081 www.aloramood.com 20230505...
  • Page 2 SAFETY RULES To reduce the risk of electric shock, ensure electricity The outlet box and support structure must be securely has been turned off at the circuit breaker or fuse box mounted and capable of reliably supporting a minimum before beginning. of 50 pounds.
  • Page 3 CONTENTS • Safety • Fan Blade Installation • Tools Needed • Light Kit Installation • Package Contents • Fan Operation • Hardware Included • Care and Cleaning • Fan Assembly • Troubleshooting • Electrical Connections • Warranty Information TOOLS NEEDED •...
  • Page 4 PACKAGE CONTENTS PART DESCRIPTION Mounting Bracket Canopy Ring Fan Motor Blade Blade Support Plate LED Light kit Assembly Receiver Remote Control Page 3 of 13...
  • Page 5 PREPARING THE MOUNTING HARDWARE Outlet Box Mounting Options If there isn’t an existing UL Listed octagonal mounting box marked “Acceptable for Fan Support” follow the instructions below. (REMINDER: an electrical junction box for use with luminaires is not acceptable for this application) •...
  • Page 6 HANGING THE FAN Carefully lift fan motor assembly (without the blades) into position by hanging the motor Outlet box assembly onto the hook from the ceiling adapter Hook plate allowing it to hang freely. INSTALLATION OF SAFETY CABLE SUPPORT Secure the safety cable to the building structure Wood ceiling joist that independent to the outlet box using safety cable screw and flat washer (included).
  • Page 7 ELECTRICAL CONNECTIONS WARNING: To avoid possible electrical shock, be sure BLK (AC IN) GROUND electricity is turned off at the main fuse box before WH (AC IN) installation. Outlet box NOTE: Control must be installed within 30 feet of fan. Ceiling WARNING: Check to see that all connections are tight, including ground, and that no bare wire is...
  • Page 8 MOUNTING THE FAN MOTOR ASSEMBLY Slide canopy ring onto the top of the fan motor. Grooves Key Hole Remove two of the four fan motor mounting screws from the mounting bracket and loosen Screw the other two screws. Remove the fan motor from the mounting Mounting Bracket bracket hook, and while holding the fan motor...
  • Page 9 INSTALLING THE LED ASSEMBLY WARNING: Before starting installation, disconnect the power by turning off the circuit breaker or removing the fuse at fuse box. Turning power off using the fan switch is not sufficient to prevent electric shock. While holding the LED assembly under your fan, make the polarize plug connections: •...
  • Page 10 OPERATION IMPORTANT: If you have two or more fans, please Light Button: follow steps below to control each fan independently. This button is to control light “ON/OFF” and Also follow steps below to re-pair the remote and “Dimmable” condition. the receiver when needed. SET code setting button: NOTE: The dip switch in the battery compartment Follow the below steps to set the remote control:...
  • Page 11 OPERATION (CONTINUED) NOTE: The learning frequency function and self Over 80W protection: When the receiver calibration test will continue to retain the last set detects motor power consumption which is frequency and calibration set even when the AC greater than 80W, the receiver power will be power is shut off.
  • Page 12 INSTALLING THE REMOTE CONTROL HOLDER Remove the remote control holder cover from Remote control the remote control holder. holder cover Screws Attach the remote control holder with the two remote control holder mounting screw provided. Replace the remote control holder cover into remote control holder.
  • Page 13 TROUBLESHOOTING PROBLEM SOLUTION FAN WILL NOT START Check circuit fuses or breakers. Check wall control LED indicator light. If LED is not illuminated when pushing a button, it is not transmitting a signal. Please check battery, power to wall control/ circuit breaker and all electrical connections.
  • Page 14 KUZCO GROUP CEILING FAN LIFETIME LIMITED WARRANTY Kuzco Group products are warranted against defects in materials and construction, subject to conditions and exclusions, for a period of two (2) years from the date of product shipment to the customer. Kuzco Group warrants the original owner that the motor in the fan will be free from defects for the lifetime of the fan.
