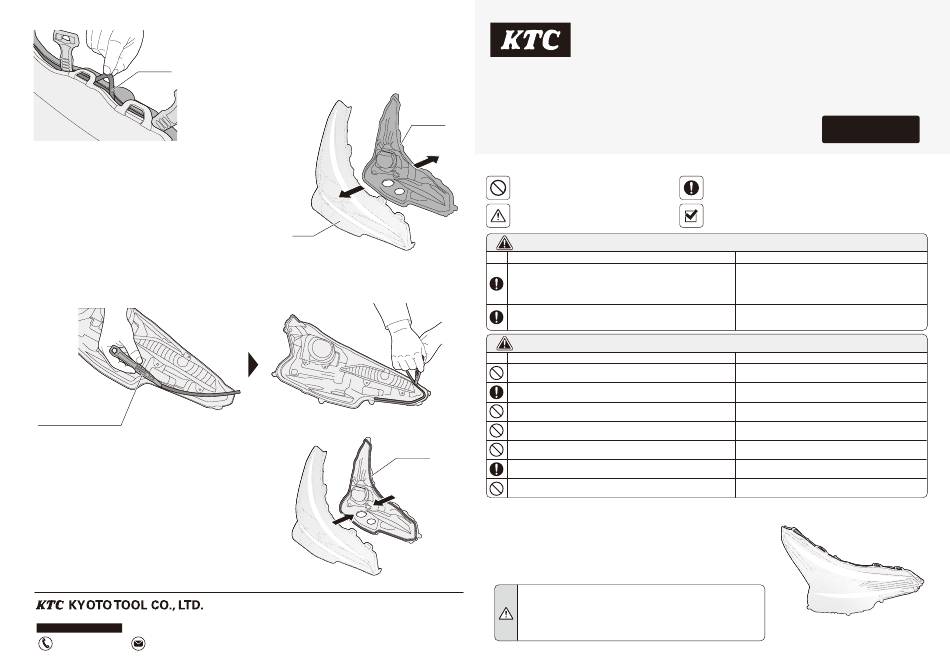

KTC ATP6015 Instruction Manual

5. Pull the gasket out through the gap where you inserted the
headlamp wedge.
Gasket
6. Open lens with the plier and repeat inserting headlamp lens
wedge. Remove all gaskets, separate the housing from lens
to complete the installation.
■Installing the gasket
1. Install a new gasket while holding it down by using a headlamp lens gasket spatula.
HEADLIGHT LENS GASKET
MOUNTING SPATULA
2. Install the gasket around the circumference, and complete
by aligning the housing and the lens.
128,Sayama-Shinkaichi, Kumiyama-cho, Kuse-gun, Kyoto, 613-0034, Japan
Global Sales Department
+81 774 46 3717 contact@kyototool.co.jp
Housing
Lens
Install the gasket while holding it down with the spatula.
Gasket
en.ktc.jp
Country of origin: JAPAN
Product design might be changed for the improvement
without the notifications.
Thank you very much for purchasing our product. Please read this
Instruction Manual carefully for your safety.
HEADLIGHT LENS REPLACEMENT TOOL SET
No.ATP6015
Instruction Manual
The following symbols are used in this instruction manual.
Prohibited actions
Symbols prohibit the act in handling the product.
Caution
Symbols call attention to product handling.
Warning
May cause death or serious injury.
Important matter
Symbols
Regarding the work procedure for disassembling and assembling each
part and handling new parts, a person who has the qualifications
stipulated by law should fully understand the information (service manuals
and work instructions) from the automobile manufacturer and work.
Be sure to remove the headlamp from the vehicle before carrying out
the work described in this instruction manual.
Caution
May cause injury or property damage.
Important matter
Symbols
Do not use this product for purposes other than its original use.
Discontinue use if any abnormalities such as cracks,
chips, or deformation are found.
Do not disassemble or modify the product.
Do not strike the product.
Do not use in unstable places.
Wear protective equipment and appropriate clothing when
using the product.
Do not allow chemicals, seawater, moisture, etc. to
adhere to the product.
Precautions before using
The headlamps shown in this instruction manual are examples. Due to the
shape and position of the parts in some car models, it may not be possible
to smoothly install or remove the headlamps even if the procedure in this
manual is followed.
This product is a tool to assist with maintenance specified by the
automobile manufacturer. We are not responsible for any
problems with the headlamp itself.Please check the maintenance
instructions from the manufacturer for the handling precautions of
the headlamp itself, and perform the work with sufficient care.
Professional use
Must conduct
Symbols represent actions that must be performed when
handling products.
Confirmation matter
Symbols indicates items to be checked before handling a
product, and application of usage.
Hazards and damages
Failure to do so may result in serious injury or
damage to the unit or vehicle.
Failure to do so may result in serious injury or
damage to the unit or vehicle.
Hazards and damages
May cause injury or property damage.
May cause injury or property damage.
May cause injury or property damage.
May cause property damage.
May cause injury or property damage.
May cause injury or property damage.
May cause property damage.
Headlamp example in this instruction manual
Toyota Prius (ZVW5#)
