Item# 1008 435 695
Model #HPSA21CWB
USER GUIDE

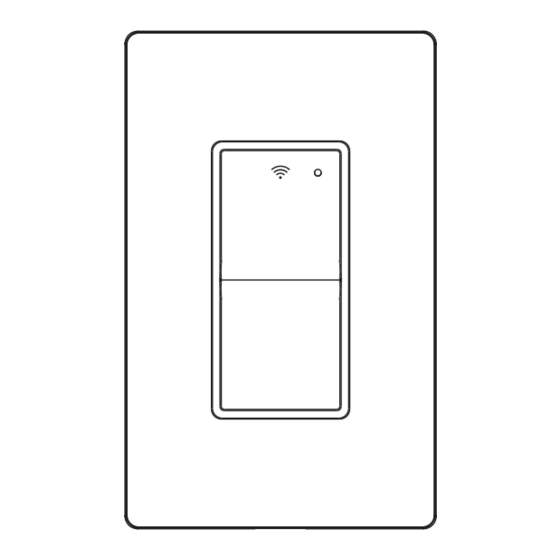

3-Way Smart Light Switch
THANK YOU
We appreciate the trust and confidence you have placed in Commercial Electric
through the purchase of this Smart Light Switch. We strive to continually create quality
products designed to enhance your home. Visit us online to see our full line of
products available for your home improvement needs. Thank you for choosing
Commercial Electric!
Advertisement
Table of Contents
Related Manuals for Commercial Electric HPSA21CWB
Summary of Contents for Commercial Electric HPSA21CWB
- Page 1 3-Way Smart Light Switch THANK YOU We appreciate the trust and confidence you have placed in Commercial Electric through the purchase of this Smart Light Switch. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
-
Page 2: Table Of Contents
Table of Contents Safety Information .......... FCC Regulation ..........Wireless Protocol ..........5 Warranty ..............Package Contents .......... Installation ............. Operation ............... Specification ............Troubleshooting .......... -
Page 3: Safety Information
Safety Information WARNING: • Not compatible with standard 4-way. Do not exceed the load power rating limit of the device. Maximum total wattage rating: Up to 300 total watts for LED and CFL; 600W/120V for Incandescent/Halogen. For indoor use only. Do not use in wet location. •... -
Page 4: Fcc Regulation
Responsible Party Leedarson America, Inc. 300 Technology Court SE Suite 100; Smyrna, GA 30082 1-678-293-8382 Unique Identifier: HPSA21CWB (SKU # 1008 435 695) Contains FCC ID: 2AB2Q-LA02301 This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. - Page 5 FCC Regulation (continued) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
-
Page 6: Wireless Protocol
Wireless Protocol The Wi-Fi CERTIFIED™ Logo is a registered trademark of Wi-Fi Alliance®. Apple and the Apple logos are trademarks of Apple, Inc., registered in the U.S., and other countries. App Store is a service mark of Apple Inc. Google, Google Play and Google Home are trademarks of Google LLC. -
Page 7: Package Contents
HUBSPACE APP QUICK START GUIDE THANK YOU We appreciate the trust and confidence you have placed in Commercial Electric through the purchase of this Smart Outlet. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs. -
Page 8: Installation
Installation Turn power off at the circuit breaker or fuse for the light switch that you are replacing. Remove the old light switch by disconnecting all wires. Connect the new light switch with the following diagram in the manual or the Home Depot website. If the wires are different than the diagram shown or on the website, or you are uncomfortable with the installation, call a licensed electrician for help. - Page 9 Installation (continued) Line/Load (Black) GROUND Neutral (White) TRAVELER1 NEUTRAL Traveler1(Red) LINE/LOAD TRAVELER2 Ground (Green) Wire Connection Details (Single-Pole Only): □ Connect GROUND wire to Smart Switch. □ Use the included Wire Nuts (D): Connect black LINE/LOAD wire on Smart Switch to LINE/HOT wire (typically black). □...
- Page 10 Installation (continued) B. 3-Way Only - for lights controlled from 2 locations. Smart switch + traditional switch with load light. 120V POWER SUPPLY ROMEX(BOX TO LIGHT) Line/Load (Black) Ground Line/Load(Black) (Green) GROUND Neutral (White) Traveler (Black) Neutral TRAVELER1 NEUTRAL (White) Traveler 1 (Red) LINE/LOAD TRAVELER2...
- Page 11 Installation (continued) Smart switch with load light + traditional switch. ROMEX(BOX TO LIGHT) 120V POWER SUPPLY Line (Use White traveler wire) Ground (Green) Line/Load (Black) GROUND Traveler Neutral (White) (Black) TRAVELER 1 NEUTRAL Traveler 1 (Red) LINE/LOAD TRAVELER 2 Traveler 2 (Red) Ground (Green) Traveler (Red) ROMEX(TRAVELER BOX TO BOX)
- Page 12 Installation (continued) Two smart switches wiring. 120V POWER SUPPLY ROMEX(BOX TO LIGHT) Neutral (White) Line Load (Black) (Black) Ground Load (Black) (Green) GROUND Traveler 1 (Red) Neutral (White) TRAVELER1 NEUTRAL TRAVELER1 NEUTRAL Traveler 2 Traveler 1 (Red) (Red) LINE/LOAD LINE/LOAD TRAVELER2 TRAVELER2 Traveler 2 (Red)
- Page 13 Installation (continued) Wire Connection Details (for all 3-way setups shown): □ Connect GROUND wire to Smart Switch. □ Use the included Wire Nuts (D): Connect TRAVELER 1 and TRAVELER 2 wires on Smart Switch to red and black TRAVELER wires in wall. □...
- Page 14 Installation (continued) Turn power ON at the circuit breaker or fuse. Installation is complete. Install the smart light switch in a multi-gang application. In multi-light switch installations, the reduction of the light switch’s capacity may be required. Refer to below chart for maximum load per light switch.
-
Page 15: Operation
Operation Download the Hubspace™ app from the Apple App Store or the Google Play Store. Sign in if you have an account, or register to create an account then sign in. Connect your light switch to power and follow the instructions on the app screen. - Page 16 Operation (continued) Scan the QR code on the light switch or in the Quick Start Guide. HUBSPACE APP QUICK START GUIDE NOTE: If the QR code cannot be scanned, you can enter the code manually. Tap Enter Code and follow the instructions. You can nd the QR code either on the front side or the back side of light switch housing.
-
Page 17: Specification
Operation (continued) Set up your Voice Assistant. You can connect your Smart Light Switch to Google Home and Alexa from the Hubspace app. Or, you can sign in to the Alexa app or Google Home and connect to your Hubspace product from there. Specification Input 120VAC, 60Hz... -
Page 18: Troubleshooting
Troubleshooting Problem Solution What product can be Maximum total wattage rating: controlled with the -Up to 300 total watts for LED and CFL Smart Light Switch? -600W/120V for Incandescent/Halogen Loading bulb has a bad connection. Lights are ickering. Rewire or replace the light bulb. Circuit breaker or fuse has tripped. - Page 19 Troubleshooting (continued) Problem Solution I cannot nd the It is on the light switch housing. A copy of the QR QR code. code is also included in your product’s documentation. The QR code has become Under the QR code is a 24-digit code. You can damaged.
- Page 20 Questions, problems, missing parts? Before returning to the store, call Hubspace Customer Service 8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST, Saturday 1-877-592-5233 HOMEDEPOT.COM/Hubspace Retain this manual for future use.
