Summary of Contents for DEICO DE9005

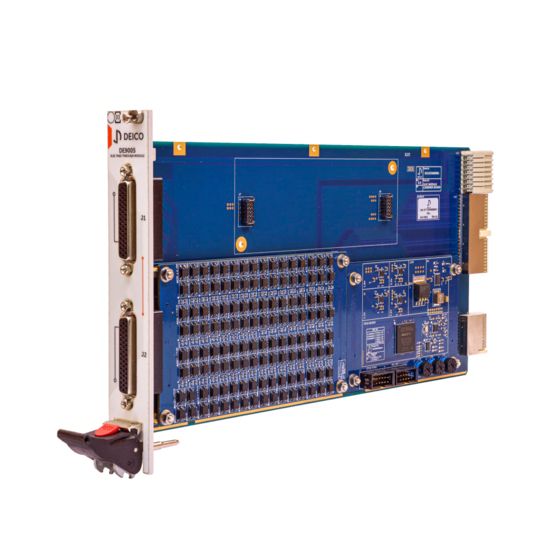

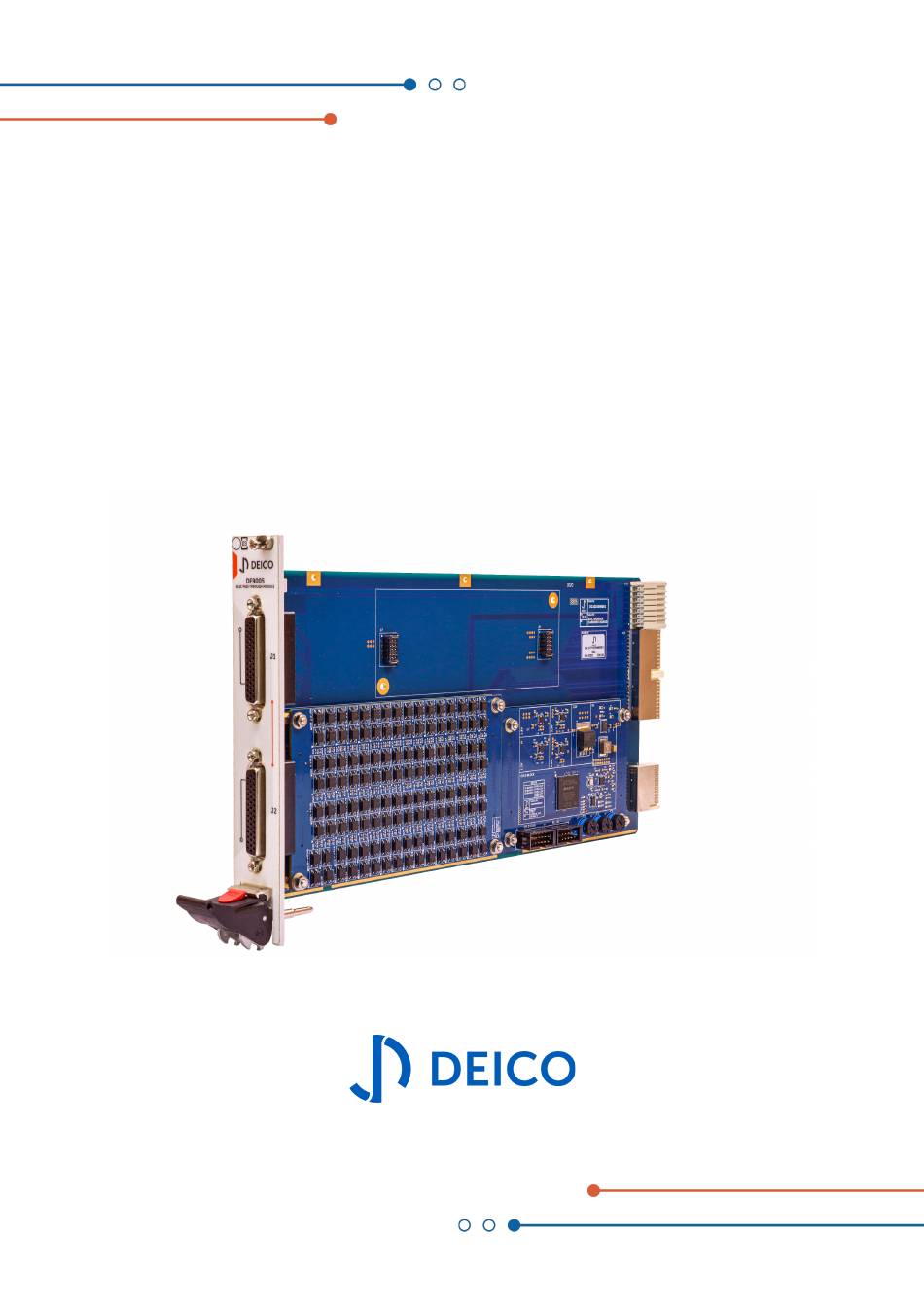

- Page 1 DE9005 SLSC PASS THROUGH MODULE...
- Page 2 1 DESCRIPTION DE9005 SLSC Pass Through Modul is a 64-channel relay module that is used in SLSC chassis and connected to test equipment and DUTs. Module is suitable for 64-channel single or 32- channel differential switching. There is a single test output for switching signals on the module.
- Page 3 2 HARDWARE OVERVIEW 2.1 Circuity www.deico.com.tr rev.0 2 / 7...
- Page 4 MPN: 2311770-1 2.2.3 Environmental Specification Condition Value Operating Humidity Relative, non-condensing 10%- 90% Storage Humidity Relative, non-condensing 5%- 95% Operating Temperature Forced-air cooling from chassis 0 °C-40 °C Storage Temperature Non-operational -40 °C – 85 °C www.deico.com.tr rev.0 3 / 7...
- Page 5 P1.0- P5.0- P0.2+ P4.2+ P0.2- P4.2- P0.3+ P0.1+ P4.3+ P4.1+ P0.1- P4.1- P0.3- P0.0+ P4.3- P4.0+ P0.0- P4.0- J1, J2 Connector Pin Assignments Signal Description Px.y Line y in Port x Ground connection No connection www.deico.com.tr rev.0 4 / 7...
- Page 6 P5.2- P5.3+ P5.3- P6.0+ P6.0- P6.1+ P6.1- P6.2+ P6.2- P6.3+ P6.3- P7.0+ P7.0- P7.1+ P7.1- P7.2+ P7.2- P7.3+ P7.3- XJ2 Connector Signal Descriptions Signal Description Px.y Line y in Port x Ground connection No connection www.deico.com.tr rev.0 5 / 7...
- Page 7 TEST_N 4 CONFIGURATION DE9005 control is based on NI-SLSC API. Before installing the device, NI-SLSC 19.5 or later must be installed. After installing software & the device, the device appears in the <LabVIEW Folder>\examples\ SLSC\Configuration.vi front panel under the related SLSC Chassis when the VI is executed.
- Page 8 Furthermore, any changes or modifications to the product not expressly approved by DEICO could void your authority to operate it under your local regulatory rules.
