- Page 1 Nucleus 7 S ® Sound Processor Quick reference...
- Page 2 About The Nucleus 7 S Sound Processor User Guide ® is the main source of information about your sound processor. It includes information about the sound processor’s intended purpose, indications and contraindications, plus warnings and troubleshooting. After you have read the User Guide, use this quick reference as a refresher for common tasks related to your sound processor.
-

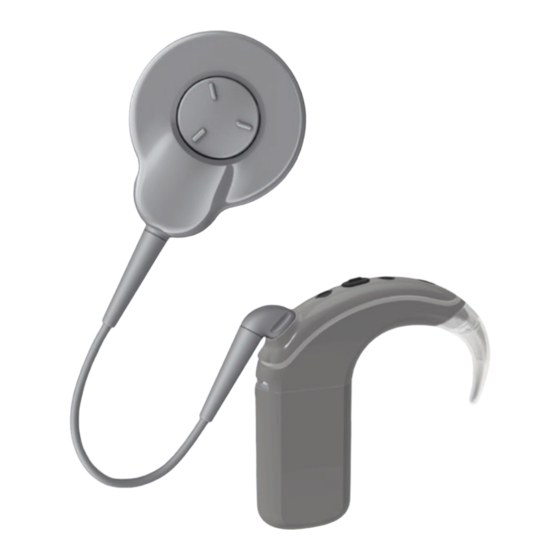

Page 3: Sound Processor
Sound Processor Coil Magnet Microphones Indicator Coil light cable Earhook Processing unit Control button Serial number Battery module QUICK REFERENCE... - Page 4 Lock/unlock battery Lock the battery to the processing unit for tamper resistance. Left to lock / right to unlock. NUCLEUS ® 7 S SOUND PROCESSOR...
- Page 5 Remove/attach battery Remove Attach Sound processor turns on automatically. QUICK REFERENCE...
-
Page 6: Change Disposable Batteries
Change disposable batteries 1. Turn the lock screw 2. Slide to open. anticlockwise to unlock the tamper- resistant battery cover (clockwise to lock). NUCLEUS ® 7 S SOUND PROCESSOR... - Page 7 3. Insert two new 675 4. Replace battery (PR44) zinc air cover. disposable batteries processor Sound (not silver oxide or turns on alkaline), flat side automatically. facing up. QUICK REFERENCE...
- Page 8 Wear your sound processor 1. Place the sound processor on your ear, letting the coil dangle. NUCLEUS ® 7 S SOUND PROCESSOR...
- Page 9 2. Move the coil sideways and onto your implant. CAUTION If you have two implants, you must use the correct sound processor for each implant. QUICK REFERENCE...
-
Page 10: Turn On And Off
• Press and hold button for 5 seconds, until it turns off. NOTE If you do not connect the sound processor to your implant, it will turn off automatically after two minutes, if enabled by your clinician. NUCLEUS ® 7 S SOUND PROCESSOR... -
Page 11: Change Program
Change program Short-press button to change program. Number of beeps or green flashes (if set up by your clinician) indicates the program number. QUICK REFERENCE... -
Page 12: Stream Audio
Stream audio Press and hold button for 2 seconds then release to stream audio. Blue: streaming audio from telecoil / wireless accessories. Green: receiving sound from microphones. NUCLEUS ® 7 S SOUND PROCESSOR... - Page 13 Press and release again if you need to cycle to another audio source: FIRST PRESS Telecoil (if set up) SECOND PRESS First paired wireless accessory THIRD PRESS... Next paired wireless accessory... Short-press button to stop streaming and return to previous setting.
- Page 14 (Child mode only). Turning on and changing programs. Number of flashes indicates the number of the current program. Sound processor flashes while receiving … sound from audio source (Child mode only). Turning off sound processor. NUCLEUS ® 7 S SOUND PROCESSOR...
- Page 15 Alerts LIGHT WHAT IT MEANS Sound processor flashes while coil is off … (or connected to the wrong implant). Sound processor battery is empty. Change battery. Fault. Contact your clinician. Stays on until the issue is resolved. QUICK REFERENCE...
- Page 16 Hear now. And always Cochlear Ltd (ABN 96 002 618 073) 1 University Avenue, Macquarie University, NSW 2109, Australia Tel: +61 2 9428 6555 Fax: +61 2 9428 6352 Cochlear Ltd (ABN 96 002 618 073) 14 Mars Road, Lane Cove, NSW 2066, Australia Tel: +61 2 9428 6555 Fax: +61 2 9428 6352 Cochlear Deutschland GmbH &...
