Summary of Contents for ECO POWER SBP-XFMR Series

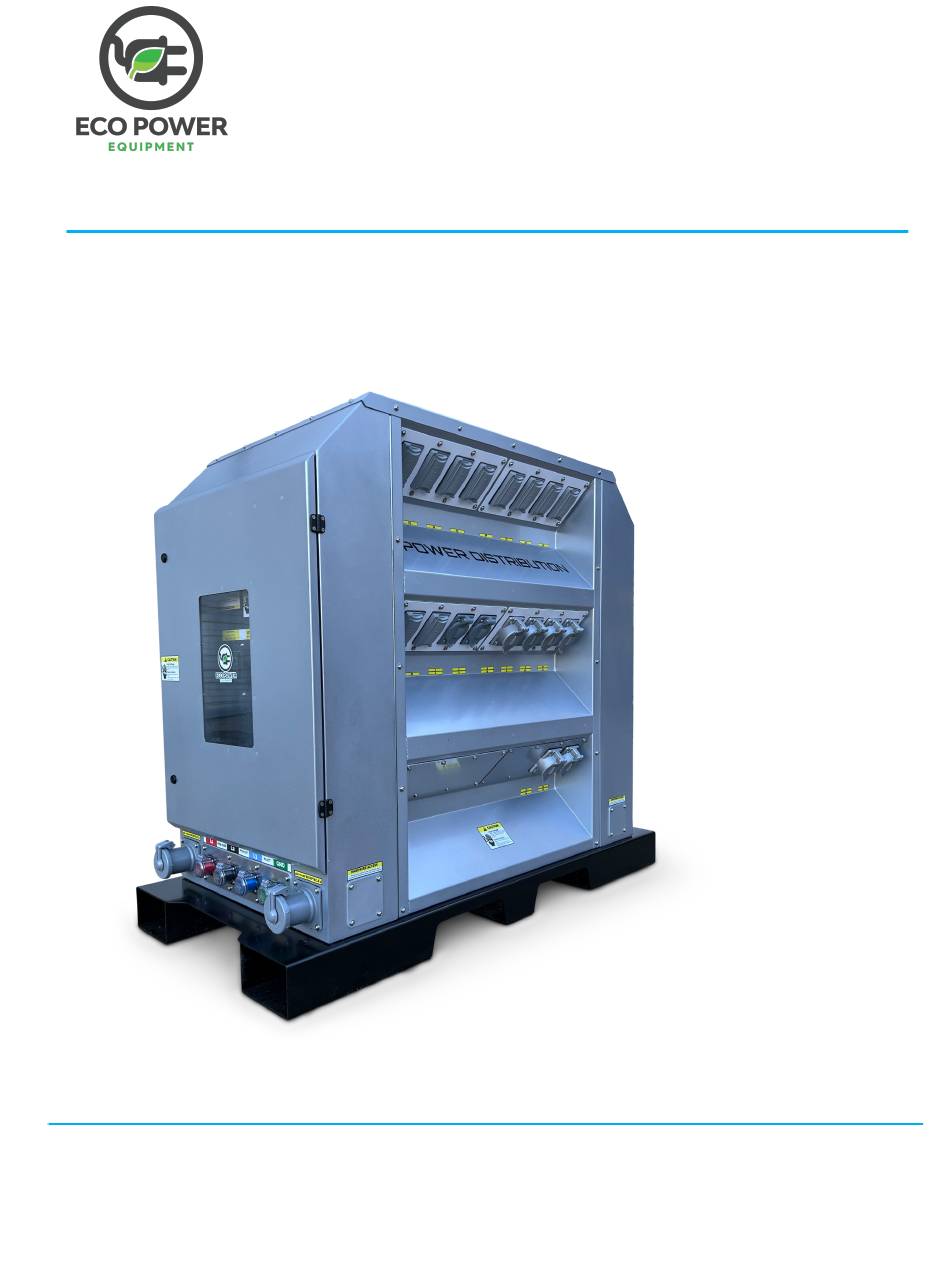

- Page 1 Installation and User Instructions SBP-XFMR Series...
- Page 3 Neither Eco Power Equipment Ltd. nor any of its affiliates or subsidiaries shall be responsible or liable for misuse of the information that is contained herein. If you have any suggestions for improvements or amendments or have found errors in this publication, please notify us.
- Page 4 TRADEMARKS Eco Power Equipment Ltd. has made every effort to supply trademark information about company names, products, and services mentioned in this manual. Trademarks shown below were derived from various sources. All trademarks are the property of their respective owners.
-
Page 5: Table Of Contents
Table of Contents 1. PREFACE Description of the User Conventions Used in This Manual Explanation of Safety Warnings Retaining Instructions Obtaining Documentation and Information Internet Ordering Documentation Other languages Documentation Feedback Support and service Description of the product Intended Use and Reasonably Foreseeable Misuse Setup Process Connecting Disconnecting... -
Page 6: Preface
1.1 Description of the User This manual is intended to support end users of the Eco Power Equipment SBP power distribution products. Our products are designed and intended to provide site power solutions for temporary and prime rated power on a variety of applications including construction job site, oil, and gas job sites, pipelines, events, security, and government or military operations. -
Page 7: Explanation Of Safety Warnings
1.3 Explanation of Safety Warnings Danger indicates a hazard with a high level of risk which, if not avoided, will result in death or serious injury Warning indicates a hazard with a medium level of risk which, if not avoided, could result in death or serious injury. Caution indicates a hazard with a low level of risk which, if not avoided, could result in minor or moderate injury. -
Page 8: Obtaining Documentation And Information
This is the English user manual. Manuals in other languages are available upon request. Not all languages are covered. 1.5.4 Documentation Feedback If you are reading Eco Power Equipment Ltd. product documentation on the internet, any comments can be submitted on the support website. Comments can also be sent to support@ecopowerequip.com We appreciate your comments. -
Page 9: Description Of The Product
The machine is a mobile, skid-mounted transformer with ineghrated power distribution panel board and receptacle outlets. This system is designed to support power distribution application. The Eco Power Equipment SBP unit consists of a skid with power distribution equipment mounted within a NEMA 3R tested sheet metal enclosure. - Page 10 Follow safe Electrical Work Practices: HAZARD OF ELECTRIC SHOCK, EXPLOSION, OR ARC FLASH ● Apply appropriate personal protective equipment (PPE) and follow safe electrical work practices. See NFPA 70E, CSA Z462. ● This equipment must only be installed and serviced by qualified electrical personnel. ●...
-
Page 11: Setup Process
Equipment Spacing: Eco Power Equipment recommends that SBP-XFMR type power transformers be mounted so that there is an air space of no less than 305 mm (12”) between the enclosure and any adjacent wall unless otherwise marked. Furthermore, it is recommended that a minimum air space of 610 mm (24”) be allowed above the transformer for adequate cooling. - Page 12 Location and Enviroment Dry type transformers should be located such that they comply with all applicable local safety and electrical codes. It should not interfere with the normal movement of personnel, equipment and material and should not expose the transformer to potential damage from cranes or other moving equipment. Enclosures are intended for use in secured areas, generally not accessible to unauthorized or untrained persons.
-
Page 13: Connecting
15. It is advised that the loading is increased gradually such that the circulating current begins from 10% of the rated amperage, and increase in 10% -15% increments every 10 minutes until it reaches 50% – 75% of the rated current. -
Page 14: How To Use The Product
No supply cables should come in contact with the core or any live part except the terminal that it is intended for. Ensure that minimum electrical clearances are maintained. (Refer to Table 1, Section 7.4) ● Never modify equipment without the written consent of Eco Power Equipment Transformer Specific Details ●... - Page 15 been abraded, assemble the parts and tighten securely. Always use two wrenches when breaking or making joints to prevent damage to parts. Table 2 below summarizes the recommended torque values for the different types of bolted electrical connections found on dry-type transformers. All electrical connections should be checked prior to the energization of a unit. Tap connections are typically provided to adjust for difference between nominal and tested incoming voltage values.
- Page 16 6. Verify all coils are connected at identical taps. 7. Torque the taps connections to the recommended values per Table 2, Section 7.5. 8. Remove the shorting connection on the HV and LV terminals. 9. Inspect the transformer to ensure that no tools or other objects have been left in the vicinity of the transformer 10.
- Page 17 Loading: When energizing a transformer from a cold start, it is preferable to slowly increase the load while monitoring current, voltage and load levels. If this is not possible, full load may be applied with caution. Note: When energizing a dry type transformer for the first time, some smoke and vapor may appear during the first few hours of operation.
- Page 18 Panel Board Specific Details See Panel board manufacturers documention for completed details. For QOB Circuit Breakers: Push inward until the circuit breaker connector is centered on the branch connector mounting hole. Engage the screw into the branch connector hole and tighten it to the torque values shown on the interior wiring and torque diagram.
- Page 19 Figure 4: QO and QOB Circuit Breaker Installation and Removal...
-
Page 20: Technical Life Span
Unit Lift Span: 5+ Years in mobile applications ● Eco Power recommends that our customers implement an inspection process regularly on equipment to ensure long life and successful operation: regular torque procedures on mobile equipment are required for long term success, either with a regular schedule torque between maintenance, or advising customer to torque check before each application setup 2.4.3... -
Page 21: Inspection Tasks
2.5 Inspection Tasks 2.5.1 Before use inspection tasks (never open a live panel, see above safety recommendations) Task Action Visual inspection of the unit Remove cover panels and inspect all items Torque all connections MCCB tabs and cam lock points Cam lock connections and torque Ensure proper mating MCCB switch settings...
