Akku Pack Guidance
Model:MC166
To ensure proper use of the battery, please read the manual carefully before using.
1. Scope
The specification shall be applied to Li-ion rechargeable Akku-battery pack of Model MC166. The
product is compliacnt with ROHS.
2. Battery Configuration
2.1 Cell:18650, 25.2V, 1800mAH

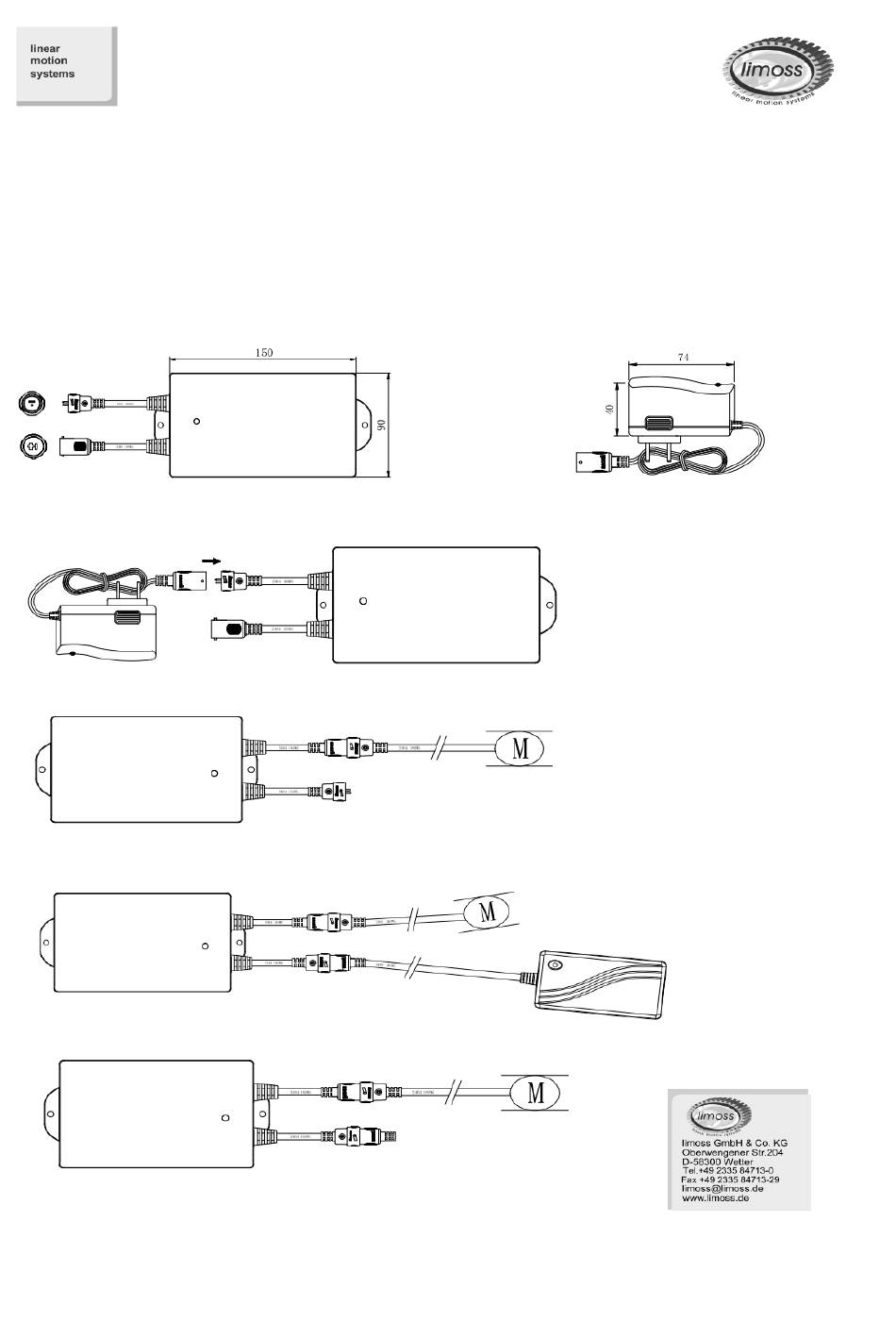

2.2 Outlook Drawing
(unit: mm)

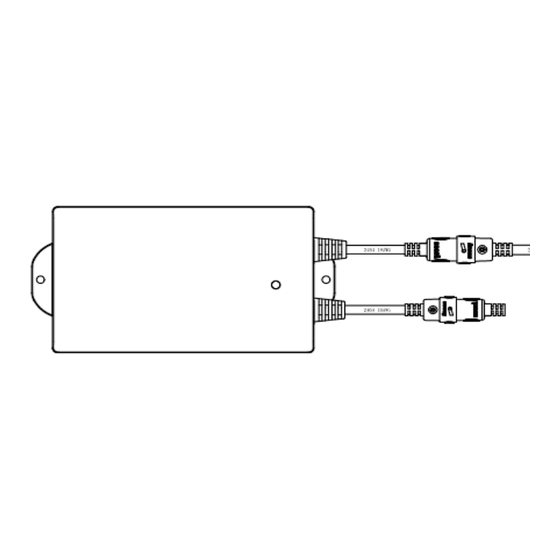

2.2.1 Battery Pack
2.2.2 Charger(optional accessories)
2.3 Cable Connecting
2.3.1 The red LED will flash when recharging, and turn to green when full charged.
2.3.2 Discharging without SMPS, when battery is buzzing, it need to be charged immediately.
2.3.3 Discharging with SMPS, SMPS will supply the power. If SMPS stop working, the power will
switch to battery pack with un-interruption.
2.3.4 Please plug the dummy cap to the input connector when SMPS disconnected.
GL-TE-023(V01)
Advertisement
Table of Contents
Summary of Contents for limoss MC166
- Page 1 Model:MC166 To ensure proper use of the battery, please read the manual carefully before using. 1. Scope The specification shall be applied to Li-ion rechargeable Akku-battery pack of Model MC166. The product is compliacnt with ROHS. 2. Battery Configuration 2.1 Cell:18650, 25.2V, 1800mAH 2.2 Outlook Drawing...
- Page 2 3. General Performance 3.1 Operating temperature: 0~45℃ when charging; -20~60℃ when discharging. 3.2 Operating Humidity: 0~100％RH 3.3 Storage temperature: -20~40℃ Storage Humidity: 0~100％RH 4. Period of Warranty: The period of warranty is 1 year from the date of produce. Guarantee to give a replacement in case of cells with defects due to manufacturing process instead of the customer abuse and misuse.
