Summary of Contents for airinspace Wall-i CO2
Page 1

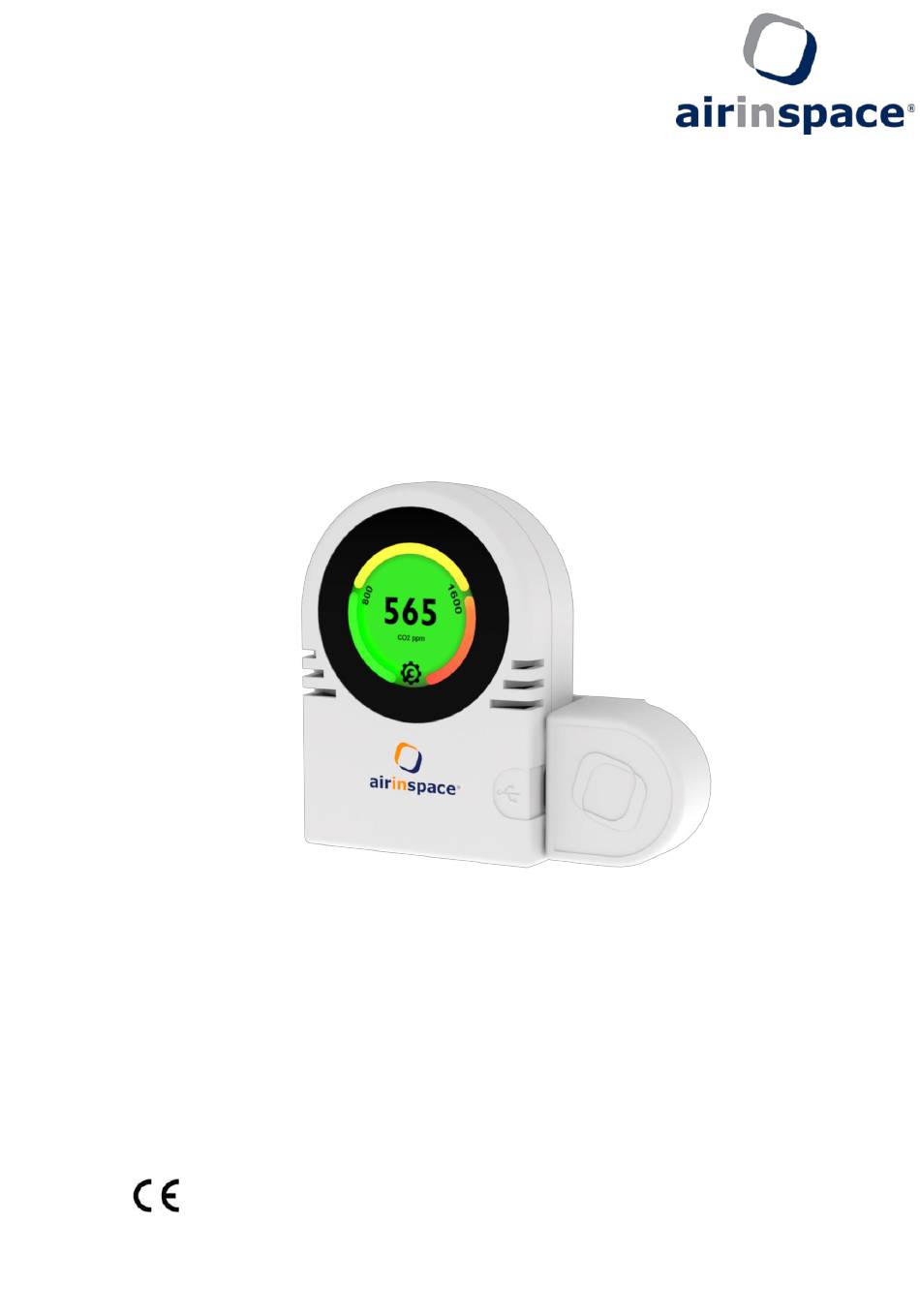

Wall-i sensor USER MANUAL Wall-i European Low Voltage Directive (LVD) 2014/35/EU European Electromagnetic Compatibility Directive (EMC) 2014/30/EU User manual – – Ed 01_28_October_2021 Wall-i...
Page 2
WARNING We strongly recommend that you read the entire manual before putting the Wall-i into operation for the first time. PACKAGE CONTENTS • Wall-i Unit. • 1 Box bracket • 1 Micro USB type B power supply with universal plug. •...
TABLE OF CONTENTS SECTION 1 - GENERAL INFORMATION ......................3 Safety instructions ....................3 Regulatory standard ..................... 4 Normative standards .................... 4 Classification ......................4 Description of the device ..................5 Overview ......................5 1.5.1 Markings and warnings ..................5 1.5.2 Functional description of the device ..............
THE DEVICE BY DISCONNECTING IT FROM THE MAINS. WALL-I IMPORTANT: WORK ON (INCLUDING ELECTRICAL CIRCUITS, ELECTRONIC CARDS) ® MUST ONLY BE CARRIED OUT BY airinspace MAINTENANCE PERSONNEL OR DULY TRAINED PERSONNEL. User manual – – Ed 01_28_October_2021 Wall-i 3 /12...
REGULATORY STANDARD Wall-i devices are CE-marked and comply with European regulations: European Low Voltage Directive (LVD) 2014/35/EU European Electromagnetic Compatibility Directive (EMC) 2014/30/EU NORMATIVE STANDARDS • NF EN 61010-1 (2011). Safety requirements for electrical equipment for measurement, control and laboratory use. Part 1: General requirements. •...
DESCRIPTION OF THE DEVICE 1.5.1 OVERVIEW Painted plastic housing Touchscreen Air intake vents USB power supply 1.5.2 MARKINGS AND WARNINGS Label Description Position Product – serial number On the back of the product User manual – – Ed 01_28_October_2021 Wall-i 5 /12...
20% to 90% Dust level < 1 mg/m Note: The information contained in this table is for information only. For any information on airinspace ® measurements and tolerance intervals, please contact at the address given at the end of this document.
SECTION 2 - INSTALLATION/USE INSTALLATION Wall-i is initially designed to be mounted to a wall. It can however be placed on a support (shelf, cabinet, desk, etc.) Wall bracket installation procedure: Screw fastening The unit comes with a fixing kit including 2 nylon plugs for concrete, plaster or plasterboard walls and 2 screws.
Page 9
Wall bracket installation procedure: Double-sided fastening. ▪ Apply double-sided tape to the back of the bracket in order to fix it to the wall in the desired location. Once the wall bracket has been fastened, ▪ Run the cable through the cut-out, and pull it out towards the inside of the bracket. ▪...
Page 10
▪ Tighten the tamper-resistant screw to secure the Wall-i to its bracket. User manual – – Ed 01_28_October_2021 Wall-i 9 /12...
START-UP Connect the transformer in the Wall-i package to a mains socket: 100-240V ~ 50/60 Hz. Connect the USB cable to the box. IMPORTANT: THE POWER PLUG MUST COMPLY WITH REGULATORY REQUIREMENTS AND BE PERIODICALLY CHECKED. 2.2.1 USE On starting up, the main screen displays the CO concentration value of the room via a ppm counter.
2.2.2 CALIBRATION PROCEDURE Wall-i can be calibrated on this screen. To display the secondary screen, press the icon. Press the button to launch the calibration, which will take 10 minutes. IMPORTANT: DO NOT OBSTRUCT THE AIRFLOW OUTLET, OTHERWISE YOU MAY OBTAIN INCORRECT RESULTS AND THE UNIT MAY BE DAMAGED.
