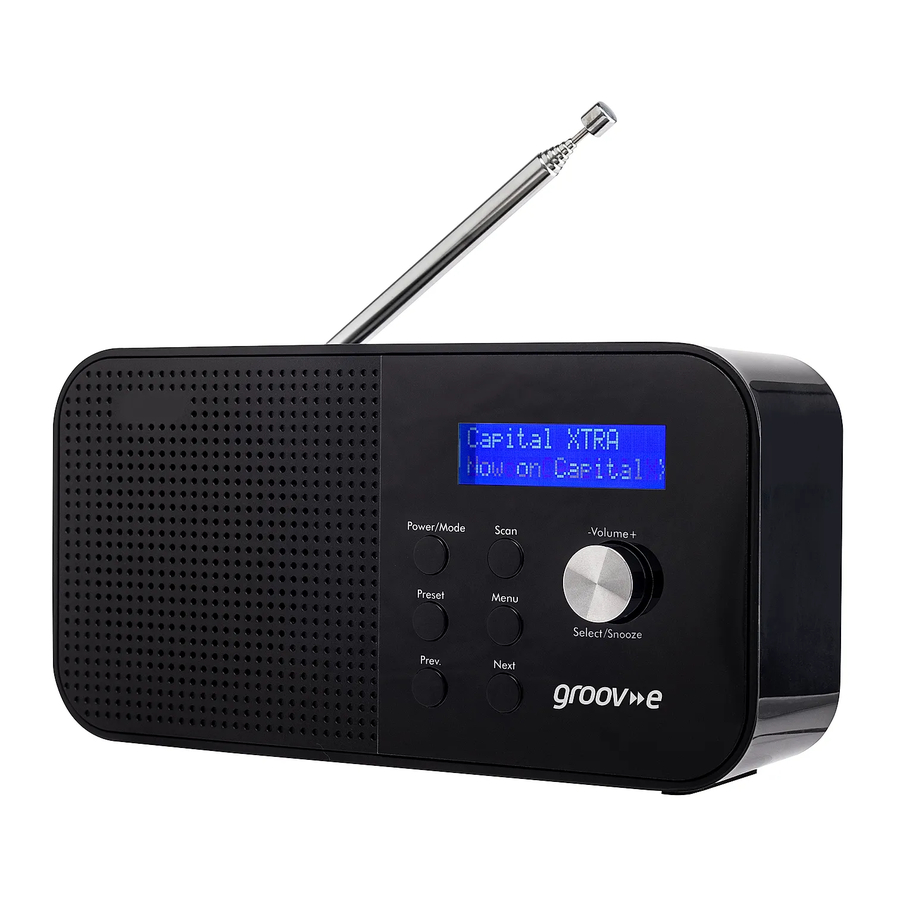

Groov-e VENICE, GV-DR04-BK - Radio Manual

Setting up

1. Connect the mains power lead into the socket on the back of the radio and fully extend the telescopic aerial in a vertical position to obtain the maximum signal strength.
2. Plug the power adaptor into the mains power wall socket and switch on.
3. Short press the Power button. Your radio will switch on and on first use will begin an automatic scan for DAB radio stations. The DAB radio station list is stored in the memory and so the next time you switch your radio on, the station search does not take place.
4. Use the Prev. and Next buttons to scroll through the station list and press the rotary control to Select.

Inserting the batteries

Optional
Before installing the batteries (not included) please ensure that the radio is switched off and is unplugged from the mains power supply.

1. On the back of the radio, push in the tab to release and remove the battery compartment cover. Insert 4 x AA good quality alkaline batteries, making sure to note the '+' and '-' markings and position the batteries the correct way around. Replace the battery cover, making sure it 'clicks' shut.
2. For battery operation, please switch off the mains adaptor and remove the mains power plug from the back of the radio.

Setting an Alarm

In DAB or FM mode:

1. Long press the Menu button to enter the Menu options.
2. Short press the Prev or Next buttons to scroll to '<System>'. Short press the rotary control.
3. Short press the Prev or Next buttons to scroll to '<Alarm>'. Short press the rotary control.
4. '<Alarm 1> is displayed'. Short press the rotary control or use the Prev or Next button to scroll to '<Alarm 2>' (if required) and short press the rotary control.
5. 'Alarm 1 (or 2) Setup' is displayed. Short press the rotary control. 'Alarm 1 (or 2) Wizard On time' is displayed and the hour digits for the alarm will flash.
6. Use the Prev or Next buttons to scroll and short press the rotary control to change and confirm the alarm time, each alarm option and setting.
7. When you have completed the Alarm set up, 'Alarm 1 (or 2) Wizard' is displayed again, together with 'Alarm Off (or On)'.
8. Use the Prev or Next buttons to choose 'Alarm On' or 'Off' and short press the rotary control. 'Alarm Saved' is displayed.

Stop the Alarm

When the alarm sounds, short press the Power/Mode button, 'Alarm off' is displayed. Alternatively, you can short press the rotary control to Snooze (see Snooze function below).

Snooze

When the alarm sounds, you can short press the rotary control to snooze for 10 minutes. A snooze time countdown will be displayed until the alarm sounds again.

Controls and Description

1. Power/Mode
   Short press: Power on.
   Short press: Change the mode (DAB/FM).
   Short press when the Alarm sounds: Alarm off
   Long press: Standby mode.
   Long press in Standby mode: Power off.
2. Scan:
   Short press in DAB mode: Rescans for DAB stations.
   Short press in FM mode: Scans up the FM Frequency band.
3. Rotary volume control/Select/Snooze:
   Turn clockwise to increase the volume.
   Turn anti-clockwise to decrease the volume.
   Short press: Select a displayed DAB radio station in the station list/Select or confirm an option in the Menu/Confirm or Select a radio Preset.
   Short press when the Alarm sounds: Activates a 10 minute Snooze.
4. Preset:
   Long press: Store DAB or FM radio presets (10 DAB/10 FM). Press rotary control to confirm.
   Short press: Recall stored DAB or FM radio presets. Press rotary control to confirm.
5. Menu:
   Long press: Enter the Menu options. Short press: Change the displayed radio station information.
   Short press within the menu: Steps back and exits the Menu.
6. Prev:
   Short press in DAB mode: Moves back through the DAB station list.
   Short press in FM mode: Moves down the frequency band in 0.05MHz steps.
   Short press in the Menu: Moves through the Menu options.
   Short press in Preset Store or Recall: Moves through the presets (1-10)
   Long press in FM mode: Scans down the frequency band.
7. Next:
   Short press in DAB mode: Moves forward through the DAB station list.
   Short press in FM mode: Moves up the frequency band in 0.05MHz steps.
   Short press in the Menu: Moves through the Menu options
   Short press in Preset Store or Recall: Moves through the presets (1-10)
   Long press in FM mode: Scans up the frequency band.
8. Telescopic antenna: Fully extend the antenna before you scan for DAB or FM stations.
9. Power socket
10. 3.5mm Stereo Headphone socket
11. Battery option: Requires 4 x AA alkaline batteries (not supplied).
