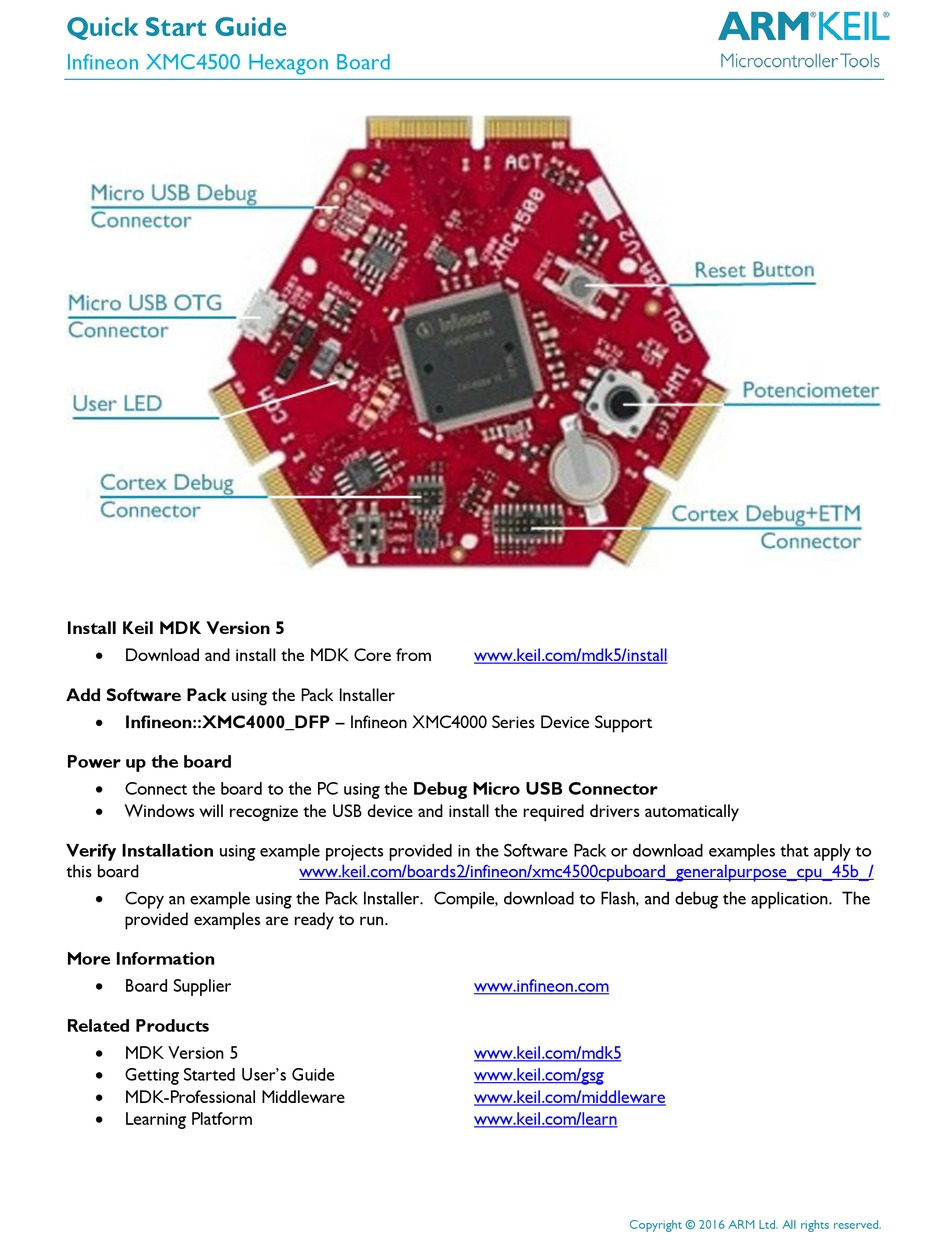

Quick Start Guide

Infineon XMC4500 Hexagon Board

Install Keil MDK Version 5



Download and install the MDK Core from



Infineon::XMC4000_DFP – Infineon XMC4000 Series Device Support



Connect the board to the PC using the Debug Micro USB Connector



Windows will recognize the USB device and install the required drivers automatically

Verify Installation using example projects provided in the Software Pack or download examples that apply to

this board



Copy an example using the Pack Installer. Compile, download to Flash, and debug the application. The

provided examples are ready to run.

More Information



Board Supplier

Do you have a question about the KEIL Infineon XMC4500 Hexagon Board and is the answer not in the manual?

Page 1 More Information  Board Supplier www.infineon.com Related Products  MDK Version 5 www.keil.com/mdk5  Getting Started User’s Guide www.keil.com/gsg  MDK-Professional Middleware www.keil.com/middleware  Learning Platform www.keil.com/learn Copyright © 2016 ARM Ltd. All rights reserved.
Page 2 Core Clock speed to correspond to the CPU Core Clock. Set Trace Port to Serial Wire Output – UART/NRZ. Ensure to set the SWO Clock speed to maximum 1.000000 MHz. Copyright © 2016 ARM Ltd. All rights reserved.
Page 3 Go to www.keil.com/mdk5/ulink/ulinkpro. Choose ULINKpro User’s Guide in the Quick Links and continue with chapter Configure Cortex-M Devices for Tracing. Select the section that applies to the device used in the project target and continue with the topic Enable 4-Pin Trace (ETM). Copyright © 2016 ARM Ltd. All rights reserved.
