71021-T2 Installation Guide

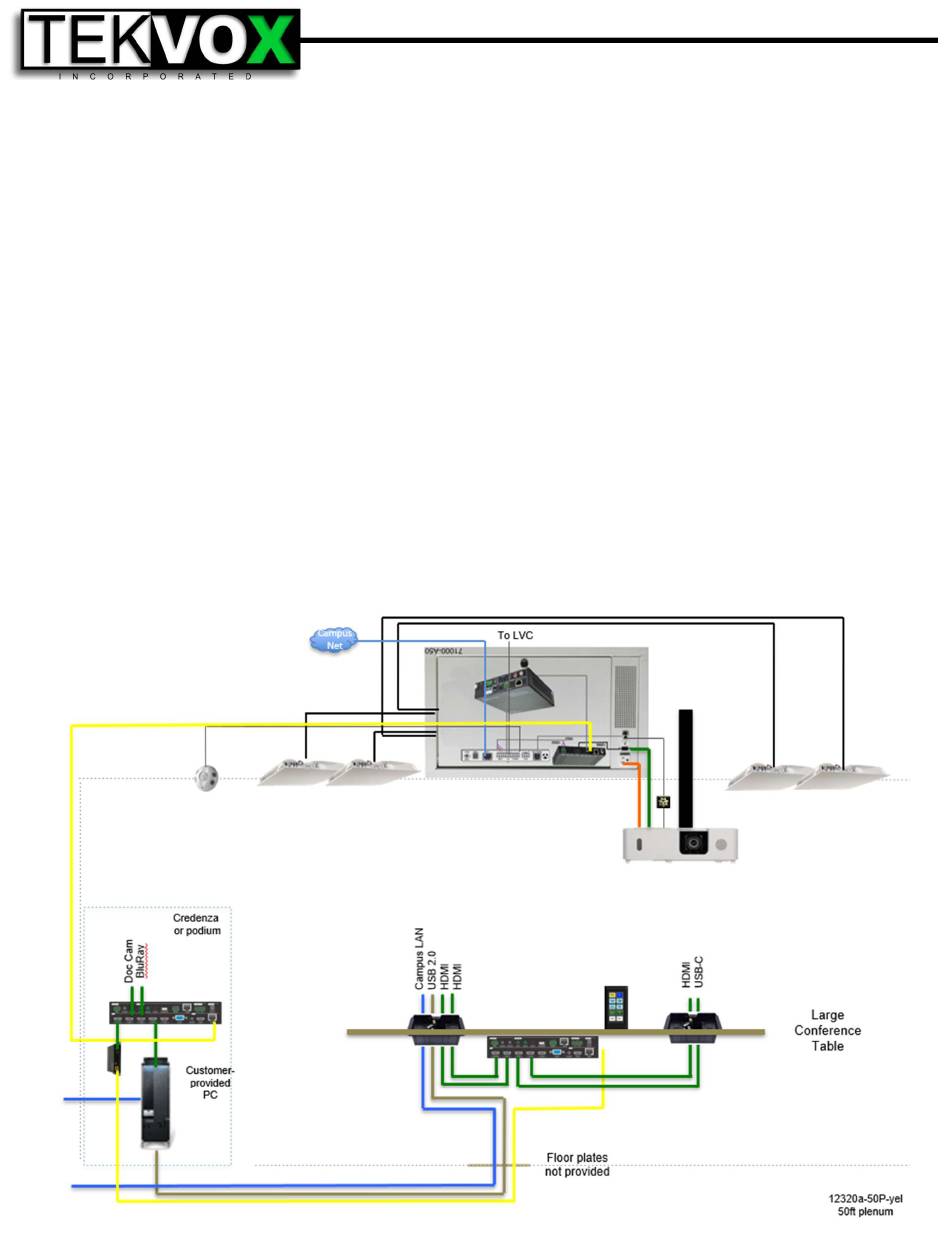

System Description
The 71021-T2 Drop-In A/V® system is a complete mediated conference room solution with remote
monitoring and control. The 71021-T2 is optimized for conference rooms with drop ceilings, a
presenter/facilitator podium, and a video projector. The 71021-T2 is built around an integrated ceiling
control unit and a pair of highly integrated seamless presentation switchers. The ceiling-mounted
equipment contains an HDBase-T receiver with audio de-embedder, a TEK 3 A/V controller, and an
audio amplifier installed, cabled and tested into a 78038 plenum-rated ceiling box. A single premium
Cat 6A shielded plenum-rated cable connects the ceiling unit to the presentation switcher. The supplied
cable is certified to exceed HDBase-T standards and is individually serialized. It is essential to follow
approved installation techniques maintain the extended warranty covering these products.
The 1201-N+ presentation switcher has 5 HDMI, and 1 VGA inputs with mirrored HDMI & HDBaseT
outputs. Control information is carried across the HDBaseT cable between the switcher and the
TekMonitor in the ceiling unit. The pre-programmed TekTouchPad provides simple and consistent room
control. All essential cabling for expeditious and consistent installation is included.
Advertisement
Table of Contents
Summary of Contents for TEKVO 71021-T2
- Page 1 71021-T2 Installation Guide System Description The 71021-T2 Drop-In A/V® system is a complete mediated conference room solution with remote monitoring and control. The 71021-T2 is optimized for conference rooms with drop ceilings, a presenter/facilitator podium, and a video projector. The 71021-T2 is built around an integrated ceiling control unit and a pair of highly integrated seamless presentation switchers.
- Page 2 Preparation The speaker cables provided with the 71021-T2 come in a standard length of 25 ft each. Locate the ceiling box in a center position in the room that will allow the speakers to be spread evenly and of equal distance from each other in the room.
- Page 3 Conference Table – Cable Housings, Switcher & TekTouchPad TSC7 Cable Housings Locate two positions, one at each end, within comfortable reach from all seated positions at the conference table. Using the included cutout template, cut holes for mounting the cable housing. Insert the cable housings into the table and attach the included mounting flanges into the highest accessible slot on each end of the underside.
