QUICK START

INSTALLATION

The pickup should be fitted in the bridge hole under
the higher strings with the cork facing upwards.
The upper side of the cork must be filed so that it
matches the top of the bridge hole exactly.
Once installed, is the pickup is too loose in position,
it might get a low output signal, while if it is installe
dtoo tightly, the sound might result boomy or
distorted.
Please refer to the USER GUIDE for all the details.

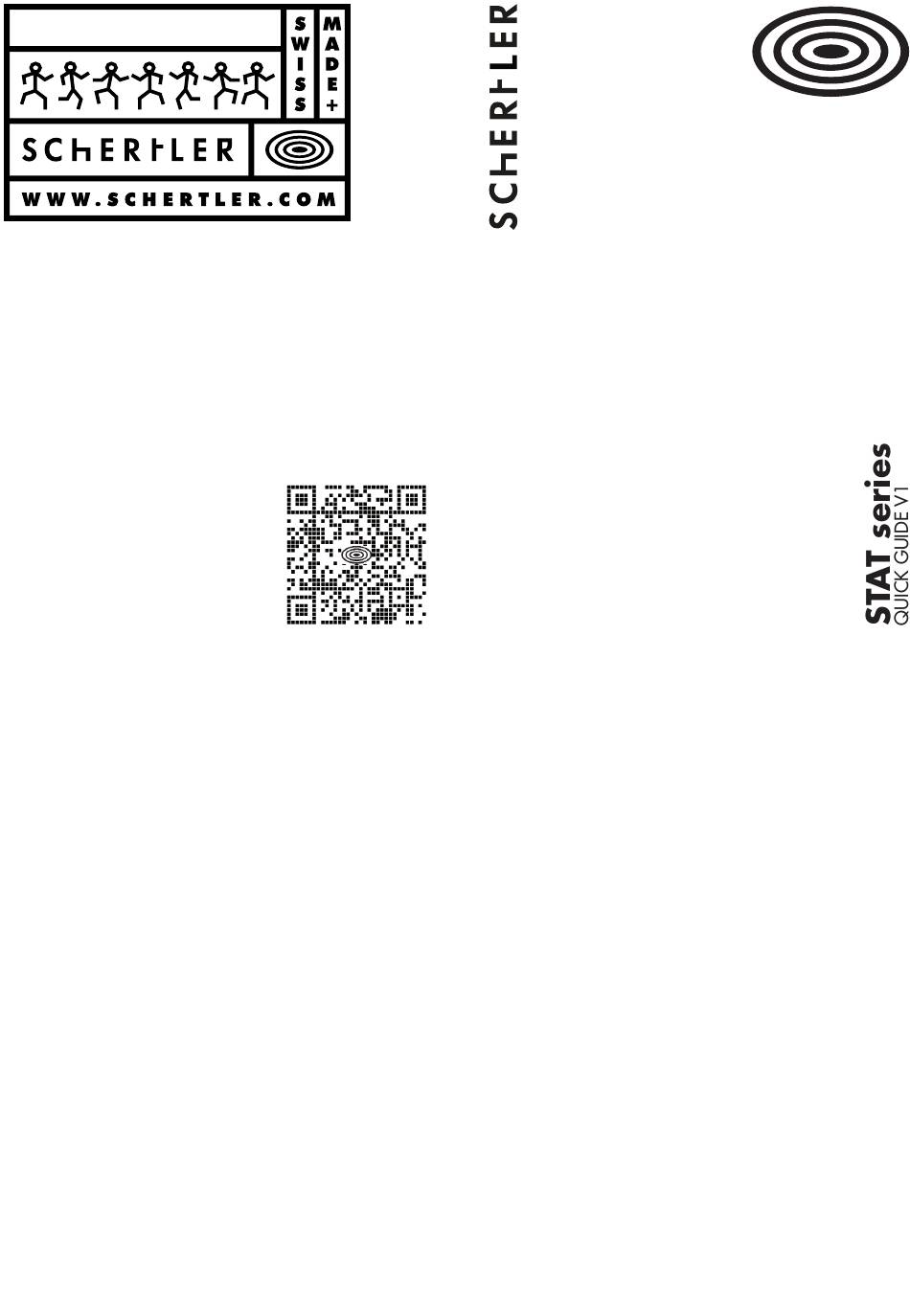

Scan the QR code
to open
the USER GUIDE
THANK YOU
FOR
CHOOSING
SCHERTLER

CONNECTION

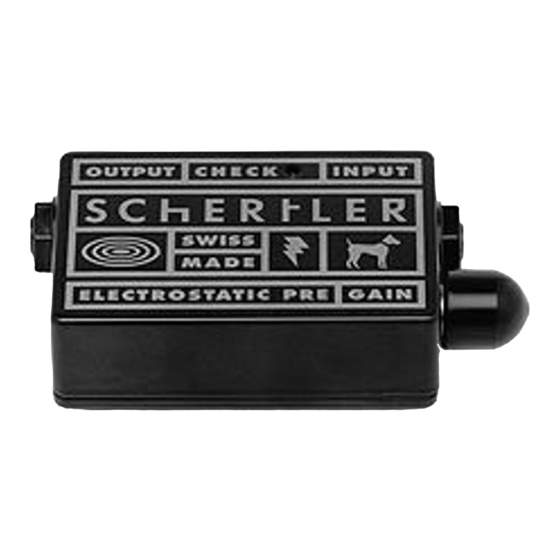

Connect the STAT pickup to an instrument channel
of a preamp, amp or mixer.
The pickup requires 10V to work so remember to
eventually provide it (this is done automatically on
the STAT PRE, but must be activated on YELLOW
preamps, any SCHERTLER acoustic amp or mixer).
USER GUIDE available at www.schertler.com
