RuiDa Technology Co., Ltd

Addr:

2th

floor,Technology

Avenue,Nanshan

Province,P.R.China

Tel:

0755--26066687

Fax:

0755--26982287

E-mail:

sales@rd-acs.com

Web:

www.rd-acs.com

SHENZHEN RUIDA TECHNOLOGY

RD-WIFI Wireless Networking Instruction

Read this manual before operation



The content includes electric connections and operation steps



Read the manual to operate the systems

Wireless Network Instruction

Building,NO.,1057

District,Shenzhen

city,Guangdong

RD-WIFI

Nanhai

Table of Contents

Need help?

Do you have a question about the RD-WIFI and is the answer not in the manual?

Questions and answers

Summary of Contents for Ruida Technology RD-WIFI

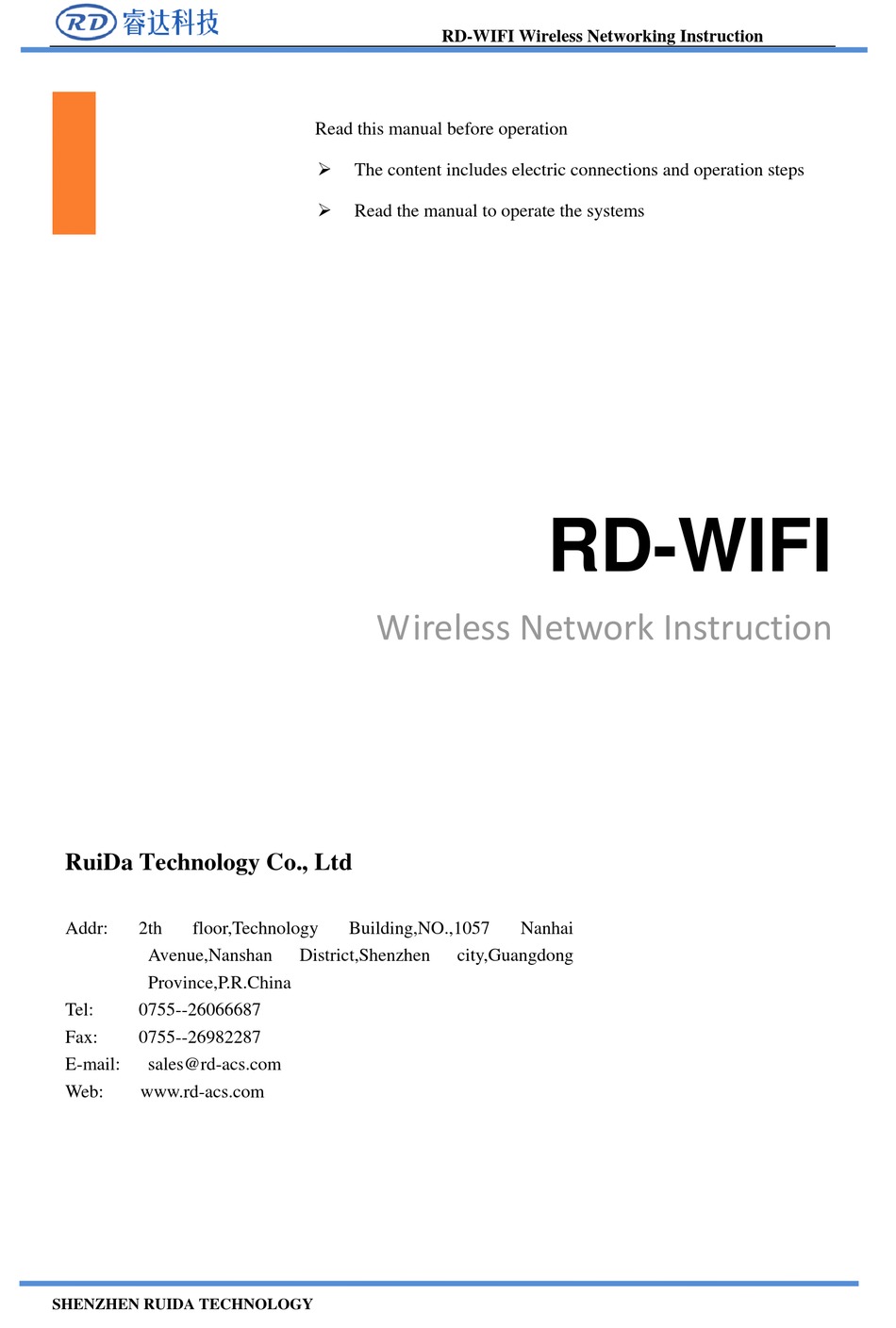

Page 1 RD-WIFI Wireless Networking Instruction Read this manual before operation  The content includes electric connections and operation steps  Read the manual to operate the systems RD-WIFI Wireless Network Instruction RuiDa Technology Co., Ltd Addr: floor,Technology Building,NO.,1057 Nanhai Avenue,Nanshan District,Shenzhen city,Guangdong Province,P.R.China...
Page 2 RD-WIFI Wireless Networking Instruction COPYRIGHT All rights reserved.You may not reproduce, transmit, store in a retrieval system or adapt thispublication, in any form or by any means, without the prior written permissionof RuiDa, except as allowed under applicable copyright laws. We have identifiedwords that we consider as trademarks.
Page 3 RD-WIFI Wireless Networking Instruction CERTIFICATION DECLARATION The product has been certified by the CE (Commutate European) safety certification. It has passed the corresponding conformity assessment procedure and the manufacturer's declaration of conformity, in accordance with the relevant EU directive. ROHS This product has been certified by EU legislation (Restriction of Hazardous Substances) Safety certification;...
Page 4 RD-WIFI Wireless Networking Instruction SAFETY INFORMATION When using this system, please make sure the operation is correct and the usage is safe. Some signs or text will be used to remind you to pay attention to the dangerous matters and some important information.
Page 5 If any missing parts or damaged parts are found, please contact ruida technology immediately.Do not install or debug the equipment if any obvious damage is found.
Page 6: Table Of Contents
Section 2 N ..........7 ETWORK CONNECTIONS VIA EXTERNAL WIRELESS ROUTER 2.1 Multiple machines + One PC ......................8 2.2 Configured RD-WIFI terminal ......................8 Section 3 M ..................11 AIN BOARD NETWORK SETTING 3.1 Networking without external wireless router ................... 11 3.2 Networking by external wireless router ..................
Page 7: Section 1 Network Connections Via Wireless Card Or Wifi On Laptop
RD-WIFI Wireless Networking Instruction Section 1 Network connections via Wireless Network Card or WIFI on laptop CONTENTS: One machine + One PC One machine + Multiple PC Multiple machines + One PC Configuration SHENZHEN RUIDA TECHNOLOGY...
Page 8: One Machine + One Pc
Figure-1 One desk-top computer wireless connection diagram (Configured WIFI network card with USB interface) Based on above structure, configured with RuiDa motion controller and RD-WIFI smart terminal devices, and the desk-top computer with wireless card, the wireless control can be achieved between computer and machine.
Page 9: One Machine + Multiple Pc
RD-WIFI Wireless Networking Instruction 1.2 One machine + Multiple PC For this mode, multiple PC can send process tasks to machine, see below figure-3. Figure-3 Multiple PCs share one machine Notes: This operating mode is different from sharing printer, due to the machine cannot do process task queue, so when multiple PC shared the machine, the previous task must be finished, otherwise it will be failed.
Page 10: Configuration
RD-WIFI Wireless Networking Instruction 1.4 Configuration (1) Configured RD-WIFI Adjust the router to AP gear first. Set the local IP with router A or router B or router C in a network. SHENZHEN RUIDA TECHNOLOGY...
Page 11 RD-WIFI Wireless Networking Instruction Connecting the computer and router A or router B or router C, open website: 192.168.1.253, and then enter into setup interface. Input user name and password: User name: admin Password: admin Enter into the setup main interface, choose setup wizard, and see below Figure:...
Page 12 RD-WIFI Wireless Networking Instruction Click “next”, enter into below interface, and choose AP. Click “next”, enter into below interface: Modify SSID to legible name, showed in your wireless network. Such as: set “Network1” or “Network2” or “Network3” (Note: Each independent wireless terminal will be assigned a unique name when leave factory) If users need to set the connection password, the “wireless security option”...
Page 13 (2) Configured desk-top or laptop Choose the WIFI name “Network1” or “Network2” or “Network3”, wireless connection showed “connected”, which means the computer and RD-WIFI smart module connected successfully, so user can use software through the host computer. SHENZHEN RUIDA TECHNOLOGY...
Page 14: Section 2 Network Connections Via External Wireless Router
RD-WIFI Wireless Networking Instruction Section 2 Network connections via external wireless router CONTENTS: Multiple machines + One PC Configured RD-WIFI terminal SHENZHEN RUIDA TECHNOLOGY...
Page 15: Multiple Machines + One Pc
RD-WIFI Wireless Networking Instruction 2.1 Multiple machines + One PC Multiple machines with desk-top or laptop. The connection method can be cable or wireless. In this mode, user has to prepare wireless router. 2.2 Configured RD-WIFI terminal Adjust the router to AP gear first.
Page 16 RD-WIFI Wireless Networking Instruction Connecting the computer and router A or router B or router C, input website: 192.168.1.253, fill in user name and password: User name: admin Password: admin Interface will be popped-up as bellow, click setup wizard, choose “Client” mode.
Page 17 RD-WIFI Wireless Networking Instruction Click “next”. Choose “scan”, configured target router “MMM”. Choose the use configured router name in the wireless list. Here take “machine control AP” as example: SHENZHEN RUIDA TECHNOLOGY...
Page 18 RD-WIFI Wireless Networking Instruction Click “connect” Click “Next” Client side is set successfully and Click “reboot”. Last step, Set the local IP with router “MMM” in a network.(because some router DHCP IP address not in 192.168.1.xx) SHENZHEN RUIDA TECHNOLOGY...
Page 19 RD-WIFI Wireless Networking Instruction SHENZHEN RUIDA TECHNOLOGY...
Page 20: Section3 Main Board Network Setting
RD-WIFI Wireless Networking Instruction Section3 Main board network setting CONTENTS: Network without external wireless router Network by external wireless router 3.1 Network without external wireless router In this mode, computer configured wireless network or module with wireless function. The wireless module IP address of host computer should be the same field to controller IP address.
Page 21: Networking By External Wireless Router
RD-WIFI Wireless Networking Instruction When visiting different machines, the computer should choose different wireless network name. 3.2 Network by external wireless router If network by external wireless router, it is necessary to set different IP address for each connected machine.
Page 22 RD-WIFI Wireless Networking Instruction  After finished, different operations for each machine according to different IP address in machine control operation. SHENZHEN RUIDA TECHNOLOGY...
Page 23 RD-WIFI Wireless Networking Instruction Thank you for your selection of our production! All the copyright of this manual is owned by Ruida technology. Any person or company can not copy upload and send the manual without Ruida’s permission. Content will be revised or modified. We will not send message to every users.
Page 24 SHENZHEN RUIDA TECHNOLOGY...
