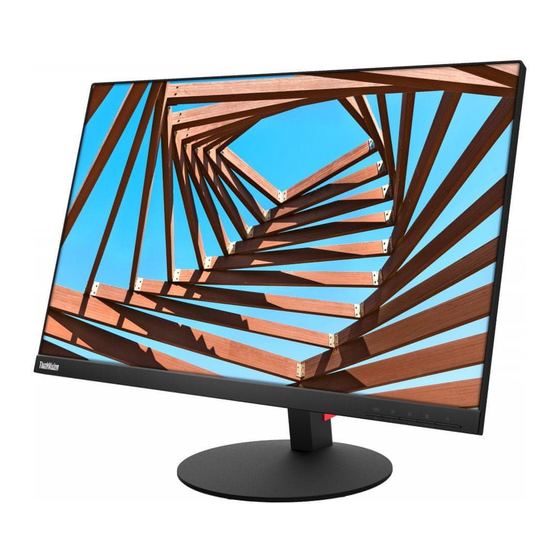

- Page 1 T25D-10 Simplified service manual for dismantling Model Name: Lenovo T25D-10...
-
Page 2: Exploded Diagram
Exploded Diagram... - Page 3 1. Precaution Please read the precaution as follows to prevent any damages to the LCD Monitor. Make sure all power connector is removed. Be sure that the LCD Monitor is in power off status. Prepare soft cloth and sponge as working platform to place LCD monitor horizontally.
- Page 4 2. Appropriate tools Select the Appropriate tools for disassembly and re-assembly. Phillips screwdriver (#2) spacer screwdriver C/D disassembly tool Gloves or soft cloth...
- Page 5 3. Disassembly SOP Step Figure...
- Page 6 Press the button at the bottom of the Stand and pull out the Stand and Base by hand. 1.Use the Screwdriver to remove the Screws. 2.Pull the middle frame out by hand. 3.Open the latches by Scraper and remove the Keyboard to separate from rear cover by...
- Page 7 1.Remove the Screws by the Screwdriver to separate the Middle frame and Panel. 2. Tear out all Tapes by hand. 3. Remove the screws by screwdriver disconnect the connectors to separate the MAINFRAME And PANEL by hand.
-
Page 8: Main Board
Remove mylar and Remove the screws by screwdriver to remove the MAIN BOARD by hand. Tear out all Tapes by hand to separate the Main board and power board.
