MANUAL
S1
Version 7 (03.2022. EN)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for System Cleaners S1

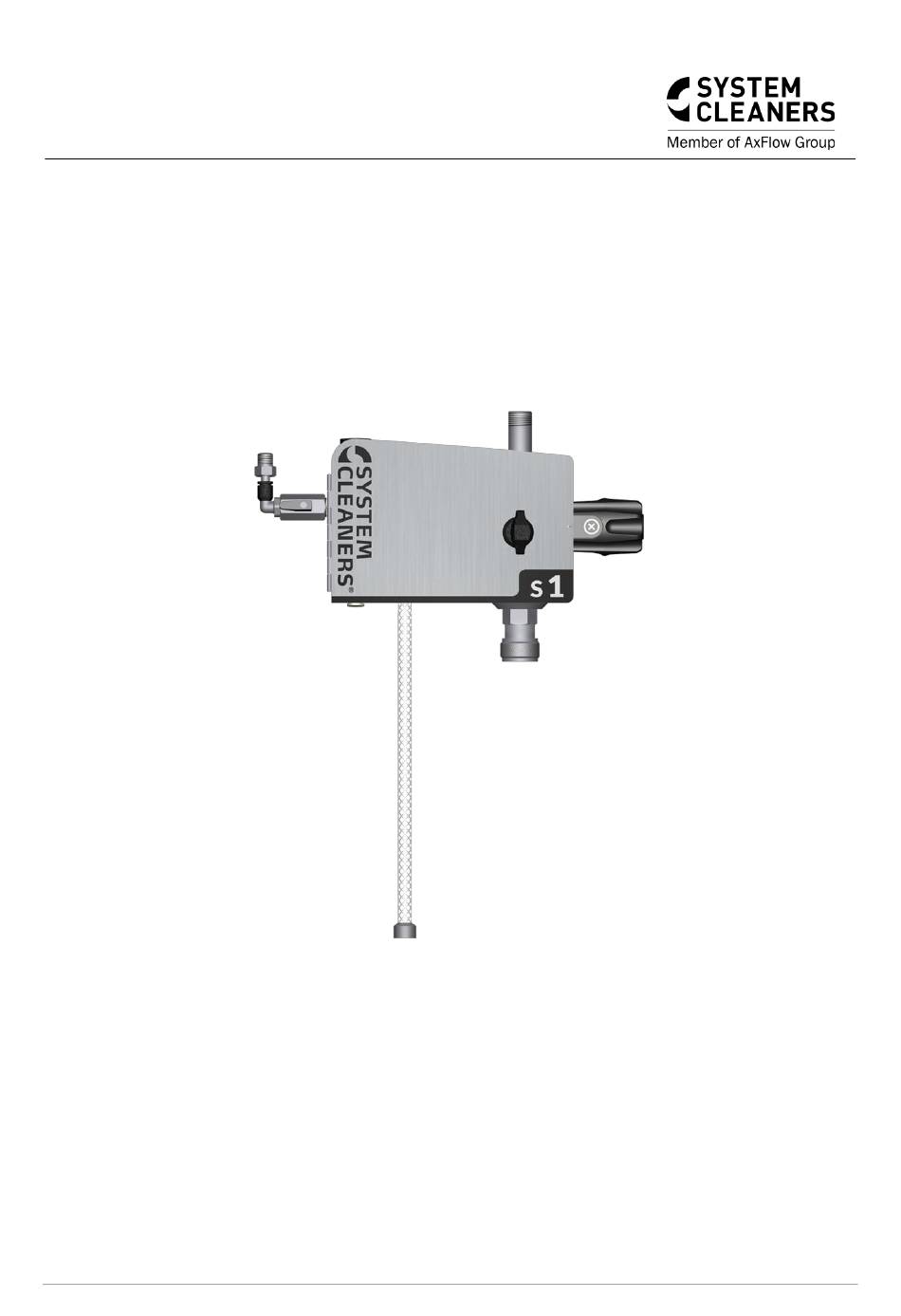

  • Page 1 MANUAL Version 7 (03.2022. EN)

  • Page 2: Warranty

    System Cleaners A/S cannot be held liable for consequential damage resulting from improper use of the equipment. Proper use includes the following: •...

  • Page 3: Declaration Of Conformity

    Declaration of conformity We declare that this product is in conformity with the following directives: 2006/42/EC Directive on Machinery Brian Lund Jensen Solution and Development Manager Version 7 (03.2022. EN) (S1) Page 3 of 28...
  • Page 4 Using a satellite it is possible for one operator to rinse, foam or disinfect (depending on model). Pos. Description Inlet water Air unit Non-return valve Air regulator Dosing valve chemical Suction tube chemical Outlet Function selector Strainer Version 7 (03.2022. EN) (S1) Page 4 of 28...

  • Page 5: Installation

    In order to facilitate maintenance of the equipment, it is recommended to fit a shut-off valve in the pipelines immediately at the connections for water. Pipe supports Always use pipe supports designed for the pipe size and material and maximum working pressure and temperature. Version 7 (03.2022. EN) (S1) Page 5 of 28...
  • Page 6 Version 7 (03.2022. EN) (S1) Page 6 of 28...

  • Page 7: Operation

    When the low-pressure gun or valve is opened, the water jet will result in a certain amount of counter-pressure. Therefore make sure that you hold the handle firmly and have a firm foothold. System Cleaners low-pressure systems may only be used in conjunction with soaps and chemicals that are approved for cleaning within the food or transport industries.

  • Page 8: Maintenance

    In the event that the system is used with non-approved soaps, chemicals or solvents, System Cleaners A/S disclaims all liability. If in doubt, please contact your soap or chemical supplier and read the supplier manual. In the event that you use the system with chemicals that require mandatory labelling, or if the water temperature exceeds 50°C, a low-pressure gun with an automatic closing device must be used.
  • Page 9 Depending on the water quality it may be necessary to de-scale the water side of the injector on a regular basis following the chemical supplier’s guidelines. Number Description Material 97-100342 Allen key 6mm Steel Version 7 (03.2022. EN) (S1) Page 9 of 28...

  • Page 10: Troubleshooting

    Water pressure is too low Make sure that the water supply is as described in the technical specifications Air pressure too low Increase air pressure Non-original foam nozzle fitted Replace with original white foam nozzle Version 7 (03.2022. EN) (S1) Page 10 of 28...

  • Page 11: Spare Parts

    SPARE PARTS S1 F (air) 3-10 bar Version 7 (03.2022. EN) (S1) Page 11 of 28...
  • Page 12 Outlet valve housing AISI 303 30-000053 Coupling, outlet 1/2" SS AISI 303 173-000010 O-ring 8x1 for hose EPDM 20-400056 Dosing valve concentrated S1 AISI 316/Viton 15-300012 Hose clip for 1/4" 04-000081 Diaphragm nipple EPDM 27-300040 Suction filter ø6,5 AISI 316...
  • Page 13 S1 F (no air) 3-10 bar Version 7 (03.2022. EN) (S1) Page 13 of 28...
  • Page 14 30-000053 Coupling, outlet 1/2" SS AISI 303 173-000010 O-ring 8x1 for hose EPDM 16-501804 Plug 1/8" Nickel-plated brass 20-400056 Dosing valve concentrated S1 AISI 316/Viton 15-300012 Hose clip for 1/4" 04-000081 Diaphragm nipple EPDM 27-300040 Suction filter ø6,5 AISI 316...
  • Page 15 S1 PF 3-10 bar 3-10 bar Version 7 (03.2022. EN) (S1) Page 15 of 28...
  • Page 16 Coach screw M6x80mm 04-000177 Spacer ø6/ø25x35 black PVC-U 08-900008 Rawlplugs S 8 20-001001 Valve block PF 10.1 20-001011 Valve housing S1 PF AISI 316 10.2 20-001020 Seal backing 01 AISI 303 10.3 20-001050 Ball seal PTFE with 25% carbon fiber 10.4...
  • Page 17 S1 F (trolley with cabinet) 3-10 bar Version 7 (03.2022. EN) (S1) Page 17 of 28...
  • Page 18 Female coupling 1/2", internal AISI 303 30-000070 Insert 1/2" external thread 16-2-XH 15-600070 Elbow 1/2" 90° I/I AISI 316 48-100082 Trolley for S1 with Cabinet 16-600070 Pin, hair cotter SS AISI 316 48-100079 Partition for cannister holder 49-000013 Wheel ø200x50mm Rubber/Plastic 49-300040 Wheel bolt ø15...
  • Page 19 S1 F no air (trolley without cabinet) 3-10 bar Version 7 (03.2022. EN) (S1) Page 19 of 28...
  • Page 20 Number Description Material Version 48-100082 Trolley for S1 with Cabinet 20-001000 Valve block 20-001010 Valve housing AISI 316 20-001020 Seal backing 01 AISI 303 20-001050 Ball seal PTFE with 25% carbon fiber 20-001040 Seal backing 03 AISI 303 20-001030 Seal backing 02...
  • Page 21 S1 F (option 3 suction tubes) Number Description Material Version 46-500310 Housing S1 AISI 304 15-601192 Chemical elbow AISI 316 17-020065 O-ring 14x2 70 sh EPDM 30-000080 Coupling for suction hose 3/8", EPDM EPDM 30-000081 Coupling for suction hose 3/8", Viton...

  • Page 22: Recommended Spare Parts

    RECOMMENDED SPARE PARTS Number Description Material 20-200025 Non-return valve air 1/4" 20-200170 Non-return valve DN 10 Plastic/EPDM 20-400056 Dosing valve concentrated S1 AISI 316/Viton 30-000084 Kit coupling 30-00080 EPDM 30-000085 Kit coupling 30-00081 Viton 17-030054 O-ring 9x2 Viton 75 sh...
  • Page 23 TECHNICAL SPECIFICATIONS WALL Version 7 (03.2022. EN) (S1) Page 23 of 28...
  • Page 24 TECHNICAL SPECIFICATIONS TROLLEY WITHOUT CABINET Version 7 (03.2022. EN) (S1) Page 24 of 28...
  • Page 25 TECHNICAL SPECIFICATIONS TROLLEY WITH CABINET Version 7 (03.2022. EN) (S1) Page 25 of 28...
  • Page 26 3/4”, 10-15 m / 33-49 ft Water pressure 15-40 bar / 44-580 psi 1/2”, 10-35 m / 33-115 ft Dimensions Weight 5 kg / 11 lbs *depending on product, temperature, viscosity, density, and conditions for pressure. Version 7 (03.2022. EN) (S1) Page 26 of 28...
  • Page 27 The chemical limit nozzle must be screwed off the suction filter and another nozzle can be mounted instead. Version 7 (03.2022. EN) (S1) Page 27 of 28...
  • Page 28 System Cleaners A/S Halkjærvej 17 DK-9200 Aalborg SV Denmark Tel.: +45 96 34 04 04 info@systemcleaners.com www.systemcleaners.com Please note: We reserve the right to make alterations to the technical specifications without notice. Version 7 (03.2022. EN) (S1) Page 28 of 28...
