Summary of Contents for Sonos Amp
- Page 1 Guides...
- Page 2 Enhance your TV sound Connect Amp to your TV to create the ultimate entertainment system. Use Amp and a pair of 3rd-party speakers to create two front audio channels. Use Amp with third-party speakers to add surround sound if you already have a Sonos home theater speaker...
-
Page 3: Controls And Lights

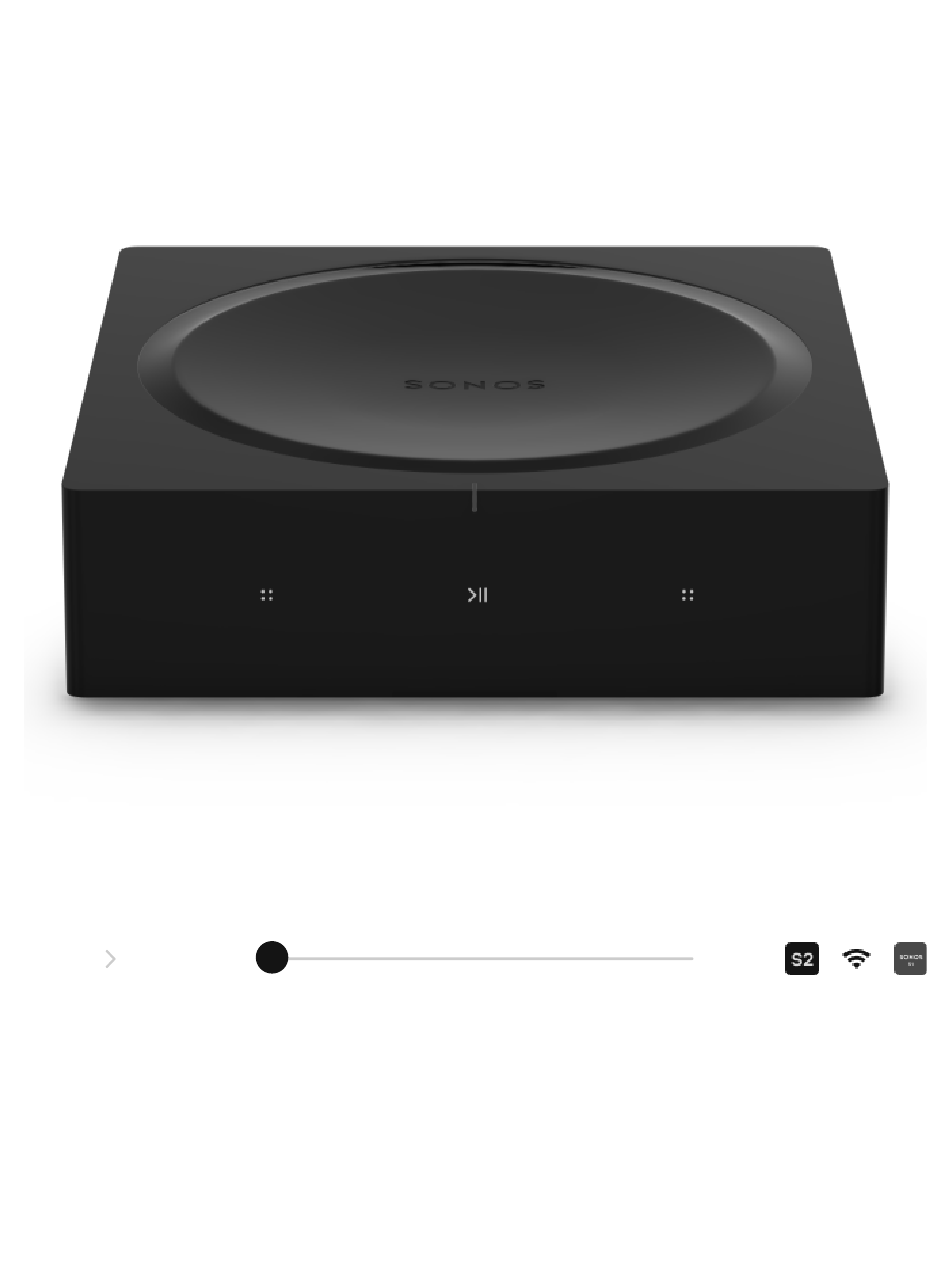

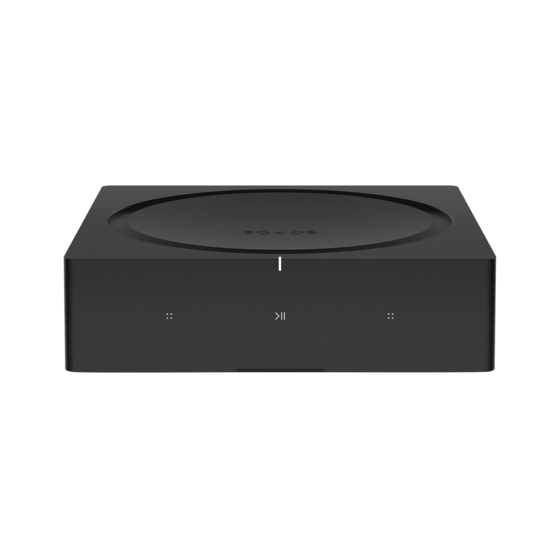

Controls and lights Displays the product's connection to WiFi, indicates when the volume Status light is muted, and signals errors. Learn more Volume up (right) Volume down (left) Volume control Touch and hold to quickly change the volume. Touch to play or pause sound. - Page 4 Swipe right across the touch controls to skip to the next song. Next/Previous Swipe left to go to the previous song. (Music only) Note: You can’t skip forward or go back when listening to a radio station.
-
Page 5: Connector Panel
Connector panel HDMI ARC Use an HDMI cable to connect Amp to your TV’s HDMI ARC port. Ethernet ports Use an Ethernet cable if you want to connect to a router, computer, or network-attached storage (NAS) device (optional). Join button Press to connect during setup. -
Page 6: Select A Location
Use high-quality speaker wire to connect your speakers to Amp. Select a location You can place Amp just about anywhere—in an electronics rack, on a shelf, or on a credenza with your TV. Rack mounted Amp mounts perfectly in any electronics rack. -
Page 7: Connect The Cables
200W for 4 ohm speakers. Do not connect speakers rated at less than 4 ohm. Amp can drive speakers with nominal impedance above 4 ohms. Two pairs of 8 ohm speakers wired in parallel are also supported. - Page 8 Insert the banana plug into the proper speaker terminal on the back of Amp. Repeat to install the other speaker wires. Connect the power cord and plug in Amp. If you're connecting Amp to your TV, use an HDMI cable to connect from Amp's 's HDMI port to your TV.
- Page 9 Line in Connect an audio device, like a projector, CD player, or turntable (with a built-in phono preamp), to any Sonos product that has a line-in port (Era 300, Era 100, Amp, Port, or Five). Then go to > Line-In to select the source and start playback.
-
Page 10: Specifications
Specifications Feature Description AUDIO Amplifier Class-D digital amplifier Amplifier power 125W/Ch into 8 ohms Speaker connections Banana plugs (2) Audio device with analog RCA output or optical output (optical adapter required). Line-in sources supported TV device with HDMI ARC or optical output (optical adapter required). - Page 11 802.11b/g/n or connect a Sonos product to your router. Dual Ethernet ports can connect Amp to a Ethernet ports wired home network and allow for connection of additional Sonos products.
- Page 12 104 F (0 to 40 ° ° ° ° Storage temperature to 122 F (-20 to 50 Product finish Black Sonos Amp, 2 banana plugs, AC power Package contents cord, and Quickstart Guide * Specifications subject to change without notice.
-
Page 13: Important Safety Information
12. This product does not have any user-serviceable parts. Do not open or disassemble or attempt to repair it or replace any components. Refer all servicing to Sonos qualified service personnel. Servicing is required when the apparatus has been damaged in any...
