- Page 1 Riser Recliner Chairs Instruction Manual...
-
Page 2: Introduction
Please keep this manual with the riser recliner chair, or in a safe place. Contact Drive DeVilbiss Healthcare Ltd. or check our website for the latest version of this document. If there is any information in this manual which you do not understand, or if you require additional assistance for setup or operation, please contact your retailer or Drive DeVilbiss Healthcare Ltd. -
Page 3: Table Of Contents
Contents Introduction ......................2 Product Information ....................4 Symbol Definitions ....................5 Before Assembly ....................6 Assembly Instructions ..................7 Handset ......................... 9 Safe Seating ......................10 Safety ........................... 11 Product Care ......................13 Disposal and Recycling ..................14 Troubleshooting ....................15 Fair Wear and T ear Policy ................... -

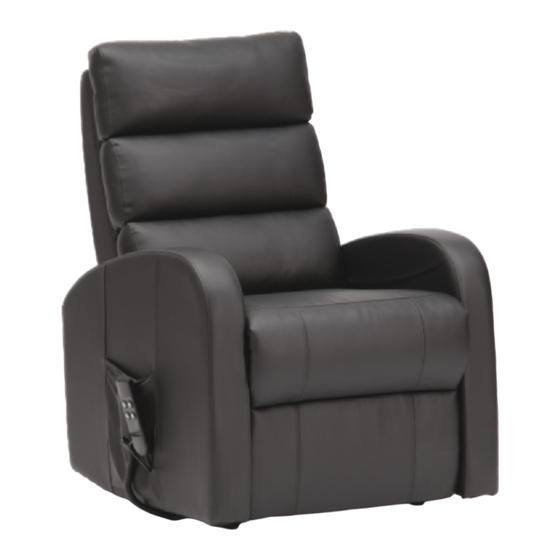

Page 4: Product Information
Product Information This manual is generic and incorporates all functionality available across the Riser Recliner Range. Not all functions are available on all models. Please contact your retailer to determine the model you have purchased and the functions specific to that model. Model Descriptions CLR30 The CLR30 Riser Recliner is a single motor model, controlled by a 2-button handset. -
Page 5: Symbol Definitions
Symbol Definitions Read and follow the information in the Instruction Manual. Please retain this Manual for future reference. Warning: Beware of a potential hazard. Maximum Weight Capacity For indoor use only. Class II Electrical Equipment. Dispose of all electrical components in line with local and national recycling policies. -
Page 6: Before Assembly
Before Assembly Please keep this Instruction Manual for future reference. • Ensure that there is a mains power socket close to where the chair will be positioned in the room. • Do not use any sharp objects to open plastic-wrapped components, as damage may be caused to the product or component. -
Page 7: Assembly Instructions
Assembly Instuctions LEG REST: Provides a rest for the user’s legs when raised and folds up neatly when the chair is in HANDSET: the upright and lift positions. Needed to operate the various functions of the Riser Recliner Chair Backrest Seat Handset Mains Lead... - Page 8 Assembly Instuctions Position the backrest so that its female brackets align with the male brackets on the seat, on both sides of the chair. Press down on the backrest so that it ‘clicks’ into position. Check that the backrest is secure on both sides of the chair. Locate the free end of the cable, underneath the chair (the other end is connected to the chair actuator).
-
Page 9: Handset
Handset General Operation (all models) To allow the chair to operate, the key jack must first be inserted into the safety lock. This is a safety precaution and the key jack should be removed when the handset is not in use to prevent accidental movement of the armchair. The power LED will illuminate when the chair is operating. -
Page 10: Safe Seating
Safe Seating SAFE SEATING POSITION The chair is a lifting device and it is important that you are positioned correctly in the chair when raising and lowering. If the correct body position in not maintained there is risk of injury or damage to the chair. The central position should be used when either the standing or sitting mode is operational. -
Page 11: Safety
Safety Please read and follow these safety guidelines to get the very best use from your chair. Please note that failure to follow these guidelines could result in injury or damage and invalidate the warranty. Always use this chair in accordance with this manual. - Page 12 Safety • Take care with electric, gas or open fires near to the chair and ensure cigarettes and matches are properly extinguished. • Take care to avoid sharp objects, such as buckles, metal fasteners, needles/pins, scissors, etc, coming into contact with the chair. If there is any information in this manual which you do not understand, or if you require additional assistance for setup or operation, then please cotnact your retailer.
-
Page 13: Product Care
Servicing should be completed by competent personnel such as a Drive DeVilbiss Healthcare Ltd dealer or a service contractor. Contact your Drive DeVilbiss retailer for a servicing schedule. Care Guidance for Fabric & PU Upholstered Chairs We recommend cleaning the fabric with a slightly moist cloth only, and not using cleaning agents. -
Page 14: Disposal And Recycling
Disposal and Recycling Disposal and Recycling When the riser recliner chair, the electrical system, or any associated packaging or accessories have come to the end of their useful life, follow local recycling and W.E.E.E (Waste Electrical and Electronic Equipment) policies for disposal. Your chair must be disposed of according to applicable local and national statutory regulations. -
Page 15: Troubleshooting
Troubleshooting Troubleshooting Where do I find the model number and serial number on my lift chair? The model number and serial number of the chair can be found on the product label, which is located on the metal frame, at the rear of the chair. Please note that these details must be provided in order for any replacement parts or service to provided. -
Page 16: Fair Wear And Tear Policy
Fair Wear and Tear Policy Your new chair is covered by a warranty (see further details below), please note that this does not include: • Damage caused by exceeding the maximum weight limit. • Damage caused by neglect or improper use (e.g. people sitting on the arms or elevated leg rest). -
Page 17: Warranty
In the event of your chair requiring attention, please contact your dealer/service agent and give all relevant details so they can act quickly. Please contact Drive DeVilbiss Healthcare Ltd for advice if you do not know where the chair was originally purchased from. -
Page 18: Specification
Specification Chair dimensions Seat dimensions Model Depth Width Height Depth Width Height CLR30 88cm 72cm 103cm 48cm 54cm 72cm Single (34½”) (28½”) (40½”) (19”) (21¼”) (28½”) Motor CLR31 88cm 72cm 103cm 48cm 54cm 72cm Single (34½”) (28½”) (40½”) (19”) (21¼”) (28½”) Motor CLR32... - Page 19 Blank Page Page 19...
- Page 20 BT36 4TY, Northern Ireland Tel: +44 (0) 845 0600 333 Email: info@drivedevilbiss.co.uk Drive DeVilbiss Healthcare Ltd. provide these instructions for use. Note: Images contained in this manual are for illustration and parts identification purposes only and may not reflect the actual product supplied.
