Summary of Contents for Eco A120

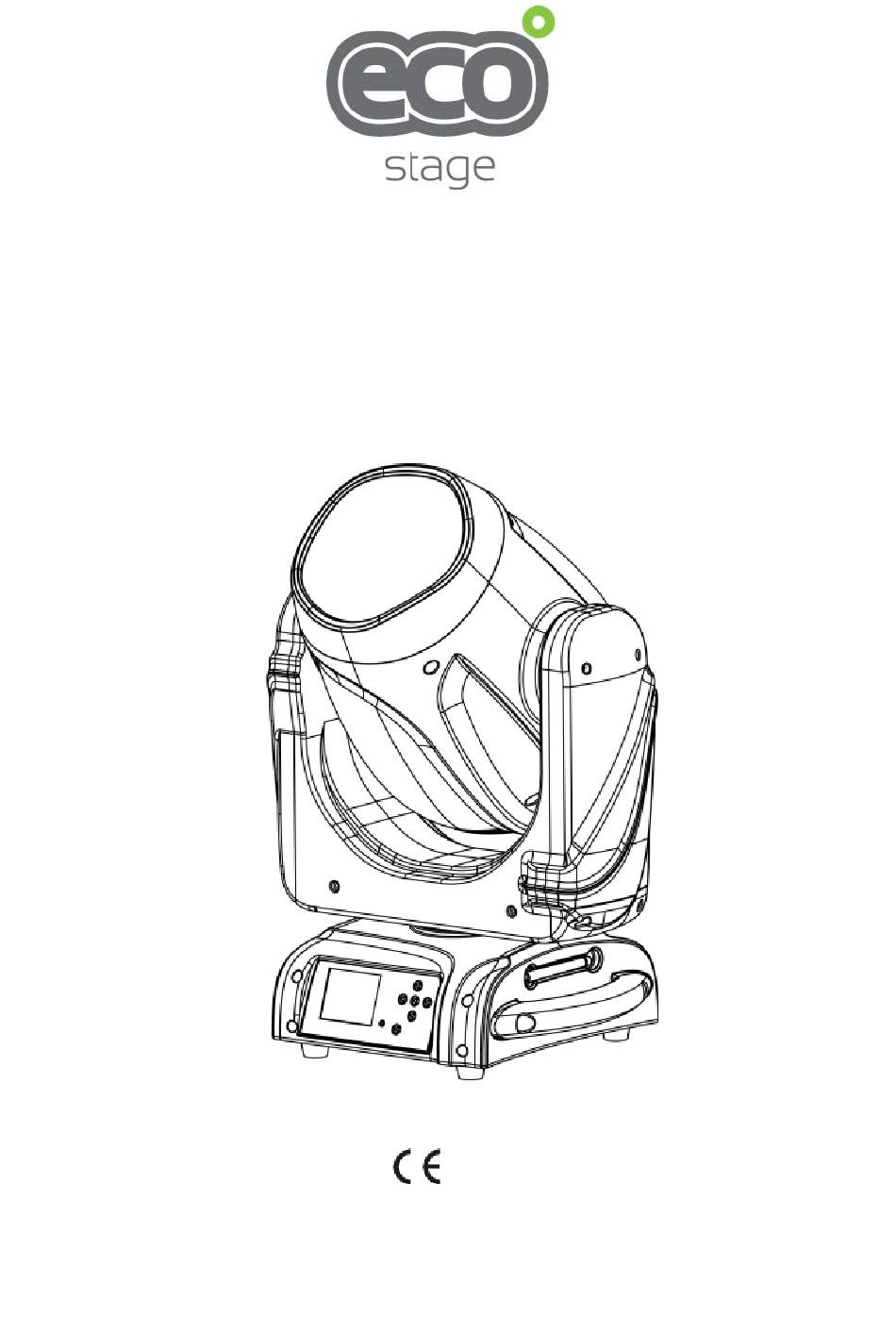

  • Page 1 A120 LED BEAM HEAD USERS GUIDE...

  • Page 2: Product Introduction

    1. Product Introduction: 1.1 Before unpacking the fixture, pls make sure that the packing is in good condition, following items will be found in the box: -The fixture -These users guide -3m DMX cable -1.5m power cable with powercon -Omega bracket for hanging installation -Safety chain 1.2 Specification Source...
  • Page 3 1. Project lens 2. Head 3. Arm 4. Base 5. Display 6. Foot stand 7. Operation button 8. Handle 9. Mic 10. Left button. 11. Battery indicator 12. Down button 13. Enter button. 14. Up button 15. Right button 16. 3-pin DMX in 17.
  • Page 4 1.4 Colors and Gobos Open Blue Green Orange Cyan Magenta Cool White Warm White Pink Purple red Lime Bright yellow Dark yellow Dark blue...

  • Page 5: Safety And Maintenance Information

    Static gobo wheel 2. Safety and maintenance Information 2.1 Safety Info Before operate this unit, please carefully read this users guide and keep if needed in future. It’s necessary to respect following rules. The disposal of the device after lifecycle could damage the environment, need to take it to special company for recycling or return to authorized dealer.

  • Page 6: Troubleshooting

    The lens, shield need to be replaced when obviously broken, never use the device when the shield is not completed closed. Safety I class device, need to be earth connected. When the fixture is hanged overhead, the safety rope must be fixed to the bottom of the device to the appropriate fixing point.

  • Page 7: Installation

    3. Installation 3.1 The device could be either put on a solid and even urface, or mounted upside down or sideways like left picture. 3.2 The mounting place must be sufficient stable and be able to support a weight of 10 times of the unit’s weight.
  • Page 8 CONTROL DMX/W-DMX/sACN/ARTNET PROTOCOL DMX MODE STANDARD/EXTENDED WDMX ON/OFF ON/OFF WDMX MODE TRANSMITTER/RECEIVER TX LINK ON/OFF WIRELESS TX UNLINK ON/OFF RX RESET ON/OFF DMX TO WDMX (TX) ON/OFF WDMX TO DMX (RX) ON/OFF IP ADDRESS ARTNET SETTINGS SUBNET UNIVERSE ETHERNET IP ADDRESS SETTING UNIVERSE sACN SETTINGS...
  • Page 9 TOTEM MODE OFF/UP/DOWN BACKLIGHT ON/10S/20S/30S FLIP DISPLAY ON/OFF/AUTO SCREEN STATUS LED ON/OFF KEY LOCK ON/OFF ( ONLY TOTAL READ) FIXTURE HOURS (READ AND PARTIAL RESET) ( ONLY TOTAL READ) CURRENT HOURS (READ AND PARTIAL RESET) FIXTURE TIME ( ONLY TOTAL READ) LED HOURS (READ AND...
  • Page 10 CONTROL BASIC RELOAD ON/OFF PROGRAM RELOAD ON/OFF RELOAD DEFAULT Password FACTORY RELOAD ON/OFF TRANSFER SOFTWARE RDM PID CODE PASSWORD LOCKING xxxHOURS unlocking CODE PASSWORD ZOOM FOCUS FACTORY GOBO 1 FOCUS FOCUS … CALIBRATION GOBO 8 FOCUS FOCUS GOBO 1 INDEX INDEX …...
  • Page 11 5.1.4 Connection: use DMX cable with 3+5 pin XLR-plugs to connect the controller with the fixture or one fixture with another. 5.2 DMX chart Channel name function Pan Coarse Pan fine Pan Fine Tilt Tilt Coarse Tilt fine Tilt Fine XY speed fastest to Slowest Shutter closed...
  • Page 12 Dimmer Fine Dimmer(0->100%) Indexed Position 1 (Open) Position 2 Position 3 Position 4 Position 5 Position 6 Position 7 Position 8 Position 9 Position 10 Position 11 Position 12 Position 13 Position 14 Position 15 Position 16 Position 17 Position 18 Position 19 Position 20 Position 21...
  • Page 13 Position 16 to 18(Slow To Fast) Position 17 to 19(Slow To Fast) Position 18 to 20(Slow To Fast) Position 19 to 21(Slow To Fast) Position 20 to 22(Slow To Fast) Position 21 to 23(Slow To Fast) Position 22 to 24(Slow To Fast) Position 23 to 25(Slow To Fast) Position 24 to 26(Slow To Fast) Position 25 to 27(Slow To Fast)
  • Page 14 Gobo 12 (From Slow To Fast) Gobo 13 (From Slow To Fast) Gobo 14 (From Slow To Fast) Gobo 15 (From Slow To Fast) Gobo 16 (From Slow To Fast) Gobo 17 (From Slow To Fast) Gobo 18 (From Slow To Fast) Wheel Spin CW Fastest to Slow Stop...

  • Page 15: Unique Features

    No Signal Blackout Status Led On Status Led Off Reset All Reset Pan/Tilt Reset Color Reset Gobo Reset Other Reserved FACTORY DEFAULT OF CONTROL FUNCTIONS 6. Unique Features 6.1 RDM, stand for “Remote Device Management”, with this function, users can realize remote control of the device, such as remotely changing DMX address, reverse pan/tilt setting, check a lot of useful information such as temperature, power consumption, fan speed.

  • Page 16: Dimensions Drawing

    7. Dimensions Drawing 8. Technical specification Power supply 100-240 V AC, 50/60 Hz ~ Power consumption 172W 120w white led DMX channels 14/16 ch Beam angle 1° Luminous flux 2170lumen,150000lux@5m Fuse T 3.15 A, 250 V Device dimensions 332x309x480mm Net Weight 12.75KG...
