Red Stone 1304652 Manual

Page 1 (cover)

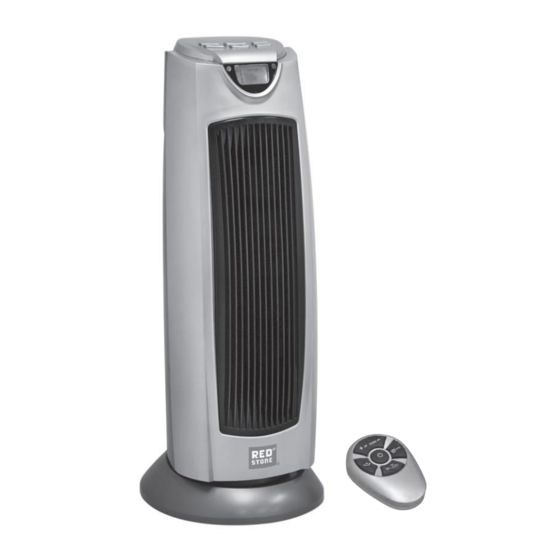

Oscillating
Ceramic Heater
with Thermostat
Features：
• Digital thermostat with ambient temperature setting
• Auto-off timer
• Four settings:
fan, low heat (750w), high heat (1500w),adjustable thermostat
• Stable base with safety tip-over switch
• Safety overheat cut-off protection
• Power indicator light, backlit LCD screen
• 90°oscillatio n

• Remote control

• Modern stylish two-tone design
• 120V A.C., 60Hz, 12.5A, 5120 BTU
Black border shows
page size and should
Page 3 (inside)
not print
WARNING:ELECTRICAL SHOCK HAZARD
Do not use with damaged cord or plug. Use with adequate
electrical system that is up to code.
The supply cord has a polarized plug. As a safety feature this
plug will fit in a polarized outlet only one way. To prevent
electric shock, match wide blade of plug to wide slot, fully
insert plug. lf the plug does not fit contact a qualified electri-
cian.
Do not operate any heater with a damaged cord or plug or
after heater malfunctions, has been dropped or damaged in
any manner. Do not operate heater with a broken heating
element or ceramic cone or any visual imperfections. For
repairs covered under warranty, see warranty statement. For
all other repairs contact Tractor Supply Co. by telephone for
information and assistance.
PET OWNERS NOTE:
The health of birds and some small pets are extremely sensi-
tive to the fumes given off during the initial use of many appli-
ances. Although these fumes are not harmful to humans, it is
recommended that this heater not be used around birds and
small pets during its initial use until the manufacturing corro-
sion coatings burn off.

USAGE:

HEATER OPERATION:

The heater/fan may be operated by the controls located on
the heater/fan (see Fig. 1) or by your remote control (see
Fig. 2).
1. Carefully remove the heater/fan from the plastic bag and
the carton.
2. Place the heater/fan on a firm level surface.
3. Plug the cord into a 120V electrical outlet. A beep sound
and a red light will come on indicating that there is power
to the unit. The heater/fan is ready to use. The red light
will remain on until the heater/fan is unplugged from the
electrical outlet.
4. Turn the heater/fan ON by pressing the POWER button
on the control panel (Fig.1). The unit will display the
current room temperature, automatically go into FAN
MODE and blow cool air.
5. Press the MODE' button once to enter the LOW HEAT
MODE.
6. Press the MODE' button a second time to enter the HIGH
HEAT MODE.
7. Press the MODE' button a third time to enter ADJUSTA
BLE HEAT MODE. In this mode the desired room
temperature can be set using the (+)TEMP and (-)TEMP
buttons.(See Fig.1)
8. To turn the heater/fan off, press the POWER button.
When the unit is powered off on the control
NOTE:
panel, the fan may continue to run for a while to cool off
the ceramic elements and dispense any retained heat.
The unit will shut off automatically.
SKU# 1304652
Save These Instructions
1

OSCILLATING FUNCTION:

The Oscillating function will work in any mode.
1. Press the OSC.' button to oscillate the heater/fan from left
to right at a 90° angle. The indicator symbol " " will display
on the LCD screen.
2. To turn the oscillation off, press the OSC.' button again.
Fig.1

TIMER FUNCTION:

The Timer function will work in any mode. The Timer func-
tion allows you to set the length of operation from 1 to 8
hours. Each time the 'TIMER' button is pressed the length of
operation will increase 1 hour. The duration time that is set
for will be displayed on the LCD screen in hour increments
TO TURN THE TIMER FUNCTION OFF: Press the 'TIM-
ER'button continuously until the LCD display has a blank
screen.
The timer function is not an excuse to leave the
NOTE:
heater/fan unattended.

THERMOSTAT INSTRUCTIONS:

1. Press the MODE button three times to enter ADJUSTABLE
HEAT MODE.
2. To set the desired room temperature, press the '(+)TEMP'
or'(-) TEMP' buttons until optimal temperature is
reached.
3. When the room temperature reaches 3 degrees above
the set temperature, the heater/fan automatically shuts
off.
4. When the room temperature drops 1 degree below the set
temperature, the heater/fan automatically turns on.
It is normal for the heater/fan unit to cycle ON and
NOTE:
OFF as it maintains the set temperature.

SAFETY FEATURES:

1. A thermal overload protector is built in to prevent overheat-
ing.
2. When an overheat temperature is reached, the Heater/fan
will automatically shut off. It will only resume operation
when the user resets the unit by unplugging the heater for
10 minutes to allow it to cool. Plug the heater in and
resume use.
REMOTE CONTROL:
1. Install two"AAA" batteries into remote control shown in
3
Fig2.
Page 2 (inside)
INTENDED USE:
This product is intended for indoor residential and office use
only, not for industrial or other commercial application. Use
only with electrical wiring that is in good working order and
that meets applicable codes and ordinances. This heater
must be plugged in to a 120V AC，15 Amp(or larger) circuit.
Do not plug anything additional into the same circuit. lf you
have any questions whether your wiring is adequate,consult
a qualified electrician. Risk of fire, overheating, malfunction,
property damage, injury or even death may result if not
adhered to.
Use your heater-fan only with a working smoke detector
located in the vicinity of your heater/fan.
While using your heater/fan, you should follow the IMPOR-
TANT INSTRUCTIONS listed below. As part of those
instructions, we have used the word"WARNING"to
indicate the level of hazard:WARNING indicates a hazard
which, if not avoided, could result in injury or death.

IMPORTANT INSTRUCTIONS:

When using electrical appliances, basic precautions should
always be followed to reduce the risk of fire, electric shock
and injury to persons, including the following:
Read all the instructions before using this heater/fan.
●
This heater/fan is hot when in use. To avoid burns, do not
●
let bare skin touch hot surfaces. Use provided handle
when moving this heater. Keep combustible materials,
such as furniture, pillows,bedding, papers, clothes and
curtains at least 3 feet (0.9 meters) from the front of the
heater-fan and keep them away from the sides and rear.
Do not use heater unattended. Use of extreme caution is
●
necessary when any heater is used by or near children
invalids, disabled persons or pets.
Do not operate the heater with a damaged power cord or
●
after the heater malfunctions, has been dropped or
damaged in any manner. Return heater to authorized
service facility for examination, electrical or mechanical
adjustment or repair.
Do not use heater outdoors.
●
Use your heater only in dry environments. This heater is
●
not intended for use in a bathroom, laundry area, or
similar locations, or near sinks, washing machines, swim-
ming pools or other sources of water. Never locate heater
where it may fall into a bathtub or other water container.
Do not use in damp environments such as flooded
basements.
Do not place the heater on a small, unlevel, uneven or any
●
surface which might allow heater to tip or fall.
For proper operation, heater should be placed on a
●
smooth, non-combustible surface. Do not place on rugs,
carpet, vinyl flooring or other plastic surfaces. Not for use
outdoors or in wet areas.
Black border shows
page size and should
Page 4 (back)
not print
2. All functions performed with remote control work
identically to the manual controls.
3. Remote control should be aimed at the digital display to
be received by the heater/fan.
Batteries not included.
NOTE:
Fig.2

MAINTENANCE:

WARNING:

ALWAYS UNPLUG THE CORD BEFORE
MOVING OR SERVING.DO NOT IMMERSE HEATER/FAN
IN WATER!

CLEANING:

IMPORTANT! DO NOT IMMERSE HEAT-
Clean the Heater/fan grill with the
ER/FAN IN WATER!
vacuum brush attachment on your vacuum cleaner. This will
remove lint and dirt from inside the heater/fan.
DO NOT
ATTEMPT TO TAKE APART THE HEATER/FAN. DO NOT
Clean the body of the
REMOVE THE HEATER/FAN GRILL.
Heater/fan with a soft cloth.
Do not use gasoline, benzene, paint thinner,
CAUTION:
harsh cleaners, etc. as they will damage the heater/fan.
NEVER USE ALCOHOL OR SOLVENTS.
Store the heater/fan with these instructions in
STORAGE:
the original carton in a cool, dry place.
ENVIRONMENT:
Do not dispose of electrical appliances as unsorted municipal
waste, use separate collection facilities. Contact your local
government for information regarding the collection systems
available.
If electrical appliances are disposed on landfills or dumps,
hazardous substances can leak into the groundwater and get
into the food chain, damaging your health and well-being.
When replacing old appliances with new ones, the retailer
may be legally obligated to take back your old appliance for
disposal free of charge.
WARNING:
Do not mix old and new batteries. Do not mix alkaline,
standard (carbon-zinc), or rechargeable (nickel-cadmium)
batteries.
Do not dispose of batteries in fire. Batteries may explode or
leak.
This heater is not designed as a primary heat source.
●
Always plug heaters directly into a wall outlet/receptacle.
●
Never use with an extension cord or relocatable power tap
(outlet/power strip). Always unplug heater when not in
use.
Do not run power cord under carpeting. Do not cover cord
●
with throw rugs, runners or similar coverings. Arrange cord
away from traffic area where it will not be tripped over.
To disconnect heater, turn controls off then remove plug
●
from outlet.
Do not insert or allow foreign objects to enter any
●
ventilation or exhaust opening as this may cause an
electric shock or fire or damage the heater.
To prevent a possible fire, do not block air intakes or
●
exhaust in any manner. Do not use on soft surfaces like a
bed, where openings may become blocked.
A heater has hot and arcing or sparking parts inside. Do
●
not use it in areas where gasoline, paint or flammable
liquids are used or stored.
Use this heater only as described in this manual. Any
●
other use not recommended by the manufacturer may
cause fire, electric shock or injury to persons or property.
SAVE THESE INSTRUCTIONS :
WARNING: SHOCK HAZARD
Use your heater only in dry environments. This heater is not
intended for use in a bathroom, laundry area, or similar
locations, or near sinks, washing machines, swimming
pools other sources of water. Never locate heater where it
may fall into a bathtub or other water container. Do not use
heater outdoors. Do not use in damp environments such as
flooded basements.
WARNING:HOT SURFACES
Do not touch body of heater when in use. This heater is hot
when in use, to avoid burns, do not let bare skin touch hot
surfaces. lf provided, use handles when moving this heater.
WARNING:FIRE HAZARD
Heater has hot and arcing or sparking parts inside. Do not
use near combustible materials or flammable gases or
sources of heat. DO NOT USE in areas where gasoline,
paint or flammable materials are used or stored. Keep com-
bustible materials such as furniture, pillows, bedding,
papers, clothes and curtains at least 3 feet (0.9 m) from the
front of the heater and keep them away from the sides and
rear. To prevent a possible fire, do not block air intakes or
exhaust in any manner. Do not use on soft surfaces, like a
bed, where openings may become blocked. Do not insert or
allow foreign objects to enter any ventilation or exhaust
opening as this may cause an electric shock, fire, or
damage the heater.
2

TROUBLESHOOTING:

PROBLEM PROBABLE CAUSE SOLUTION
Heater will Heater is not plugged Ensure unit is in OFF position.
not power into a 120V polarized- Plug in unit and attempt to turn
on. outlet/receptacle. on again.
Breaker/fuse has Please check your electrical box
been tripped to confirm the breaker has not
been blown. This may occur if the
unit is sharing a receptacle with
another high power consuming
appliance. Ensure unit is in OFF
position. Plug in unit and attempt
to turn on again. Attempt to plug
unit into another independent
output in the house.
The power- Room temperature has To resume heating, adjust
indicator light been warmed up to thermostat to a higher setting.
is illuminated, thermostat setting.
but no heat
disperses
from the unit.
The fan only function At this setting, the unit will
is on. circulate the air but produce no
heat.
The heater is A drop of oil fell on the Ensure room in which heater is
creating a heating coil during the situated is well ventilated.
burning manufacturing process.
smell. lt will quickly evaporate
and should not occur
again.
Check and ensure Remove the combustible
there are no materials preventing air intake
combustible materials into the heater.
within 3' /1 m of the
heater.
Limited Warranty
This unit is guaranteed to the original retail purchaser against
defects in quality or workmanship for a period of one year
from the date of original purchase. lf this unit fails because of
a manufacturing defect within 30 days of purchase, return the
unit, with your receipt to the retailer. After 30 days, but within
the warranty period, if the unit was purchased within the
continental United States, call 1-888-376-9601. If the unit was
purchased outside the continental United States, return the
unit to the place of purchase. This warranty does not cover
damage caused by misuse, abuse, over heating or alteration.
Repairs made by anyone other than Tractor Supply Co. are
not covered in this warranty.Tractor Supply Co.will not be
held liable for any losses due to neglectful operation. All
implied warranties, including the warranties of merchantabili-
ty and of fitness of purpose, if applicable, are hereby limited
4
8.50"
216mm
11.0"
280mm
