Summary of Contents for Lenovo Y25g-30

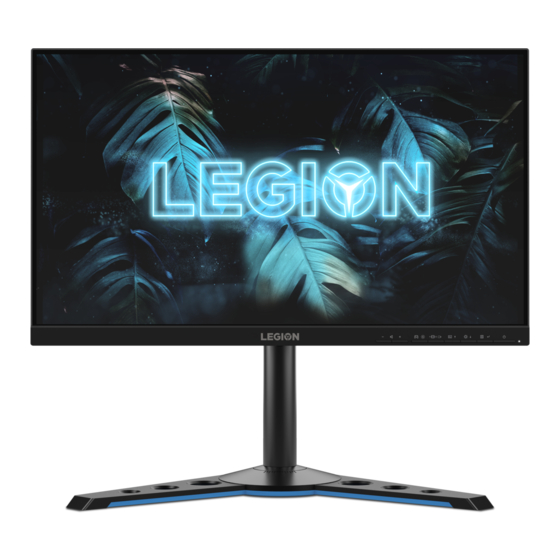

- Page 1 Y25g-30 Simplified service manual for dismantling Model Name: Lenovo Y25g-30...
- Page 2 Exploded Diagram...
- Page 3 1. Precaution Please read the precaution as follows to prevent any damages to the LCD Monitor. Make sure all power connector is removed. Be sure that the LCD Monitor is in power off status. Prepare soft cloth and sponge as working platform to place LCD monitor horizontally. Hold LCD by the side carefully and DON’T touch or press panel directly. ...
- Page 4 2. Appropriate tools Select the Appropriate tools for disassembly and re-assembly. Phillips screwdriver (#2) spacer screwdriver C/D disassembly tool Gloves or soft cloth ...
- Page 5 3. Disassembly SOP Starting from the back of the monitor, remove the stand assy Push the button to remove the stand-base assy Remove the screw*4pcs Tool : Screwdriver #2...
- Page 6 Disconnect the pin and take off the tapes. Then remove the screw*2pcs. Tool : Screwdriver #2 Disconnect the pins and remove the speakers Disconnect the pins to remove the key board and the B/L Cable...
- Page 7 Disconnect the pins to remove the mainframe. Remove the screw*8pcs Tool : Screwdriver #2 Separated the panel and the middle frame. The panel...
- Page 8 The middle frame Remove the screw*9pcs Tool: Screwdriver #2 Remove the pins and boards...
- Page 9 The mainframe The Rear Cover and the LED board...
