Power-Lite MS-12M-180 Installation Manual

Sensor Information
Height of installation: 1.8-2.5m
Testing the Sensor
Adjust the hold time using the time control on the side of the sensor to 10 seconds.
•
• Switch on the power; the sensor and its connected lamp will have no signal to start with.
After Warm-up 30sec, the sensor will work. If the sensor receives the induction signal, the lamp
will turn on. When there is no induction signal, the load should stop working within 10sec
±3sec and the lamp would turn off.
Turn LUX control clockwise to the minimum (3). If the ambient light is more than 3LUX, the sensor
•
will not be activated. If the ambient light is less than 3LUX (night time), the sensor will be
activated.
Note if testing during daylight, turn the lux control clockwise to the sun setting.
Troubleshooting
The load does not work:
•
a. Please check if the connection of power source and load is correct.
b. Please check if the load is ok.
c. Please check if the settings of on the sensor correspond to ambient light.
• The sensitivity is poor:
a. Please check if there is any obstruction in front of the detector that would cause the
sensor not to receive a signal.
b. Please check if the ambient temperature is too high.
c. Please check if the induction signal source is in the detection field.
d. Please check if the installation height corresponds to the height recommended in
the instruction leaflet.
• The sensor won't switch off the load automatically:
a. Please check if there is continual signal in the detection field.
b. Please check if the time delay is set to the maximum position.
1800 909 306
Detection Distance: Max.12m
nedlandsgroup.com.au
sales@nedlandsgroup.com.au
Certainty at The Speed of Light
INSTALLATION
MANUAL

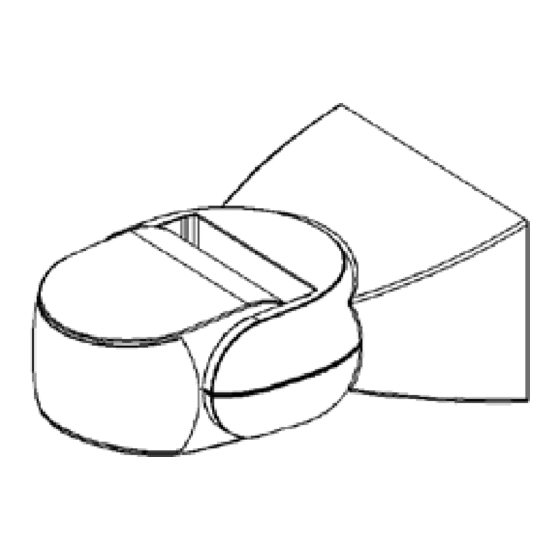

INFRARED MOTION
SENSOR
MS-12M-180
