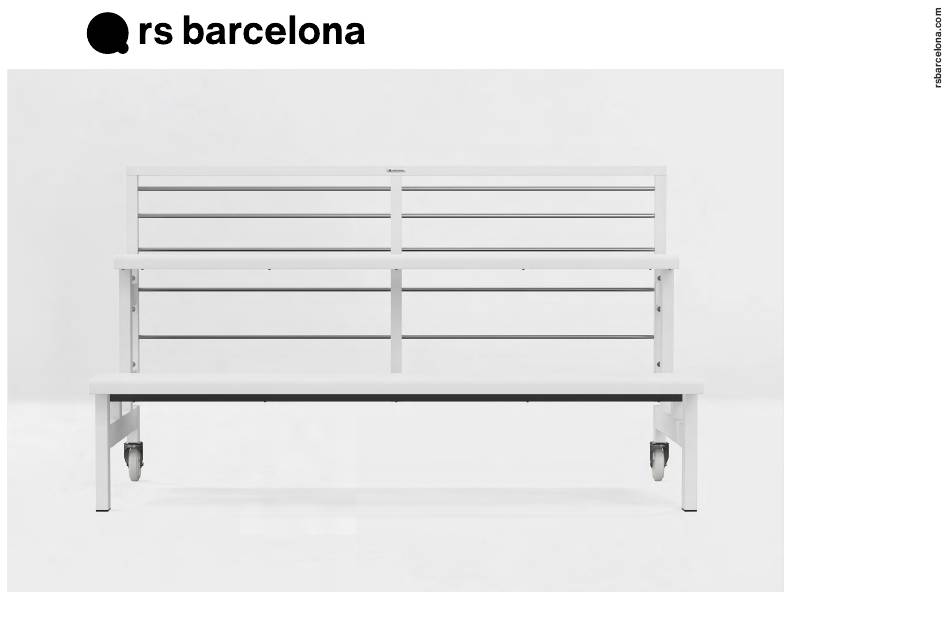

Crew Stand user manual manual de usuario asemmbly instructions-care and maintenance instrucciones de montaje-cuidado y matenimiento...
Page 2
In a world full of options, we wanted to take a moment and say thanks for choosing us. We hope you enjoy it and spend many intense living moments with it and your loved ones. Take a picture with your product, post it on Instagram with #rsbarcelonacrew tag, follow us on our social media and we will send you a little gift.
included pieces piezas incluídas assembly tools | herramientas montaje screws and washers | tornillos y arandelas x 20 u M10 x 60mm (2 23/64”) x 12 u x 16 u M5 x 16mm M8 x 16mm x 20 u (5/8”) (5/8”) M10 Ø30mm (1 3/16”)
Page 5
included pieces piezas incluídas seat ledge | asiento side flaps | tapetas laterales 9.6 in | 246 mm 13.6 in | 346 mm x 4 u x 2 u 78.7 in | 2000 mm x 2 u footrest ledge | reposapiés anchoring bracket | anclaje 78.7 in | 2000 mm x 4 u...
Page 6
• All parts included with the stand are to be used. No extras are included. • Do not try to assemble the crew on your own, you will need help to turn it over. • Keep all packaging items until the product is fully assembled.
Page 7
assembly montaje 2 people | 2 personas Place the back structure on a blanket or cardboard on a flat surface. Coloca la estructura trasera sobre una manta o cartón en una superficie plana. rsbarcelona.com...
Page 8
assembly montaje 2 people | 2 personas Place all 4 anchoring brackets using 8 screws (2 screws for each bracket). Coloca los 4 anclajes usando 8 tornillos (2 tornillos para cada anclaje). rsbarcelona.com...
Page 9
assembly montaje 2 people | 2 personas Fix the 2 leg set to the anchoring brackets using 8 screws (4 screws for each leg’s set). Fija los 2 conjuntos de patas a los anclajes usando 8 tornillos (4 tornillos por conjunto de patas). rsbarcelona.com...
Page 10
assembly montaje 2 people | 2 personas Turn the stand into its upright position. Levanta la grada a su posición vertical. Set the wheel brakes to ensure that the stand does not move during the remainder of assembly. Frena las ruedas para evitar que se mueva durante el resto del montaje.
Page 11
assembly montaje 2 people | 2 personas Place the seat ledge located at the top. Coloca el asiento ubicado en la parte superior. rsbarcelona.com...
Page 12
assembly montaje 2 people | 2 personas Fix the seat ledge located at the top using 8 screws and 8 washers (4 per side). Fija el asiento ubicado en la parte superior usando 8 tornillos y 8 arandelas (4 por cada lado). Do not thigh the screws too much until you have placed both seat ledges and the footrest ledge (steps 5 to 7).
Page 13
assembly montaje 2 people | 2 personas Place the footrest ledge. Coloca el reposapiés. rsbarcelona.com...
Page 14
assembly montaje 2 people | 2 personas Fix the footrest ledge using 4 screws and 4 washers (2 per side). Fija el reposapiés usando 4 tornillos y 4 arandelas (2 por cada lado). Do not thigh the screws too much until you have placed both seat ledges and the footrest ledge (steps 5 to 7).
Page 15
assembly montaje 2 people | 2 personas Place the seat ledge located at the lower section. Coloca el asiento ubicado en la parte inferior. rsbarcelona.com...
Page 16
assembly montaje 2 people | 2 personas Fix the seat ledge located at the lower section using 8 screws and 8 washers (4 per side). Fija el asiento ubicado en la parte inferior usando 8 tornillos y 8 arandelas (4 por cada lado). Do not thigh the screws too much until you have placed both seat ledges and the footrest ledge (steps 5 to 7).
Page 17
assembly montaje 2 people | 2 personas Once the seat and footrest ledges are placed correctly, remember to tighten all the screws before fix the side flaps. Place and fix the seats and step ledge side flap using all 12 screws (2 per flap). Una vez colocados los asientos y el reposapiés, recuerda apretar todos los tornillos antes de colocar las tapetas laterales.
RS Barcelona products are manufactured of high-quality For maximum resistance to corrosion, steelsurfaces must attractive silver- grey tone. materials to last over time. Although age can catch up always be kept clean. This maintenance must be tailored...
Los productos RS Barcelona están fabricados con corrosión. Cuando el producto esté extremadamente sucio, con materiales de alta calidad para resistir y perdurar en manchas, incrustaciones o muestras de decoloración el tiempo. Aunque los años no perdonan, es posible Para una buena conservación de las piezas...
Page 20
Products which do not conform to the description or which are defective in material or manufacturing will be replaced, repaired or, at RS Barcelona’s choice, credited for their original purchase price. RS Barcelona must be notified of such defect with graphic evidence and description. rsbarcelona.com...
Page 21
Quedan excluidos de esta garantía los siguientes conceptos: • El coste del envío de las piezas defectuosas. Ajustar los tornillos del producto periódicamente para Todos los productos de RS Barcelona tienen una garantía • El viaje o traslado de un profesional técnico evitar que se aflojen.
Page 22
· En el caso de que también detectes desperfectos en • Once the claim/return is accepted by el embalaje también será necesario que nos remitas las RS Barcelona, we will contact you to proceed with the fotografías correspondientes. pick-up/replacement of the product.
Page 23
If you come to Si vienes a If you come to Barcelona do not forget to visit our showroom! Si vienes a Barcelona ¡No olvides visitar nuestro showroom! C/ Còrsega 365 08037 - Barcelona SPAIN Tel. +34 936 58 95 03 info@rsbarcelona.com rsbarcelona.com Jardins de...
