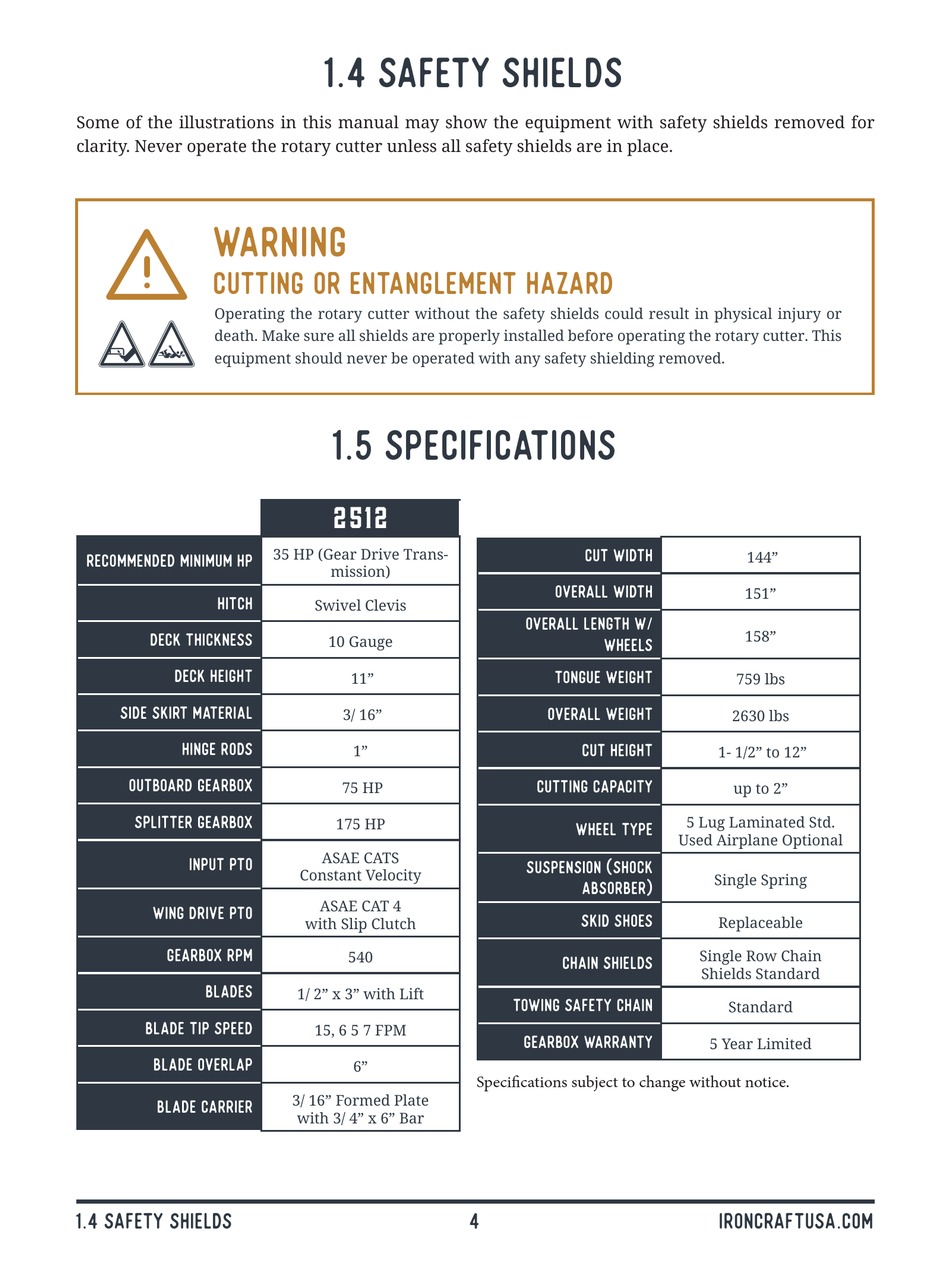

Safety Shields; Specifications - IronCraft 2512 Series Operation And Parts Manual

Some of the illustrations in this manual may show the equipment with safety shields removed for
clarity. Never operate the rotary cutter unless all safety shields are in place.
WARNING
CUTTING OR ENTANGLEMENT HAZARD
Operating the rotary cutter without the safety shields could result in physical injury or
death. Make sure all shields are properly installed before operating the rotary cutter. This
equipment should never be operated with any safety shielding removed.
RECOMMENDED MINIMUM HP
Hitch
Deck Thickness
Deck Height
Side Skirt Material
Hinge Rods
Outboard Gearbox
Splitter Gearbox
Input PTO
Wing Drive PTO
Gearbox RPM
Blades
Blade Tip Speed
Blade Overlap
Blade Carrier

1.4 Safety Shields

1.4 SAFETY SHIELDS

1.5 SPECIFICATIONS

2512
35 HP (Gear Drive Trans-
mission)
Swivel Clevis
10 Gauge
11"
3/ 16"
1"
75 HP
175 HP
ASAE CATS
Constant Velocity
ASAE CAT 4
with Slip Clutch
540
1/ 2" x 3" with Lift
15, 6 5 7 FPM
6"
3/ 16" Formed Plate
with 3/ 4" x 6" Bar
Cut Width
Overall Width
Overall Length w/
Wheels
Tongue Weight
Overall Weight
Cut Height
Cutting Capacity
Wheel Type
Suspension (Shock
Absorber)
Skid Shoes
Chain Shields
Towing Safety Chain
Gearbox Warranty
Specifications subject to change without notice.
4
144"
151"
158"
759 lbs
2630 lbs
1- 1/2" to 12"
up to 2"
5 Lug Laminated Std.
Used Airplane Optional
Single Spring
Replaceable
Single Row Chain
Shields Standard
Standard
5 Year Limited
