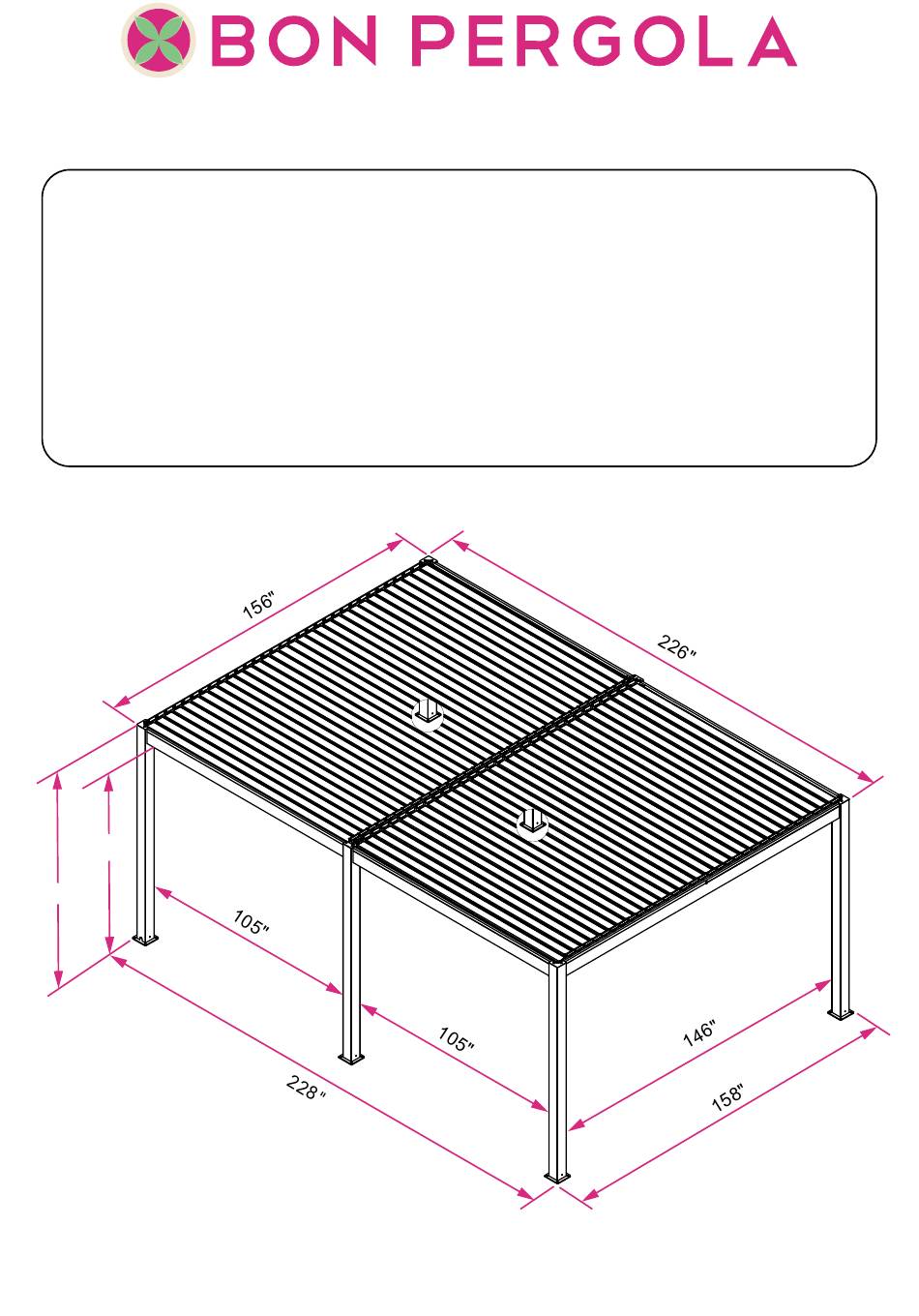

- Page 1 User Instructions Villa Pergola for motorized operation Size: Size: 13’x19’ Double Bay ( 400 x 600cm ) *Please visit www.bonpergola.com for the latest instruction under Q&A section* Size: 13’x19’ 97 1/2" 104" v2023.01...
-
Page 2: Table Of Contents
Content Tools and man force ................3 Parts List....................4 Product Description................5 Safety Instruction..................6 Mounting....................7-18 Dismounting...................20 Storage....................20 Disposal....................20 Attention: Read this instruction manual carefully and completely before mounting and usage. Keep this manual for future reference. Dear Customer, Congratulations and welcome to our Villa Pergola family. To enjoy your Villa Pergola for its lifetime and for you and other’s safety, please follow the assembly instructions. -
Page 3: Tools And Man Force
Tools and man force Recommended: 2 or 3 people Additional tools : 1. Ladder 2. M10/13 open wrench supplied 3. Rubber mallet 4. Tape measure 5. 5mm hexagon wrench supplied 6. Pencil 7. Spirit level >1.5m 8. Electric drill Parts List *Please check all parts against the parts list before commencing construction of pergola.* SIZE: 13’x19’... -
Page 4: Parts List
Parts List *Please check all parts against the parts list before commencing construction of pergola.* Beam Beam Louver beam with Motor connection holes Louver beam with Motor connection holes Center Beam Gutter Gutter Gutter Post + post connector Common louver Center louver Driving louver Connecting rod... - Page 5 Aluminum profile parts list Beam Center Beam Beam Louver beam with Motor connection holes Louver beam with Motor connection holes Gutter Gutter Post + post connector Gutter...
-
Page 6: Product Description
Product Description: Make the most of your outdoor living area with your pergola. Relax and enjoy the outdoors while being protected from sun. The coated aluminum frame pergola is perfect for shading your garden, deck, courtyard and swimming pool. Important Safety Instructions: Warning: For the safety of you and other persons it is important to follow below instructions and obey warnings. -
Page 7: Mounting
Step 1 ③ Attach base plate x6 to the bottom of posts ( x2), ① use bolts x24 to attach with hex key or electric drill. & & & posts should be installed diagonally as below. Please make sure all posts on the same horizontal plane. Optional M8x20 countersunk screw Footing plate cover... - Page 8 Step 2 Attach beam x2 ,beam x2 ,beam x1,beam x1 , ⑥ Center Beam x1,use bolts x32 to fasten. Beam Center Beam Beam M8x20 Hexagon bolt Louver beam with Motor connection holes Louver beam with Motor connection holes A4 before A3...
- Page 9 Step 3 ⑥ Use bolts x4 to fasten both sets of beam & beam ***Note: This process is extremely important to ensure the structure is stable. M8x20 Hexagon bolt...
- Page 10 Step 4 ④ ⑥ Attach upright cover x4,use bolts x8 to fasten M8x20 Hexagon bolt Upright cover...
- Page 11 Step 5 ⑨ ⑩ 1.Slide the motor into gutter before hooking onto & beam in the direction as shown below. 2.Attach all eight gutters x2 by hooking inside the beams. Gutter Gutter Gutter Motor with motor bracket...
- Page 12 Step 6 1. Fasten x4 gutter connector (x6 for certain model) Optional: Put self tapping screw through the gutter into the the beam afterward to further secure. 2. If motor wire is running downward through the post, use to connect with shown below to not allow water drain through this post.
- Page 13 Step 7 ⑨ ⑩ Fasten motor x1 + x1 with its screws as shown below. Motor with motor bracket...
- Page 14 Step 8 Connect the female and male plugs for the LED lighting (DC24V to DC24V) and motor (DC24V to DC24V) and Plug the power cable into local socket. ***Note: You can test your motor at this stage. Plug in and use its remote. Motor with motor bracket Poqwe plug Poqwe plug...
- Page 15 Step 9 1. Located holes in center of beams( 2. Place Center Louver into center hole/slot which on beam lining up with the holes for 13’ x19’ (600*400 cm) size. ⑤ 3. Use M10 nut x2 to secure the Center Louver in place 4.
- Page 16 Step 10 x 4 (flat L-shaped aluminum profile). One for each side on the louvers is required. ⑥ ⑦ ⑧ Use bolt x128, plastic spacer x128 and nut x128 to tighten for 600X400cm size. Secure the louvers at each end. ***NOTE: 1.
- Page 17 Step 11 *Check for cross diagonal distance A are equal. *Check for diagonal distance in between the posts B and C are equal. *Please note, this step is very important to ensure the pergola are in a rectangle shape in any angle. It’s extremely important if you are installing a screen before anchor the pergola down or afterward.
- Page 18 Step 12 ⑪ Mark holes for Wedge Anchor/Bolt x24 for each post Note the drill size should be 12 mm. Insert the bolts. Use a hammer drill if necessary. Place the posts over the bolts. Tighten the nuts. Once installed, make sure any remaining plastic is removed and silicone is used along all corners and gutters to be waterproof.
- Page 19 Motor set up 1.Function and Features ※ 86mm*86mm, in accordance with international installation standard; ※ The electric structure is partial conformity with the standard fire protection requirement of the electrician; ※ Industrial grade microcomputer chip is used to improve product quality and reliability greatly; ※...
-
Page 20: Dismounting
Dismounting If you want to disassemble the Pergola, please follow the following process. Attention! At least two people are needed for this step. • Keep the Pergola louvers open before you begin with dismounting. Bind the Louvers of the Pergola together to avoid unintended unfolding. This might cause damage and injury. You can use the protection band that was fixed on the Pergola when purchasing it.
