FlexGuard 5853AP Wireless Glassbreak Detector Installation Instructions
Refer to Supplemental Information (next page) for complete descriptions of these installation steps

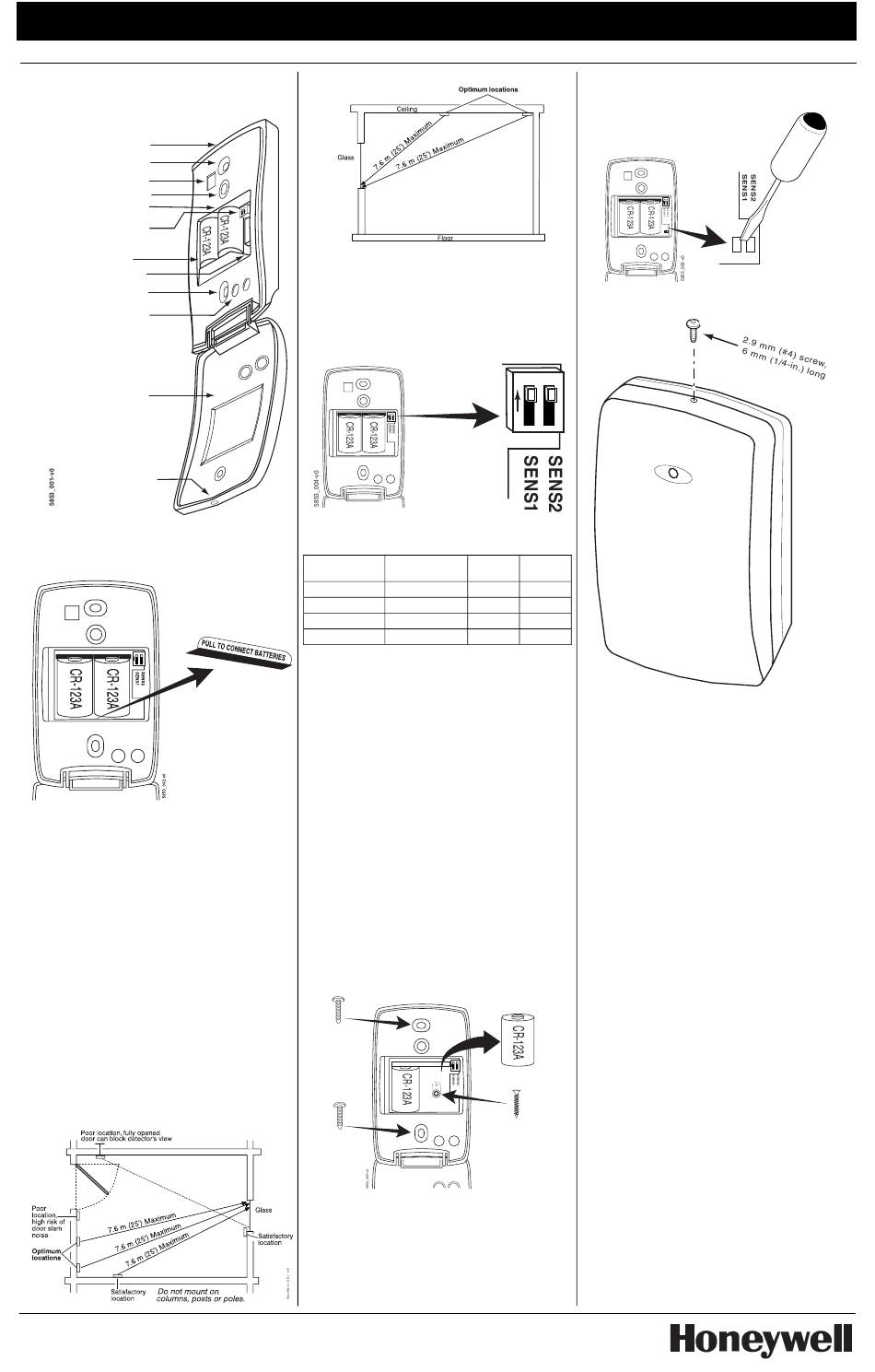

5853AP Glassbreak Detector Internal
Parts
Latch
Mounting Hole
Front Tamper Switch
Microphone
Wall Tamper (behind battery)
Sensitivity Switches
Batteries
Test Mode pads (on PCB)
Mounting Hole
LED Indicators
Front Cover
Break out flash
for cover screw
Connect Batteries
Remove pull tab to connect batteries
Select Mounting Location
For the best detector performance, select a mounting
location that is:
• within 7.6 m (25 feet) of the protected glass;
• within clear view of the protected glass;
• at least 2 m (6.5 feet) from the floor;
• at least 1 m (3.3 feet) from forced air ducts;
• at least 1 m (3.3 feet) from sirens or bells greater
• than 5 cm (2 inches) in diameter.
• between the protected glass and any heavy
window coverings that may be present.
Alternatively, when heavy window coverings are
present, the detector can be mounted on the frame
of the window.
Avoid mounting the detector on the same wall as the
protected glass, on free-standing posts or pillars, or in
rooms with noisy equipment (air compressors, bells,
power tools, etc.), if this equipment is operated when
the detector is armed.
Wall Mount
(Top View)
800-04905A
Ceiling Mount: (Side View)
NOTE: If the device is ceiling mounted, the end with the
hole (Microphone end) should face the protected glass.
Set Sensitivity (Range)
SENS1 & SENS2 configure sensitivity
SENSITIVITY
APPROXIMATE
RANGE
MAX 7.6m (25 ft)
MEDIUM 4.6m (15 ft)
LOW 3m (10 ft)
LOWEST 1.5m (5 ft)
NOTE: Ranges are approximate and vary with each
room's acoustic properties. Always verify range with a
FlexGuard FG-701 Glassbreak Simulator.
Enroll Detector
Refer to text and control panel's installation
instructions.
When programming the transmitter, specify:
• Input Type = 3 (Supervised RF)
• Loop Number = 1
Mount Detector
• Use mounting holes as a template to mark
mounting locations on ceiling or wall.
• If using the optional back tamper, remove the
batteries, then mark the wall tamper location
through its mounting hole.
• Mount detector using appropriate hardware.
NOTE: A screw capture feature designed to
make ceiling mounting easier will cause some
resistance when inserting the screw into the
plastic.
• Close detector cover when finished.
3.5 mm x 38 mm
(#6 x 1-1/2")
*3.5 mm (#6)
screws works best
with the screw
retention feature.
3.5 mm x 38 mm
(#6 x 1-1/2")
*The screw retention feature simplifies installation: A
rib in the screw cavity lightly holds the screw in place
when installing the detector.
Test Detector Installation
Enter Test Mode using a FlexGuard FG-701
Glassbreak Simulator (see Testing the Detector on the
Page 1
next page). To enter Test Mode manually, short the
Test Mode pads (as shown below).
CeilingMnt-001-V0
Install Cover Screw (optional)
ON
OFF
SENS1 SENS2
OFF OFF
ON OFF
OFF ON
ON ON
#6 (3.5 mm) screw for
Optional Rear Tamper
(Screw not supplied.)
To work properly, the back tamper
screw must be screwed into a
framing stud or a heavy-duty
hollow-wall anchor, such as a
#8 self-tapping anchor. This type
of back tamper is not suitable for
use on acoustic ceiling tile.
TEST
TEST
5853_006-V1
