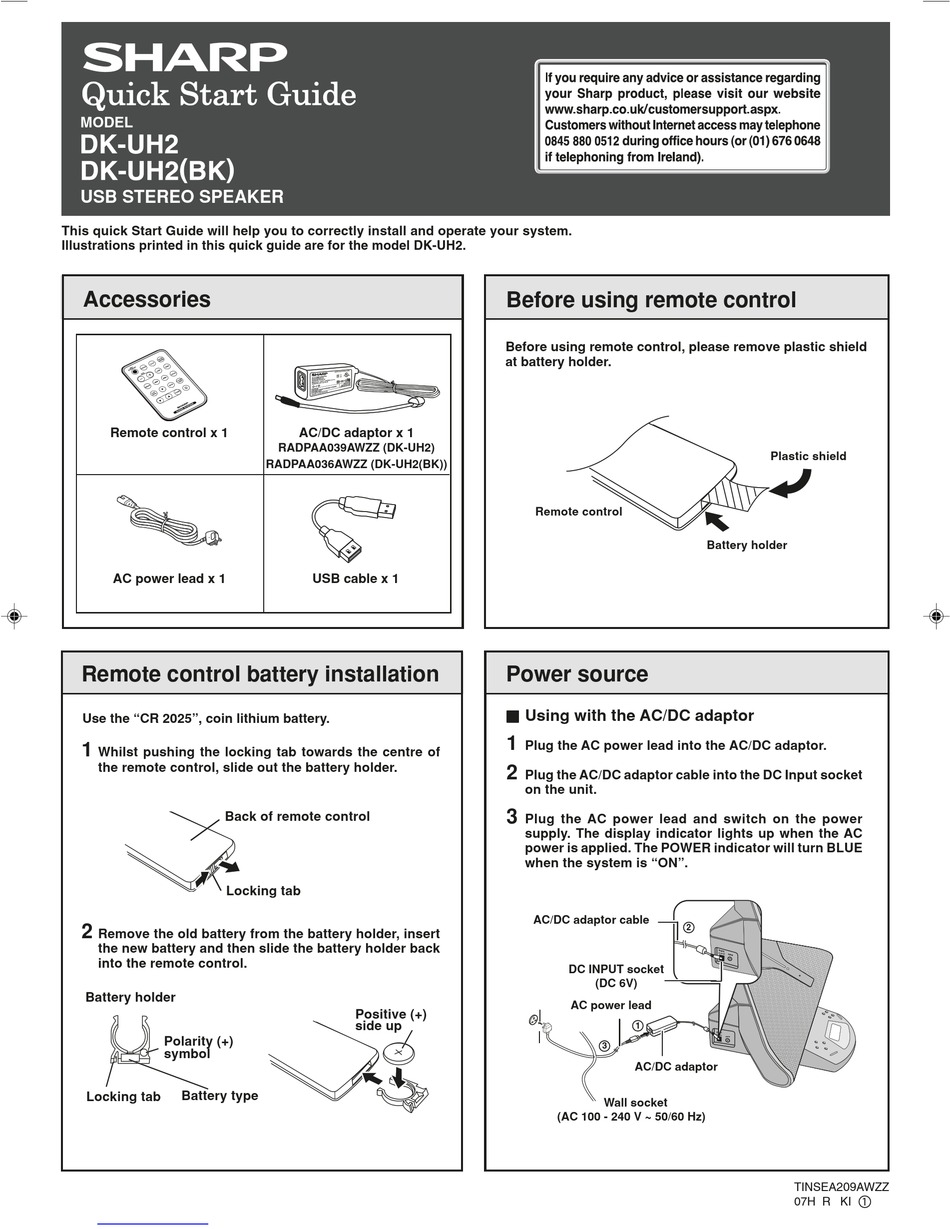

Sharp DK-UH2 BK Quick Start Manual

MODEL
DK-UH2
USB STEREO SPEAKER
This quick Start Guide will help you to correctly install and operate your system.
Illustrations printed in this quick guide are for the model DK-UH2.
Accessories
Remote control x 1
AC power lead x 1
Remote control battery installation
Use the "CR 2025", coin lithium battery.
1
Whilst pushing the locking tab towards the centre of
the remote control, slide out the battery holder.
Back of remote control
Locking tab
2
Remove the old battery from the battery holder, insert
the new battery and then slide the battery holder back
into the remote control.
Battery holder
Polarity (+)
symbol
Battery type
Locking tab
AC/DC adaptor x 1
RADPAA039AWZZ (DK-UH2)
RADPAA036AWZZ (DK-UH2(BK))
USB cable x 1
Positive (+)
side up
Before using remote control
Before using remote control, please remove plastic shield
at battery holder.
Remote control
Power source
H H H H H Using with the AC/DC adaptor
1
Plug the AC power lead into the AC/DC adaptor.
2
Plug the AC/DC adaptor cable into the DC Input socket
on the unit.
3
Plug the AC power lead and switch on the power
supply. The display indicator lights up when the AC
power is applied. The POWER indicator will turn BLUE
when the system is "ON".
AC/DC adaptor cable
DC INPUT socket
(DC 6V)
AC power lead
1
3
AC/DC adaptor
Wall socket
(AC 100 - 240 V ~ 50/60 Hz)
Plastic shield
Battery holder
2
TINSEA 209 AWZZ
07H R KI 1
